So you’re now that one cool kid at school rofl.
Sharp version:
(shaders_slang\presets\crt-geom-ntsc-composite-sharp.slangp
parameter -1 no fringing/artifacting, brightness 1.0)
3 Likes
I switched to custom w/no artifacting, looks really good. This is what composite with a good comb filter looks like. I just like to lighten the scanlines a bit to give it a more consumer-grade feel. Still tweaking brightness and gamma, though. Grade’s Sega Luma Fix is really essential for Sega games but I can’t figure out how to add it to crt-geom.
shaders = "4"
shader0 = "shaders_slang/ntsc/shaders/ntsc-adaptive/ntsc-pass1.slang"
filter_linear0 = "false"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "true"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "4.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/ntsc/shaders/ntsc-adaptive/ntsc-pass2.slang"
filter_linear1 = "false"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = ""
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "0.500000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/misc/white_point.slang"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = ""
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
shader3 = "shaders_slang/crt/shaders/crt-geom.slang"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
alias3 = ""
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
quality = "-1.000000"
wp_red = "0.050000"
monitorgamma = "1.800000"
CURVATURE = "0.000000"
cornersize = "0.001000"
DOTMASK = "0.000000"
lum = "0.350000"
8 Likes
w/Blargg’s filter:

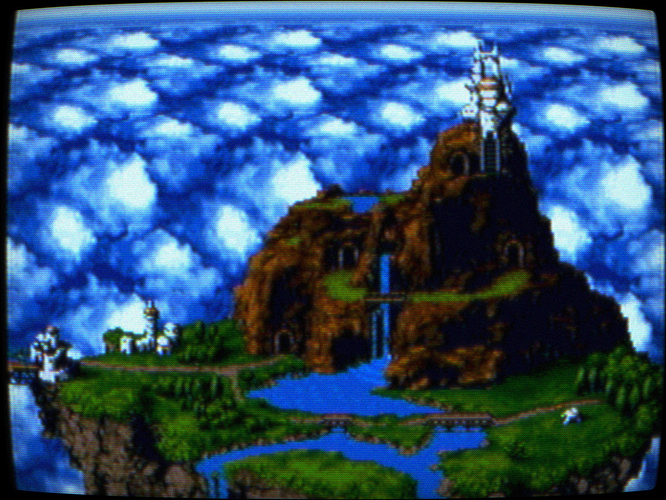

Reference shot, slot mask TV:
w/Blargg’s filter
To make the mask darken every third pixel, find this line in the shader file:
pos.x = fract(pos.x/2.0);
Replace the 2 with a 3.
“Consumer”:
shaders = "12"
shader0 = "shaders_slang/misc/grade.slang"
filter_linear0 = "false"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear1 = "false"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = "StockPass"
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = "AfterglowPass"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear3 = "false"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "true"
alias3 = "PrePass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/avg-lum.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "true"
alias4 = "AvgLumPass"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/linearize.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "LinearizePass"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear6 = "true"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = ""
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "absolute"
scale_x6 = "800"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = "GlowPass"
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "absolute"
scale_x7 = "800"
scale_type_y7 = "absolute"
scale_y7 = "600"
shader8 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = ""
float_framebuffer8 = "true"
srgb_framebuffer8 = "false"
scale_type_x8 = "absolute"
scale_x8 = "800"
scale_type_y8 = "absolute"
scale_y8 = "600"
shader9 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = "BloomPass"
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
alias10 = ""
float_framebuffer10 = "false"
srgb_framebuffer10 = "false"
scale_type_x10 = "viewport"
scale_x10 = "1.000000"
scale_type_y10 = "viewport"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/deconvergence.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
alias11 = ""
float_framebuffer11 = "false"
srgb_framebuffer11 = "false"
scale_type_x11 = "viewport"
scale_x11 = "1.000000"
scale_type_y11 = "viewport"
scale_y11 = "1.000000"
g_crtgamut = "0.000000"
g_vignette = "0.000000"
WP = "-100.000000"
glow = "0.000000"
brightboost = "1.500000"
brightboost1 = "1.500000"
gsl = "-1.000000"
scanline1 = "9.000000"
scanline2 = "9.000000"
beam_min = "1.000000"
beam_size = "0.000000"
scans = "0.500000"
spike = "0.000000"
h_sharp = "3.000002"
s_sharp = "1.000000"
shadowMask = "7.000000"
maskstr = "0.350000"
mcut = "0.350000"
slotmask = "0.350000"
slotwidth = "3.000000"
mclip = "1.000000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_linear = "true"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_linear = "true"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_linear = "true"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_linear = "true"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"
4 Likes
The images look great! Now let’s see if I can make it work. Do you know why when I copy the values that Nesguy gives, I get an error? I have all the slang he mentions in the text and in the same directories… Thanks in advance and excuse my clumsiness.
2 Likes
might help to see an error log, go to settings -> logging to enable. It will generate a file in the “logs” directory.
1 Like
going for maximum beam width variation and brightness this time.
shaders = "12"
shader0 = "shaders_slang/misc/grade.slang"
filter_linear0 = "false"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear1 = "false"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = "StockPass"
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = "AfterglowPass"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear3 = "false"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "true"
alias3 = "PrePass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/avg-lum.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "true"
alias4 = "AvgLumPass"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/linearize.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "LinearizePass"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear6 = "true"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = ""
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "absolute"
scale_x6 = "800"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = "GlowPass"
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "absolute"
scale_x7 = "800"
scale_type_y7 = "absolute"
scale_y7 = "600"
shader8 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = ""
float_framebuffer8 = "true"
srgb_framebuffer8 = "false"
scale_type_x8 = "absolute"
scale_x8 = "800"
scale_type_y8 = "absolute"
scale_y8 = "600"
shader9 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = "BloomPass"
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
alias10 = ""
float_framebuffer10 = "false"
srgb_framebuffer10 = "false"
scale_type_x10 = "viewport"
scale_x10 = "1.000000"
scale_type_y10 = "viewport"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/deconvergence.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
alias11 = ""
float_framebuffer11 = "false"
srgb_framebuffer11 = "false"
scale_type_x11 = "viewport"
scale_x11 = "1.000000"
scale_type_y11 = "viewport"
scale_y11 = "1.000000"
g_crtgamut = "0.000000"
g_vignette = "0.000000"
WP = "-100.000000"
GAMMA_INPUT = "2.500000"
glow = "0.000000"
gamma_c = "1.700000"
brightboost = "1.000000"
brightboost1 = "1.999996"
gsl = "2.000000"
scanline1 = "20.000000"
scanline2 = "22.000000"
beam_min = "1.400000"
beam_max = "0.700000"
beam_size = "0.000000"
spike = "0.000000"
h_sharp = "5.000000"
s_sharp = "0.000000"
shadowMask = "-1.000000"
slotwidth = "1.000000"
gamma_out = "2.500000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_linear = "true"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_linear = "true"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_linear = "true"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_linear = "true"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"
1 Like
I think there’s a pretty strong case for composite video blending for SNES Squaresoft RPGs:
On the other hand, some games like Shining Force just look better through RGB. There’s no evidence of any real blending being used by the artist(s) in this scene, composite just results in a loss of image quality.
4 Likes
It’d be interesting to see a list of which games benefited from which input method, but also unrealistic that such a list would happen for multiple reasons.
1 Like
I just got around to downloading the latest guest shader update and with that comes another tweak:
shaders = "10"
shader0 = "shaders_slang/crt/shaders/crtsim/composite.slang"
filter_linear0 = "true"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/misc/grade.slang"
filter_linear1 = "true"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = "PrePass"
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/avg-lum.slang"
filter_linear2 = "true"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "true"
alias2 = "AvgLumPass"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/linearize.slang"
filter_linear3 = "true"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
alias3 = "LinearizePass"
float_framebuffer3 = "true"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
alias4 = ""
float_framebuffer4 = "true"
srgb_framebuffer4 = "false"
scale_type_x4 = "absolute"
scale_x4 = "800"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "GlowPass"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "absolute"
scale_x5 = "800"
scale_type_y5 = "absolute"
scale_y5 = "600"
shader6 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear6 = "true"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = ""
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "absolute"
scale_x6 = "800"
scale_type_y6 = "absolute"
scale_y6 = "600"
shader7 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = "BloomPass"
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "1.000000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = ""
float_framebuffer8 = "false"
srgb_framebuffer8 = "false"
scale_type_x8 = "viewport"
scale_x8 = "1.000000"
scale_type_y8 = "viewport"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt/shaders/guest/advanced/deconvergence.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = ""
float_framebuffer9 = "false"
srgb_framebuffer9 = "false"
scale_type_x9 = "viewport"
scale_x9 = "1.000000"
scale_type_y9 = "viewport"
scale_y9 = "1.000000"
NTSCArtifactScale = "0.000000"
g_space_out = "3.000000"
wp_temperature = "8004.000000"
g_sat = "0.400000"
g_lift = "-0.040000"
interm = "5.000000"
bloom = "0.900000"
halation = "0.750000"
gamma_c = "1.400000"
gsl = "-1.000000"
h_sharp = "2.000000"
s_sharp = "0.000000"
BLOOM = "1.000000"
csize = "0.030000"
barspeed = "200.000000"
barintensity = "0.010000"
warpX = "0.040000"
warpY = "0.050000"
c_shape = "0.600000"
shadowMask = "7.000000"
maskstr = "0.750000"
maskDark = "0.000000"
maskLight = "1.000000"
mask_gamma = "1.600001"
slotmask = "0.750000"
slotmask1 = "0.750000"
slotwidth = "1.000000"
slotms = "2.000000"
deconrr = "0.750000"
deconrb = "-0.750000"
deconrry = "1.500000"
deconrby = "-1.500000"
decons = "-2.000002"
addnoised = "-0.300000"
textures = "MaskTexture;NTSCArtifactSampler;shadowMaskSampler;SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
MaskTexture = "shaders_slang/crt/shaders/mame_hlsl/resources/aperture-grille.png"
MaskTexture_wrap_mode = "clamp_to_border"
MaskTexture_mipmap = "false"
NTSCArtifactSampler = "shaders_slang/crt/shaders/crtsim/artifacts.png"
NTSCArtifactSampler_linear = "true"
NTSCArtifactSampler_wrap_mode = "clamp_to_border"
NTSCArtifactSampler_mipmap = "false"
shadowMaskSampler = "shaders_slang/crt/shaders/crtsim/mask.png"
shadowMaskSampler_linear = "true"
shadowMaskSampler_wrap_mode = "clamp_to_border"
shadowMaskSampler_mipmap = "false"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/lut/sony_trinitron1.png"
SamplerLUT1_linear = "true"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/lut/sony_trinitron2.png"
SamplerLUT2_linear = "true"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/lut/other1.png"
SamplerLUT3_linear = "true"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/lut/custom_lut.png"
SamplerLUT4_linear = "true"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"
8 Likes
Yoooo, that’s getting pretty close to a consumer crt using composite.
Tho I’m partial to the slotmask displays.
1 Like
Thank you I’m glad you like it. Try turning the composite parameter up to 0.50 it looks rather interesting that way as well although it might be a bit too much as I’ve raised the halation parameter up in this tweak. I fell for that slotmask look ever since guest posted up his shader settings one time, couldn’t stop using it since lol. I like how it makes Dreamcast 2d fighting games actually look playable now with the sprites somewhat meshing in together better with the 3d background and in general
1 Like
Depends, consumer CRTs via composite varied widely in quality. Compare a 2005 Wega using composite to an 80s low end TV.
This looks like a photo of a generic 13" TV via composite.
Using the composite pass from crtsim is cool though, I’m going to give that a try.
2 Likes
Yes please try out the composite pass, I encourage everyone to, it adds a magic to the overall look that you just can’t get without it and thank you for the compliment, so far this is the best shader combination I’ve used since I’ve started using Retroarch
It even gives you a parameter to play around with NTSC settings that I see you’ve been talking about lately. I turn off the NTSC Artifact Scale parameter but maybe you will find a way to play around with it
1 Like
it’s a bit too blurred out for my taste, personally, but that’s cool you’ve found something that you’re satisfied with. It’s a never-ending quest for me.
Those mask settings are interesting, too. I get really bad results with the same mask settings for some reason; I guess the scanline settings are also needed to make it look right.
Try raising the Composite Sharp or Subtractive sharpness parameter maybe it will look less blurred for you. I’m not sure why the mask looks bad for you, could be what you said or the type of display you’re using not sure. Yeah I’ll be sticking to these settings for a while, may raise or lower something here or there.
Is that a downscaled 4K shot? What scale are you using?
Yes it’s 4k downscaled. When you say scale you’re talking about the shader scale? If so it’s 1x for everything.
