I’ve created a preset for the NES. It prepends nes-color decoder, colorimetry, and pixellate before crt-guest-advanced and appends a scanline interpolation shader pass (also made by @guest.r)
It’s made for 4K but you can use it @1080p by changing the mask size to 1.
If using Mesen, for example, change the palette to RAW. It’s configured to use the Sony cxa2025as palette
The idea behind this preset is to create a bright, consumer TV preset that accurately mimics a Sony Trinitron TV.
First, you need this to be present in \RetroArch\shaders\shaders_slang\crt\shaders\guest (call it coarse.slang)
Coarse.slang
#version 450
layout(push_constant) uniform Push
{
vec4 SourceSize;
vec4 OriginalSize;
vec4 OutputSize;
uint FrameCount;
float dsize;
} params;
#pragma parameter dsize "Scanline dithering size" 1.0 0.0 2.0 0.10
#define dsize params.dsize // Dithering size
layout(std140, set = 0, binding = 0) uniform UBO
{
mat4 MVP;
} global;
#pragma stage vertex
layout(location = 0) in vec4 Position;
layout(location = 1) in vec2 TexCoord;
layout(location = 0) out vec2 vTexCoord;
void main()
{
gl_Position = global.MVP * Position;
vTexCoord = TexCoord;
}
#pragma stage fragment
layout(location = 0) in vec2 vTexCoord;
layout(location = 0) out vec4 FragColor;
layout(set = 0, binding = 2) uniform sampler2D Source;
void main()
{
vec2 tex = vTexCoord;
vec2 pos = tex * params.OutputSize.xy;
vec2 dy = dsize*vec2(0.0, params.OutputSize.w);
float mixer = floor(mod(pos.x,2.0));
tex = mix(tex + 0.0*dy, tex - dy, mixer);
FragColor = vec4(texture(Source, tex).rgb, 1.0);
}
Here’s my NES preset:
shaders = "16"
shader0 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear0 = "false"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/nes_raw_palette/shaders/nes-color-decoder.slang"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = ""
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
shader2 = "shaders_slang/misc/colorimetry.slang"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = ""
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
shader3 = "shaders_slang/interpolation/shaders/pixellate.slang"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
alias3 = ""
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
shader4 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear4 = "false"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
alias4 = "StockPass"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear5 = "false"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "AfterglowPass"
float_framebuffer5 = "false"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear6 = "false"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "true"
alias6 = "PrePass"
float_framebuffer6 = "false"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "1.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/avg-lum.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "true"
alias7 = "AvgLumPass"
float_framebuffer7 = "false"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "1.000000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt/shaders/guest/advanced/linearize.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = "LinearizePass"
float_framebuffer8 = "true"
srgb_framebuffer8 = "false"
scale_type_x8 = "source"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = ""
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "absolute"
scale_x9 = "800"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
alias10 = "GlowPass"
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "absolute"
scale_x10 = "800"
scale_type_y10 = "absolute"
scale_y10 = "600"
shader11 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
alias11 = ""
float_framebuffer11 = "true"
srgb_framebuffer11 = "false"
scale_type_x11 = "absolute"
scale_x11 = "800"
scale_type_y11 = "absolute"
scale_y11 = "600"
shader12 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear12 = "true"
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
alias12 = "BloomPass"
float_framebuffer12 = "true"
srgb_framebuffer12 = "false"
scale_type_x12 = "source"
scale_x12 = "1.000000"
scale_type_y12 = "source"
scale_y12 = "1.000000"
shader13 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced.slang"
filter_linear13 = "true"
wrap_mode13 = "clamp_to_border"
mipmap_input13 = "false"
alias13 = ""
float_framebuffer13 = "false"
srgb_framebuffer13 = "false"
scale_type_x13 = "viewport"
scale_x13 = "1.000000"
scale_type_y13 = "viewport"
scale_y13 = "1.000000"
shader14 = "shaders_slang/crt/shaders/guest/advanced/deconvergence.slang"
filter_linear14 = "true"
wrap_mode14 = "clamp_to_border"
mipmap_input14 = "false"
alias14 = ""
float_framebuffer14 = "false"
srgb_framebuffer14 = "false"
scale_type_x14 = "viewport"
scale_x14 = "1.000000"
scale_type_y14 = "viewport"
scale_y14 = "1.000000"
shader15 = "shaders_slang/crt/shaders/guest/coarse.slang"
wrap_mode15 = "clamp_to_border"
mipmap_input15 = "false"
alias15 = ""
float_framebuffer15 = "false"
srgb_framebuffer15 = "false"
nes_hue = "-20.000000"
nes_sony_matrix = "1.000000"
color_mode = "1.000000"
CP = "5.000000"
interm = "0.000000"
bloom = "0.300000"
halation = "0.150000"
gsl = "2.000000"
h_sharp = "4.000001"
s_sharp = "0.000000"
barintensity = "0.010000"
shadowMask = "6.000000"
masksize = "2.000000"
addnoised = "0.040000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/lut/sony_trinitron1.png"
SamplerLUT1_linear = "true"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/lut/sony_trinitron2.png"
SamplerLUT2_linear = "true"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/lut/other1.png"
SamplerLUT3_linear = "true"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/lut/custom_lut.png"
SamplerLUT4_linear = "true"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"
I am open to feedback because it is still a WIP.

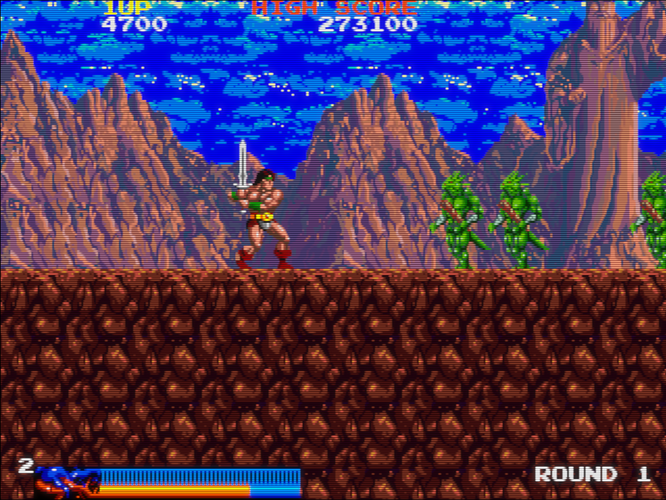

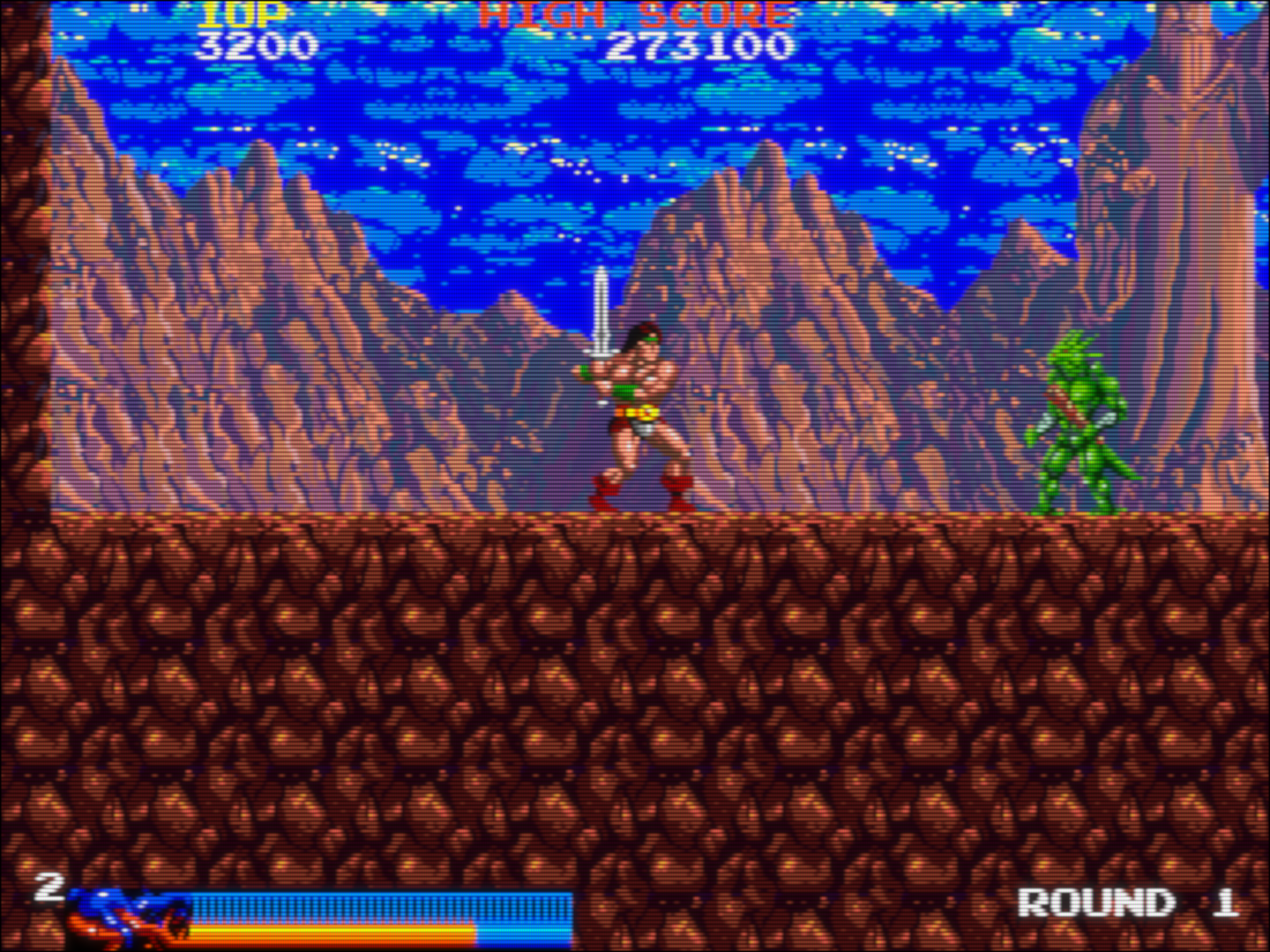

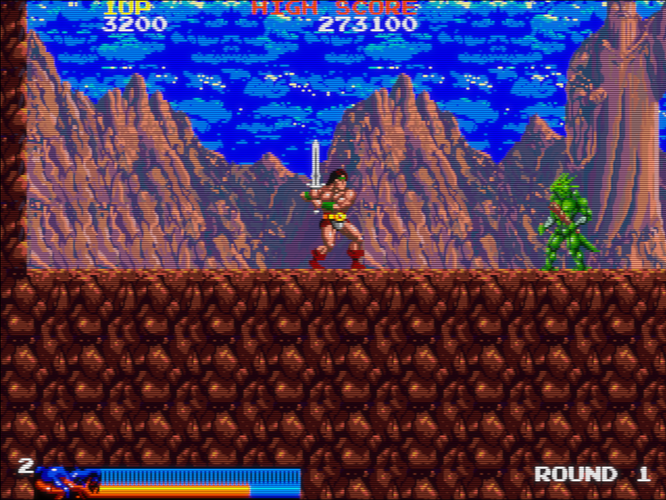

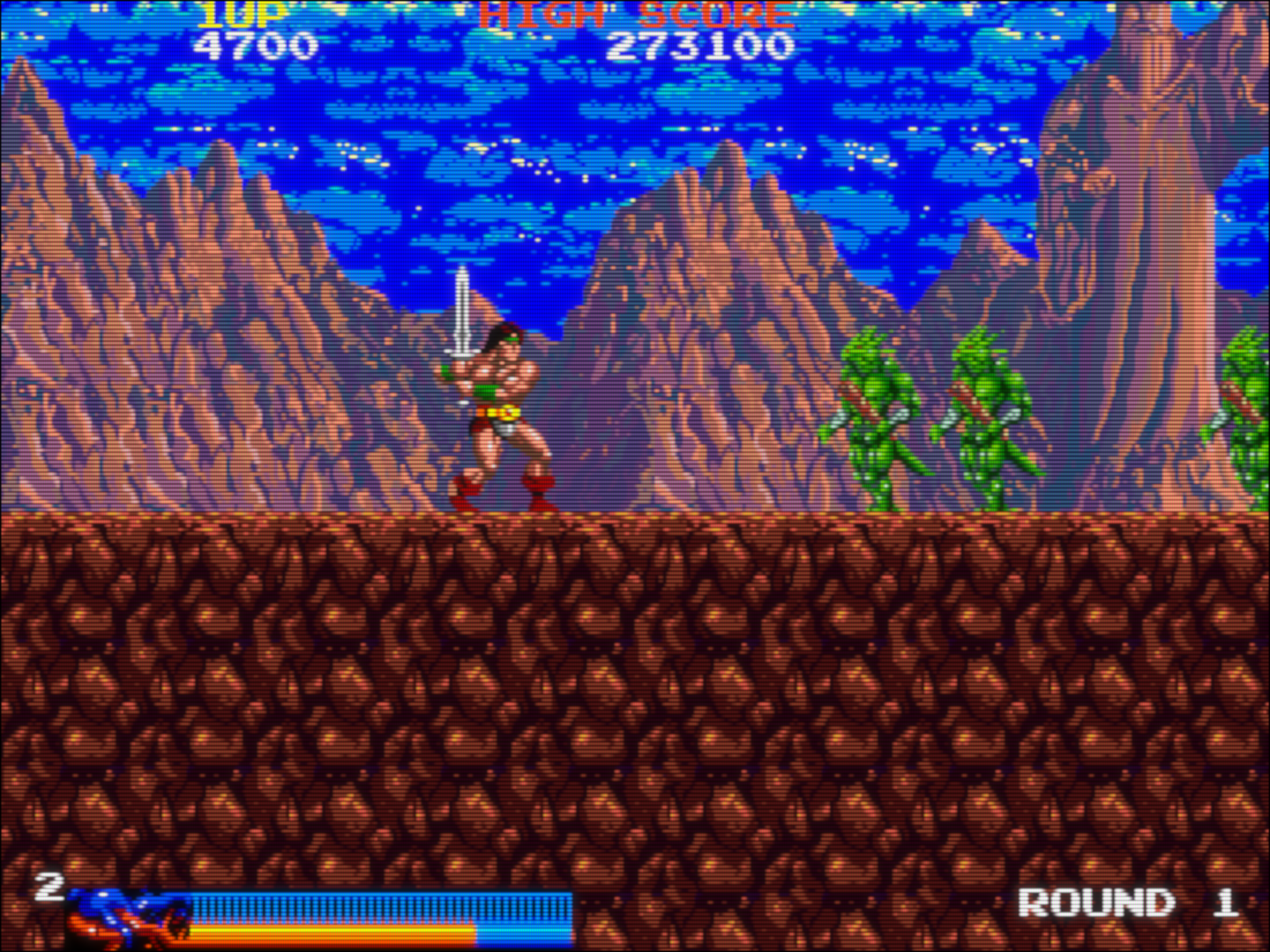

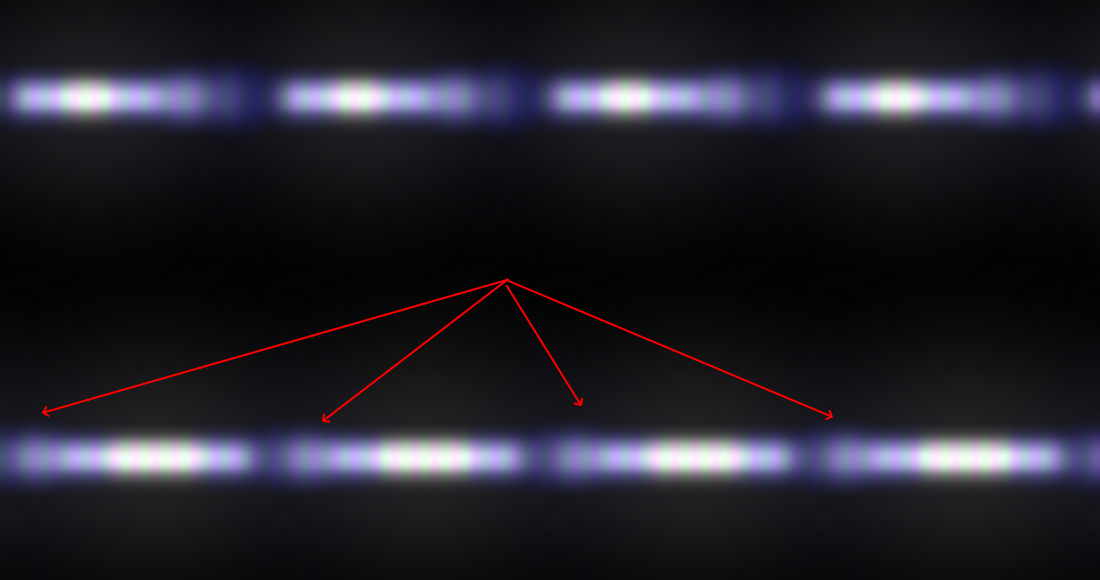

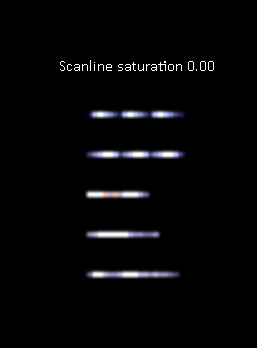

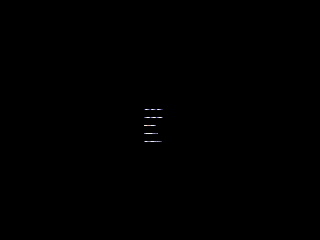

And i find some sort of achievements on enlarged patterns somewhat boring too. I already explained that linear space and math/color operations in it have it’s features, which are beneficial pro beam dynamics and most setups include beam dynamics. It’s a feature of the shader, integral part. But you’ve made your point i think, you can start a new thread if you want to continue ‘the testing’.
.
