RetroSignal - Sharing my personal presets for fun

It’s been a long time since I’ve shared the presets I use in my setup - like a really long time. So I thought I’d post these here and see if anyone might like to check them out. I’m really happy with how these work right now.

These are using (mostly) these three shaders:

  • NTSC-Colors
  • CRT-ResSwitch-Glitch-Koko
  • CRT-Guest-Advanced-NTSC

You may think the “NTSC-Colors” redundant in this chain but, man the colors look great. The blues just POP with these cyan tones that are to die for IMO.

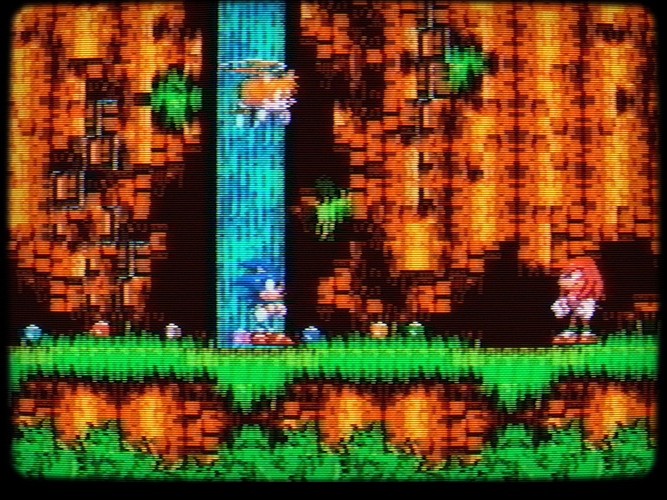

So, here’s some samples: *PLEASE NOTE: Images had to be downsized to fit on the forums. * *I did a simple 50% decrease. >.> * Not full quality, unfortunately

“0 - RAW”:

Literally just “stock.slang” saved as a preset. It’s only purpose is to compare ‘raw’ images with the shaders, but it’s cool to see side-by-side when scrolling presets.

“1 - RGB”

Lacking the NTSC colors shader, as well as the NTSC variant of CRT-Guest-Advanced. It’s just sharpened to a degree I thought looked good.

“2 - S-Video”

My absolute favorite! It blurs enough that transparency looks good, but everything still looks sharp. It also brings in the NTSC colors shader, which works ON TOP of the NTSC Lut that is in CRT-Guest-Advanced-NTSC. Combining them is kind of overkill, but omg colors of EVERYTHING look so so so so SO much better.

“3 - AV”

I started to muddy the signal, 2/3-phase is set to Auto, instead of forcing 3 like I did with S-Video. I also added just a tiny bit of fuzz in the signal. I also screwed up the deconvergence just a little bit.

“4 - RF”

I really like this one. It’s taking what I did to AV and cranking it up (down?) the picture is twice as fuzzy, the deconvergence is more extreme, the contrast and saturation are SLIGHTLY lowered - and I even through in an extremely subtle hum-bar that moves upward. I use this as the core-shader-preset on NES games and it feels AMAZING.

And, because I mentioned the blues, I thought this was a great way to show off what I meant:

“1 - RGB”:

Such dark blues…

“2 - S-Video”:

…now bright, wonderful skies!

Now, I’m sure that these don’t correctly match the signal presets I have named them, and I am happy to take feedback in that regard; but accuracy wasn’t a major goal here so much as “feel”. I just wanted it to feel like I could swap video signals on the fly, and I setup a hotkey to change shader presets with Select + Left/Right, and it works pretty great.

I did take an extra long amount of time trying to get these to be BRIGHT while still having pretty thick scanlines and shadow-mask on them however. I use these with my 50" Living Room TV at 4K w/ Black Frame Insertion at 120hz - and I’m pretty happy with the result considering I am not using HDR for them.

Credit, ALL credit, goes to the makers of the original shaders. I’m just having fun making presets off their hard work.

Anyway, here are the shader presets for your enjoyment - I recommend trying these out on all kinds of games. I really enjoyed how it made my GBA games look, for example. Which was unexpected.

IF you like what you see, and decide to try them out, please post some screenshots! I would love to see my presets on top of your favorite games <3

9 Likes

(Had to create repies to post the presets, I hit a character limit)

0 - Raw

shaders = "1"
shader0 = "shaders_slang/stock.slang"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "true"
srgb_framebuffer0 = "false"

1 - RGB

shaders = "13"
feedback_pass = "0"
shader0 = "shaders_slang/crt/shaders/crt-resswitch-glitch-koko.slang"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear1 = "false"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = ""
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = "StockPass"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear3 = "false"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
alias3 = "AfterglowPass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear4 = "false"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "true"
alias4 = "PrePass"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/avg-lum.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "true"
alias5 = "AvgLumPass"
float_framebuffer5 = "false"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/linearize.slang"
filter_linear6 = "true"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = "LinearizePass"
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "1.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = ""
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "absolute"
scale_x7 = "800"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = "GlowPass"
float_framebuffer8 = "true"
srgb_framebuffer8 = "false"
scale_type_x8 = "absolute"
scale_x8 = "800"
scale_type_y8 = "absolute"
scale_y8 = "600"
shader9 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = ""
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "absolute"
scale_x9 = "800"
scale_type_y9 = "absolute"
scale_y9 = "600"
shader10 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
alias10 = "BloomPass"
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "1.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
alias11 = ""
float_framebuffer11 = "true"
srgb_framebuffer11 = "false"
scale_type_x11 = "viewport"
scale_x11 = "1.000000"
scale_type_y11 = "viewport"
scale_y11 = "1.000000"
shader12 = "shaders_slang/crt/shaders/guest/advanced/deconvergence.slang"
filter_linear12 = "true"
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
alias12 = ""
float_framebuffer12 = "false"
srgb_framebuffer12 = "false"
scale_type_x12 = "viewport"
scale_x12 = "1.000000"
scale_type_y12 = "viewport"
scale_y12 = "1.000000"
CP = "-1.000000"
contr = "0.500000"
sega_fix = "1.000000"
vigstr = "0.200000"
interm = "4.000000"
m_glow = "2.000000"
m_glow_cutoff = "0.020000"
glow = "0.500000"
bloom = "-1.000000"
hmask1 = "1.000000"
brightboost = "1.999999"
gsl = "2.000000"
scanline1 = "40.000000"
scanline2 = "70.000000"
beam_size = "1.000000"
scan_falloff = "0.500000"
scangamma = "5.000000"
h_sharp = "15.000000"
s_sharp = "1.000000"
warpX = "0.030000"
warpY = "0.040000"
c_shape = "0.600000"
csize = "0.045000"
bsize1 = "0.400000"
shadowMask = "8.000000"
maskstr = "1.000000"
maskboost = "3.000000"
masksize = "3.000000"
mask_zoom = "-5.000000"
slotmask = "0.500000"
slotmask1 = "1.000000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"

2 - S-Video

shaders = "20"
feedback_pass = "0"
shader0 = "shaders_slang/misc/shaders/ntsc-colors.slang"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/crt-resswitch-glitch-koko.slang"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = ""
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = ""
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear3 = "false"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
alias3 = "StockPass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
alias4 = "AfterglowPass"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "PrePass0"
float_framebuffer5 = "false"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
filter_linear6 = "false"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = "NPass1"
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "4.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = ""
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "0.500000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = ""
float_framebuffer8 = "false"
srgb_framebuffer8 = "false"
scale_type_x8 = "source"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt/shaders/guest/advanced/custom-fast-sharpen.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = "NtscPass"
float_framebuffer9 = "false"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "true"
alias10 = "PrePass"
float_framebuffer10 = "false"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "1.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/avg-lum-ntsc.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "true"
alias11 = "AvgLumPass"
float_framebuffer11 = "false"
srgb_framebuffer11 = "false"
scale_type_x11 = "source"
scale_x11 = "1.000000"
scale_type_y11 = "source"
scale_y11 = "1.000000"
shader12 = "shaders_slang/crt/shaders/guest/advanced/linearize-ntsc.slang"
filter_linear12 = "true"
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
alias12 = "LinearizePass"
float_framebuffer12 = "true"
srgb_framebuffer12 = "false"
scale_type_x12 = "source"
scale_x12 = "1.000000"
scale_type_y12 = "source"
scale_y12 = "1.000000"
shader13 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
filter_linear13 = "true"
wrap_mode13 = "clamp_to_border"
mipmap_input13 = "false"
alias13 = "Pass1"
float_framebuffer13 = "true"
srgb_framebuffer13 = "false"
scale_type_x13 = "viewport"
scale_x13 = "1.000000"
scale_type_y13 = "source"
scale_y13 = "1.000000"
shader14 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear14 = "true"
wrap_mode14 = "clamp_to_border"
mipmap_input14 = "false"
alias14 = ""
float_framebuffer14 = "true"
srgb_framebuffer14 = "false"
scale_type_x14 = "absolute"
scale_x14 = "800"
scale_type_y14 = "source"
scale_y14 = "1.000000"
shader15 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear15 = "true"
wrap_mode15 = "clamp_to_border"
mipmap_input15 = "false"
alias15 = "GlowPass"
float_framebuffer15 = "true"
srgb_framebuffer15 = "false"
scale_type_x15 = "absolute"
scale_x15 = "800"
scale_type_y15 = "absolute"
scale_y15 = "600"
shader16 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear16 = "true"
wrap_mode16 = "clamp_to_border"
mipmap_input16 = "false"
alias16 = ""
float_framebuffer16 = "true"
srgb_framebuffer16 = "false"
scale_type_x16 = "absolute"
scale_x16 = "800"
scale_type_y16 = "absolute"
scale_y16 = "600"
shader17 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear17 = "true"
wrap_mode17 = "clamp_to_border"
mipmap_input17 = "false"
alias17 = "BloomPass"
float_framebuffer17 = "true"
srgb_framebuffer17 = "false"
scale_type_x17 = "absolute"
scale_x17 = "800"
scale_type_y17 = "absolute"
scale_y17 = "600"
shader18 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced-ntsc-pass2.slang"
filter_linear18 = "true"
wrap_mode18 = "clamp_to_border"
mipmap_input18 = "false"
alias18 = ""
float_framebuffer18 = "true"
srgb_framebuffer18 = "false"
scale_type_x18 = "viewport"
scale_x18 = "1.000000"
scale_type_y18 = "viewport"
scale_y18 = "1.000000"
shader19 = "shaders_slang/crt/shaders/guest/advanced/deconvergence-ntsc.slang"
filter_linear19 = "true"
wrap_mode19 = "clamp_to_border"
mipmap_input19 = "false"
alias19 = ""
float_framebuffer19 = "false"
srgb_framebuffer19 = "false"
scale_type_x19 = "viewport"
scale_x19 = "1.000000"
scale_type_y19 = "viewport"
scale_y19 = "1.000000"
TNTC = "4.000000"
pre_bb = "1.000001"
vigstr = "0.300000"
cust_artifacting = "0.000000"
cust_fringing = "0.000000"
ntsc_phase = "3.000000"
CSHARPEN = "3.300002"
GAMMA_INPUT = "1.800000"
gamma_out = "2.400000"
interm = "4.000000"
m_glow = "2.000000"
m_glow_cutoff = "0.020000"
glow = "0.500000"
bloom = "-1.000000"
hmask1 = "1.000000"
brightboost = "1.999999"
gsl = "2.000000"
scanline1 = "40.000000"
scanline2 = "70.000000"
tds = "1.000000"
beam_size = "1.000000"
scan_falloff = "0.500000"
scangamma = "5.000000"
warpX = "0.030000"
warpY = "0.040000"
csize = "0.080000"
bsize1 = "0.400000"
sborder = "2.000000"
shadowMask = "8.000000"
maskstr = "1.000000"
maskboost = "3.000000"
masksize = "3.000000"
mask_zoom = "-5.000000"
slotmask = "0.500000"
slotmask1 = "1.000000"
noiseresd = "5.000000"
post_br = "0.999980"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"
3 Likes

3 - AV

shaders = "20"
feedback_pass = "0"
shader0 = "shaders_slang/misc/shaders/ntsc-colors.slang"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/crt-resswitch-glitch-koko.slang"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = ""
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = ""
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear3 = "false"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
alias3 = "StockPass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
alias4 = "AfterglowPass"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "PrePass0"
float_framebuffer5 = "false"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
filter_linear6 = "false"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = "NPass1"
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "4.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = ""
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "0.500000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = ""
float_framebuffer8 = "false"
srgb_framebuffer8 = "false"
scale_type_x8 = "source"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt/shaders/guest/advanced/custom-fast-sharpen.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = "NtscPass"
float_framebuffer9 = "false"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "true"
alias10 = "PrePass"
float_framebuffer10 = "false"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "1.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/avg-lum-ntsc.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "true"
alias11 = "AvgLumPass"
float_framebuffer11 = "false"
srgb_framebuffer11 = "false"
scale_type_x11 = "source"
scale_x11 = "1.000000"
scale_type_y11 = "source"
scale_y11 = "1.000000"
shader12 = "shaders_slang/crt/shaders/guest/advanced/linearize-ntsc.slang"
filter_linear12 = "true"
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
alias12 = "LinearizePass"
float_framebuffer12 = "true"
srgb_framebuffer12 = "false"
scale_type_x12 = "source"
scale_x12 = "1.000000"
scale_type_y12 = "source"
scale_y12 = "1.000000"
shader13 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
filter_linear13 = "true"
wrap_mode13 = "clamp_to_border"
mipmap_input13 = "false"
alias13 = "Pass1"
float_framebuffer13 = "true"
srgb_framebuffer13 = "false"
scale_type_x13 = "viewport"
scale_x13 = "1.000000"
scale_type_y13 = "source"
scale_y13 = "1.000000"
shader14 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear14 = "true"
wrap_mode14 = "clamp_to_border"
mipmap_input14 = "false"
alias14 = ""
float_framebuffer14 = "true"
srgb_framebuffer14 = "false"
scale_type_x14 = "absolute"
scale_x14 = "800"
scale_type_y14 = "source"
scale_y14 = "1.000000"
shader15 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear15 = "true"
wrap_mode15 = "clamp_to_border"
mipmap_input15 = "false"
alias15 = "GlowPass"
float_framebuffer15 = "true"
srgb_framebuffer15 = "false"
scale_type_x15 = "absolute"
scale_x15 = "800"
scale_type_y15 = "absolute"
scale_y15 = "600"
shader16 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear16 = "true"
wrap_mode16 = "clamp_to_border"
mipmap_input16 = "false"
alias16 = ""
float_framebuffer16 = "true"
srgb_framebuffer16 = "false"
scale_type_x16 = "absolute"
scale_x16 = "800"
scale_type_y16 = "absolute"
scale_y16 = "600"
shader17 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear17 = "true"
wrap_mode17 = "clamp_to_border"
mipmap_input17 = "false"
alias17 = "BloomPass"
float_framebuffer17 = "true"
srgb_framebuffer17 = "false"
scale_type_x17 = "absolute"
scale_x17 = "800"
scale_type_y17 = "absolute"
scale_y17 = "600"
shader18 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced-ntsc-pass2.slang"
filter_linear18 = "true"
wrap_mode18 = "clamp_to_border"
mipmap_input18 = "false"
alias18 = ""
float_framebuffer18 = "true"
srgb_framebuffer18 = "false"
scale_type_x18 = "viewport"
scale_x18 = "1.000000"
scale_type_y18 = "viewport"
scale_y18 = "1.000000"
shader19 = "shaders_slang/crt/shaders/guest/advanced/deconvergence-ntsc.slang"
filter_linear19 = "true"
wrap_mode19 = "clamp_to_border"
mipmap_input19 = "false"
alias19 = ""
float_framebuffer19 = "false"
srgb_framebuffer19 = "false"
scale_type_x19 = "viewport"
scale_x19 = "1.000000"
scale_type_y19 = "viewport"
scale_y19 = "1.000000"
TNTC = "4.000000"
pre_bb = "1.000001"
vigstr = "0.300000"
cust_fringing = "0.200000"
ntsc_scale = "0.825000"
ntsc_taps = "24.000000"
ntsc_cscale = "0.650000"
ntsc_cscale1 = "0.650000"
CSHARPEN = "3.300002"
DEBLUR = "3.500000"
GAMMA_INPUT = "1.800000"
gamma_out = "2.400000"
interm = "4.000000"
m_glow = "2.000000"
m_glow_cutoff = "0.020000"
glow = "0.500000"
bloom = "-1.000000"
hmask1 = "1.000000"
brightboost = "1.999999"
gsl = "2.000000"
scanline1 = "40.000000"
scanline2 = "70.000000"
tds = "1.000000"
beam_size = "1.000000"
scan_falloff = "0.500000"
scangamma = "5.000000"
warpX = "0.030000"
warpY = "0.040000"
csize = "0.080000"
bsize1 = "0.400000"
sborder = "2.000000"
shadowMask = "8.000000"
maskstr = "1.000000"
maskboost = "3.000000"
masksize = "3.000000"
mask_zoom = "-5.000000"
slotmask = "0.500000"
slotmask1 = "1.000000"
deconrb = "-4.000000"
deconrry = "-2.250000"
addnoised = "0.160000"
noiseresd = "5.000000"
post_br = "0.999980"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"

4 - RF

shaders = "20"
feedback_pass = "0"
shader0 = "shaders_slang/misc/shaders/ntsc-colors.slang"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/crt-resswitch-glitch-koko.slang"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = ""
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = ""
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear3 = "false"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
alias3 = "StockPass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
alias4 = "AfterglowPass"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "PrePass0"
float_framebuffer5 = "false"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
filter_linear6 = "false"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = "NPass1"
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "4.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = ""
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "0.500000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = ""
float_framebuffer8 = "false"
srgb_framebuffer8 = "false"
scale_type_x8 = "source"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt/shaders/guest/advanced/custom-fast-sharpen.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = "NtscPass"
float_framebuffer9 = "false"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "true"
alias10 = "PrePass"
float_framebuffer10 = "false"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "1.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/avg-lum-ntsc.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "true"
alias11 = "AvgLumPass"
float_framebuffer11 = "false"
srgb_framebuffer11 = "false"
scale_type_x11 = "source"
scale_x11 = "1.000000"
scale_type_y11 = "source"
scale_y11 = "1.000000"
shader12 = "shaders_slang/crt/shaders/guest/advanced/linearize-ntsc.slang"
filter_linear12 = "true"
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
alias12 = "LinearizePass"
float_framebuffer12 = "true"
srgb_framebuffer12 = "false"
scale_type_x12 = "source"
scale_x12 = "1.000000"
scale_type_y12 = "source"
scale_y12 = "1.000000"
shader13 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
filter_linear13 = "true"
wrap_mode13 = "clamp_to_border"
mipmap_input13 = "false"
alias13 = "Pass1"
float_framebuffer13 = "true"
srgb_framebuffer13 = "false"
scale_type_x13 = "viewport"
scale_x13 = "1.000000"
scale_type_y13 = "source"
scale_y13 = "1.000000"
shader14 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear14 = "true"
wrap_mode14 = "clamp_to_border"
mipmap_input14 = "false"
alias14 = ""
float_framebuffer14 = "true"
srgb_framebuffer14 = "false"
scale_type_x14 = "absolute"
scale_x14 = "800"
scale_type_y14 = "source"
scale_y14 = "1.000000"
shader15 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear15 = "true"
wrap_mode15 = "clamp_to_border"
mipmap_input15 = "false"
alias15 = "GlowPass"
float_framebuffer15 = "true"
srgb_framebuffer15 = "false"
scale_type_x15 = "absolute"
scale_x15 = "800"
scale_type_y15 = "absolute"
scale_y15 = "600"
shader16 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear16 = "true"
wrap_mode16 = "clamp_to_border"
mipmap_input16 = "false"
alias16 = ""
float_framebuffer16 = "true"
srgb_framebuffer16 = "false"
scale_type_x16 = "absolute"
scale_x16 = "800"
scale_type_y16 = "absolute"
scale_y16 = "600"
shader17 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear17 = "true"
wrap_mode17 = "clamp_to_border"
mipmap_input17 = "false"
alias17 = "BloomPass"
float_framebuffer17 = "true"
srgb_framebuffer17 = "false"
scale_type_x17 = "absolute"
scale_x17 = "800"
scale_type_y17 = "absolute"
scale_y17 = "600"
shader18 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced-ntsc-pass2.slang"
filter_linear18 = "true"
wrap_mode18 = "clamp_to_border"
mipmap_input18 = "false"
alias18 = ""
float_framebuffer18 = "true"
srgb_framebuffer18 = "false"
scale_type_x18 = "viewport"
scale_x18 = "1.000000"
scale_type_y18 = "viewport"
scale_y18 = "1.000000"
shader19 = "shaders_slang/crt/shaders/guest/advanced/deconvergence-ntsc.slang"
filter_linear19 = "true"
wrap_mode19 = "clamp_to_border"
mipmap_input19 = "false"
alias19 = ""
float_framebuffer19 = "false"
srgb_framebuffer19 = "false"
scale_type_x19 = "viewport"
scale_x19 = "1.000000"
scale_type_y19 = "viewport"
scale_y19 = "1.000000"
TNTC = "4.000000"
wp_saturation = "0.900000"
pre_bb = "1.000001"
contr = "-0.100000"
vigstr = "0.300000"
cust_artifacting = "1.200000"
cust_fringing = "0.600000"
ntsc_phase = "2.000000"
ntsc_scale = "0.800000"
ntsc_rainbow1 = "1.000000"
ntsc_taps = "24.000000"
ntsc_cscale = "0.500000"
ntsc_cscale1 = "0.500000"
CSHARPEN = "3.300002"
DEBLUR = "3.500000"
GAMMA_INPUT = "1.800000"
gamma_out = "2.400000"
interm = "4.000000"
m_glow = "2.000000"
m_glow_cutoff = "0.020000"
glow = "0.500000"
bloom = "-1.000000"
hmask1 = "1.000000"
brightboost = "1.999999"
gsl = "2.000000"
scanline1 = "40.000000"
scanline2 = "70.000000"
tds = "1.000000"
beam_size = "1.000000"
scan_falloff = "0.500000"
scangamma = "5.000000"
warpX = "0.030000"
warpY = "0.040000"
csize = "0.080000"
bsize1 = "0.400000"
sborder = "2.000000"
barspeed = "200.000000"
barintensity = "0.010000"
shadowMask = "8.000000"
maskstr = "1.000000"
maskboost = "3.000000"
masksize = "3.000000"
mask_zoom = "-5.000000"
slotmask = "0.500000"
slotmask1 = "1.000000"
deconrb = "-8.000000"
deconrry = "-4.750000"
deconrgy = "0.250000"
addnoised = "0.300000"
noiseresd = "5.000000"
post_br = "0.999980"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"
5 Likes

This is absolutely god-tier

RF or bust

It adds so much needed texture to that grass, even Composite feels soulless in comparison

RF just feels so right for many home consoles of this era, especially Mega Drive

3 Likes

Thanks! :smiley: I’m really happy with how the RF came out, the screenshot doesn’t do it justice, so I hope you are able to try it out and see it in motion. I grew up on RF, from the NES allll the way up to and including the Xbox 360. (All on the same 13" JVC TV-VCR Combo!) before I ever upgraded, so really RF is just how games look right to me.

I know I said NES looks great with RF, but I would also say N64 with the shader on looks ridiculous good in the sense that it makes me feel like I am looking at that old setup:

4 Likes

I tried the svideo preset last night. I don’t know if it was cause I was playing at 3am almost zoning out but it somehow felt like I was playing on a TV for a bit, almost felt like I dreamt the whole thing up lol. Point is I think you got something here and I’ll be keeping on eye on your work. Good stuff gonna try the others later.

2 Likes

IrfanView has a feature where it can optimize the quality of a jpeg to get any maximum file size you specify. So you can just set it to 409Kb and get the maximum quality that these forums would allow.

You can even disable Chroma Compression!

1 Like

This looks great but was it really that bad?

2 Likes

I played with the AV all day, and honestly, I really like it. I also tested the RF, and it’s great. The others aren’t bad either, but for me, the AV is really cool.

2 Likes

Just tried out RF preset and man these presets are crazy. I tweaked the ntsc resolution setting from 0.80 back to 1.00 to get the rainbow effect then turned up the artifacting effect to 3.00 to bring out the rainbows even more:

@ynnad4 this has to be the RF look you were talking about.

3 Likes

RetroArch 100% needs WAY MORE ** RF ** presets, since this is supposed to be the way BY DEFAULT to play any of the most classic consoles, aka: NES, SNES, Genesis, N64 and others.

Not sure if you may have seen, but this guy released his own mod thread with shader/presets to fit the old Composite Video, S-Video and RF looking specifically. In case you’re also interested in:

I still do have a functional NES that is about 35 years old with RF being hooked up to a 1920x1080 TV and yes, these presets definetely bring up the vibe. It really has the Rainbow banding effect, blurring and even Noise effect. I got a couple of recorded videos on NES- Kirby’s Adventure in case of needing a proof, with some modest CAM.

Please keep on the work.

4 Likes

The RF preset reminds me a bit of:

I’ve seen this type of looking in older magazines, recorded videos from that era.

Not sure if its a NTSC effect or just the way RF / Composite Video looked like

I asked if it was possible to import Emmir’s LMP88 CRT looking project into RetroArch, since gives quite a vibe such as this RF preset posted above.

3 Likes

Looks like RF presets are being embraced more around here so that’s a plus.

I keep a eye on every little thing around here even if I don’t say much lol. Yeah I’ve seen them, they look cool as well.

Nice. I haven’t seen RF on a real crt in years. So far the only systems I still have left are Saturn, PS1, N64, PC Engine CD, Dreamcast and the first Xbox all with composite input. Hopefully if I get my hands on a 32 inch I can then grab some used NES, SNES and Mega Drive systems all with RF input and maybe make some realistic looking RF and composite presets based off those.

5 Likes

Wow thank you! That actually means a lot your work actually is what inspired me to focus so much more on brightness.

Good ol’ IrfanView! I hadn’t used that feature before, I will check it out. Thanks!

No, hahaha, I def did not use a real input as a reference. Though, I am convinced that RF somehow looks cleaner than it used to, and my hypothesis is because there are no signals being broadcast on things like Ch2 and Ch4.

That probably sounds silly, but like I said I am kind of convinced that’s why it seems cleaner than when I was a kid.

Thanks! I put a good amount of work into the AV one to get it just right. Then tweaked the RF one based on that. I’m really happy with how it diffuses color.

I couldn’t really get rainbows to work on-screen how they did in my brain. I remember them being very subtle and slightly diagonal, but I don’t ever see that representation that I can find.


I’m really glad to see so many people loving RF presets in general.

This in particular made me really happy. I used to record myself playing video games as a kid on my old combo set. Somewhere I have a VHS of “Sonic Adventure - The Movie” Where I played every single part of the game, each character, in chronological order all the way through Super Sonic’s level.

So hearing I caught even a piece of that feeling is super validating <3

2 Likes

You’re welcome and that’s amazing to know that my presets gave you some inspiration.

Did they perhaps look like one of these?

I was able to “turn” the rainbows with the ntsc resolution scaling setting.

2 Likes

Yeah that top one looks the most like I remember, out of the two. I was struggling with balancing a particular level of sharpness while playing with the NTSC resolution. I’ve done a little bit with the sharpness after I moved on from that, so I could revisit it and give it another go.

1 Like
