Be my guest, sure
1 Like
Thank you m8 all sorted
1 Like
I feel like both uborder and koko have their charmā¦ what Iām currently enjoying on koko is the slight breathing and the the slight flickering. And obviously the shader image quality
1 Like
Since I was experimenting with wide/ halation like bloom settings, I felt the need to have something that would allow me to make the bloom visible without having it clipping.
So there is now a new parameter:
By using a a soft Roll-off curve, this causes the darker to mid bloom shades to be more visible and pronounced, while rolling off the intensity of the brightest areas.
Caution has to be used for values > 1.0, because mid bloom tones will becomes brighter than bright ones, which can or not be something you want.
Depending on the parameters, there are various use cases.
Make the image more āvibrantā

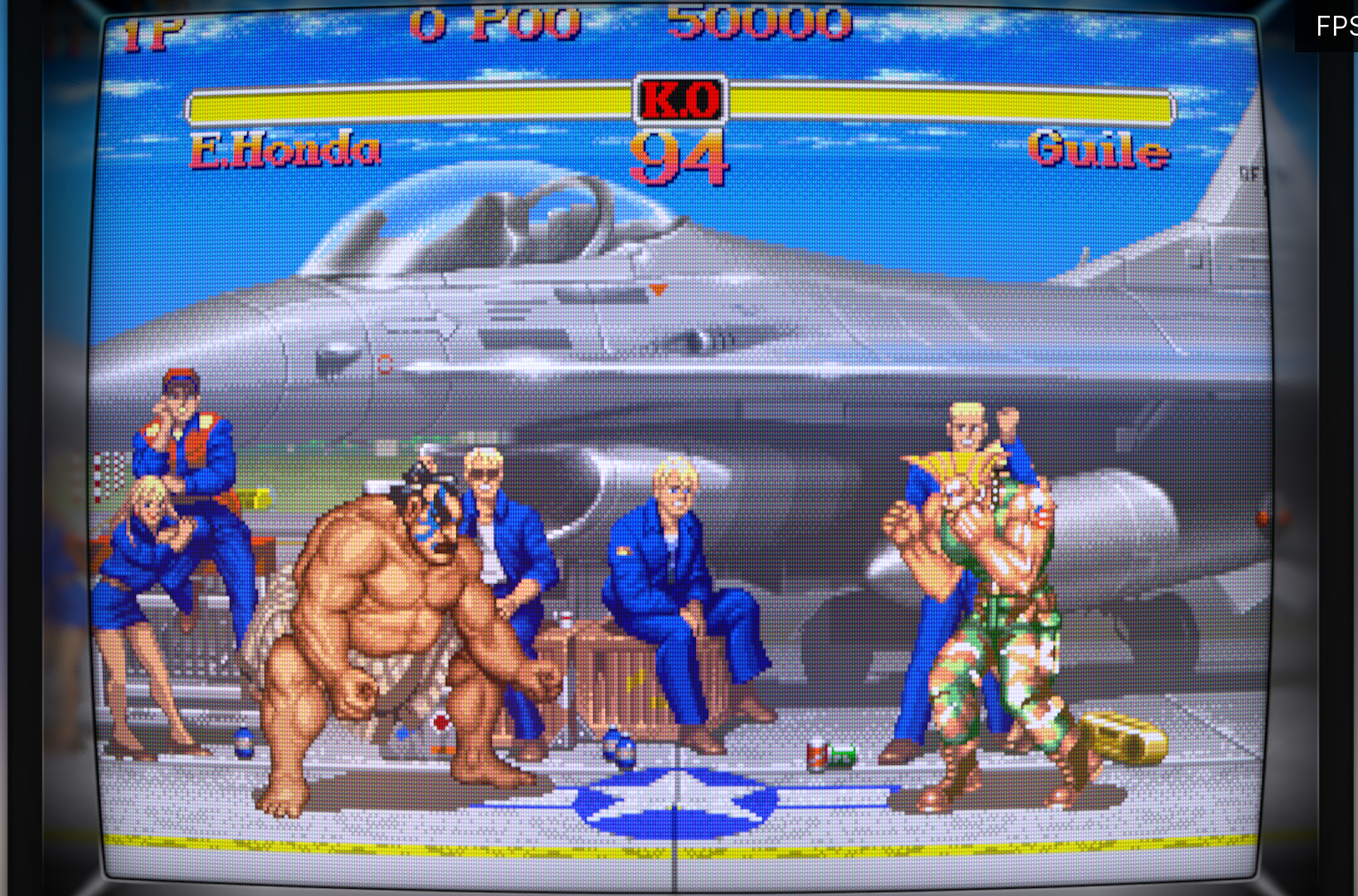

off:
:

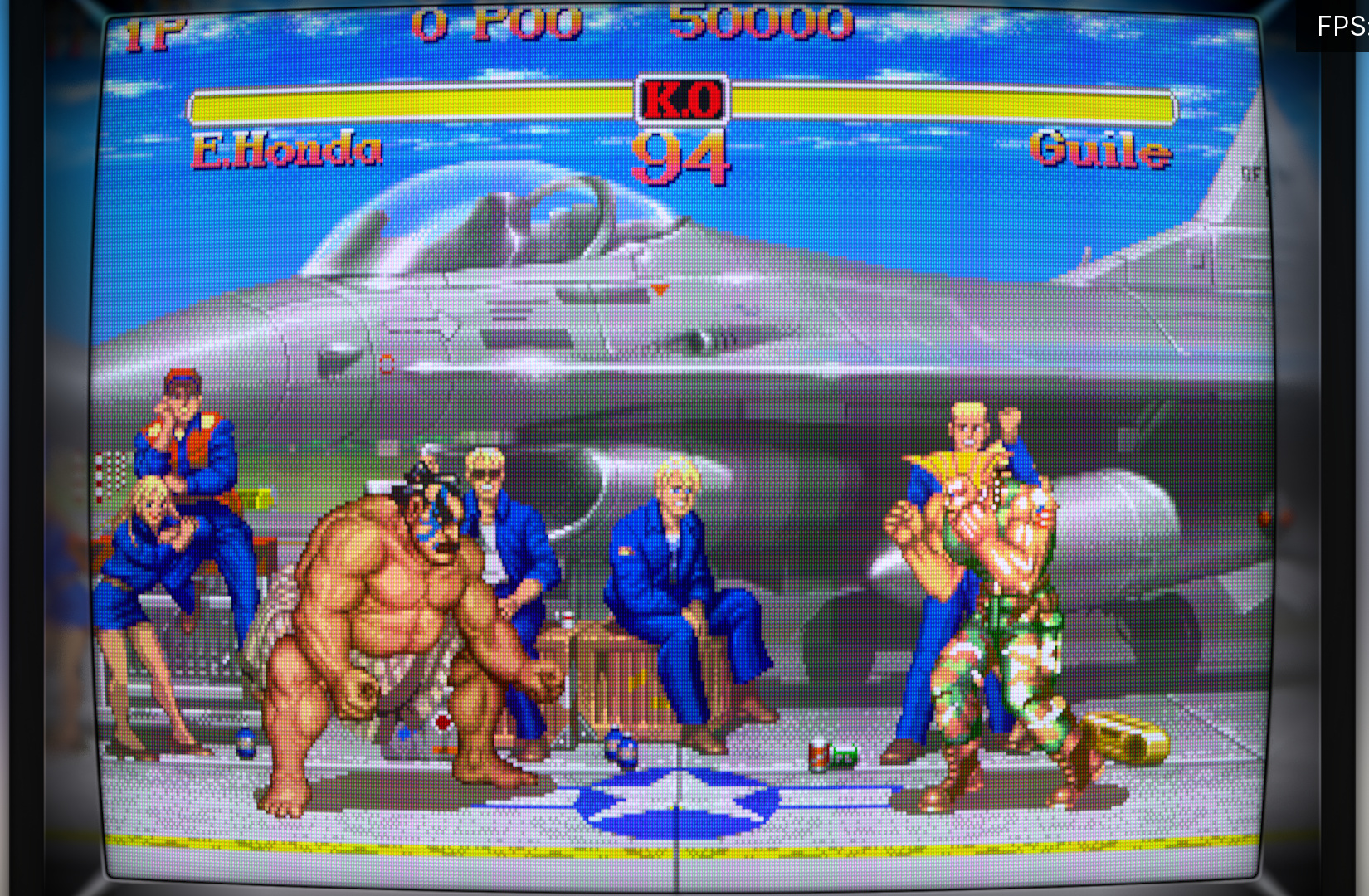

on: 2.0

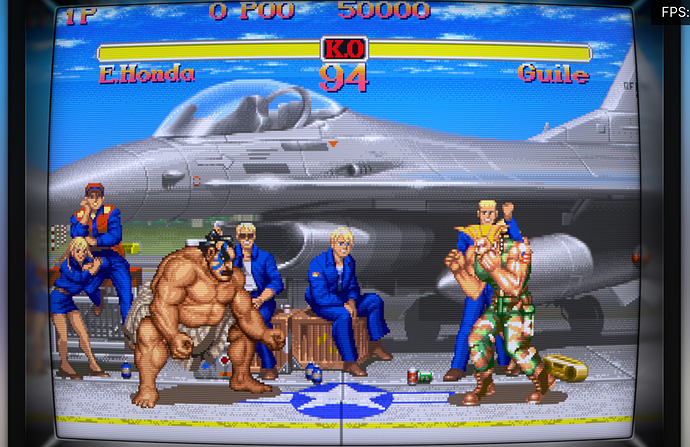

Make it breathe (on:10.0):
And more generally, allowing it to bloom without making you blind, see how the white parts of the suit stay bright but donāt āoverbloomā:

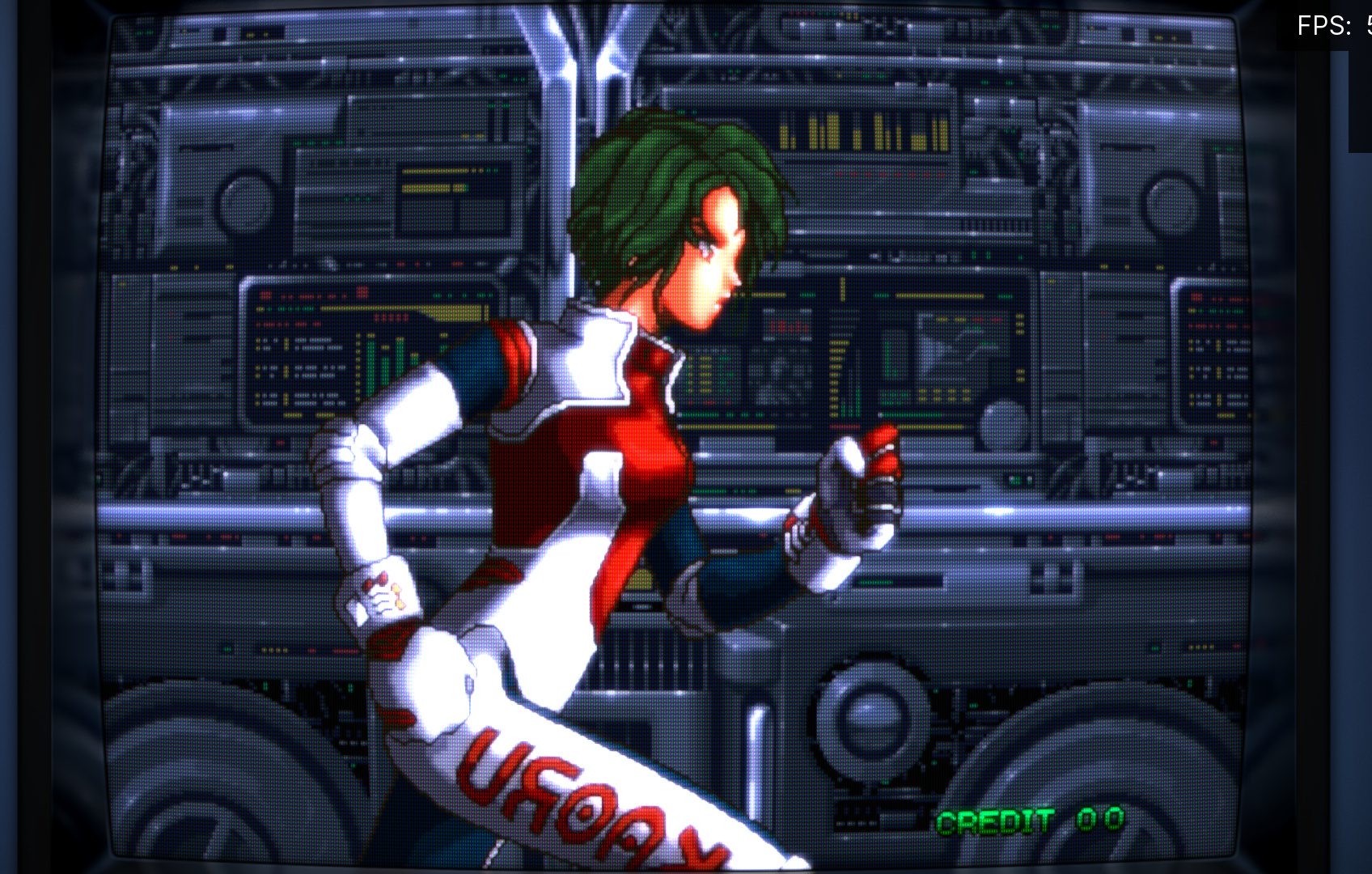

off, high gain:

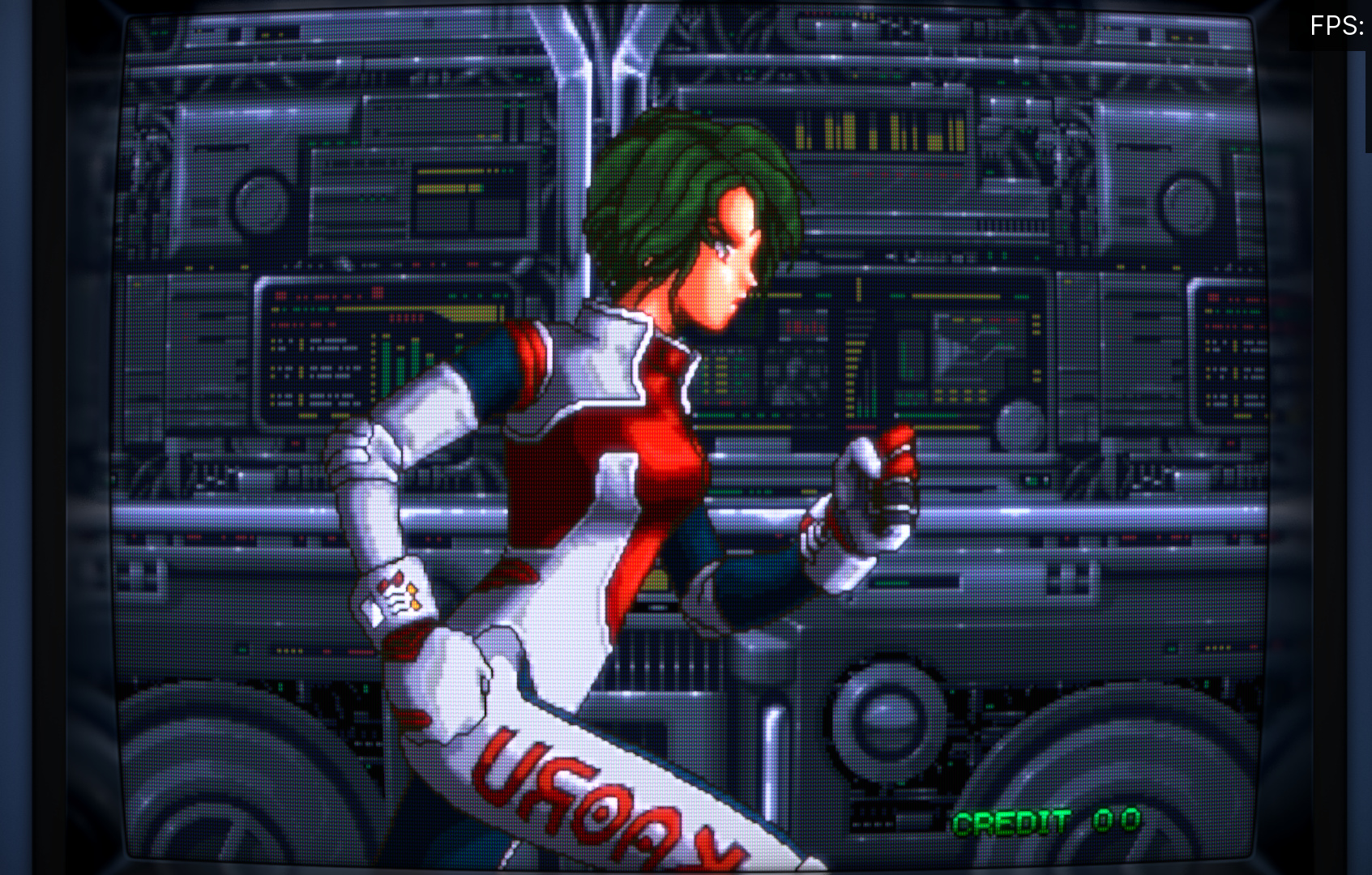

on: 10.0, low gain:
8 Likes
Hi kokoko3k - Using your work a lot has brought back several memories, and being European like you, starting out with the legendary PlayStation as my first console, I mainly used the RGB scart cable. I didnāt have one right away though; I had to wait a while to understand it existed and get it, so I used s-video cables. Given the particularity of s-video in managing colors and the associated bleeding, is there a possibility of emulating it as closely as possible with your work, or will there be a specific feature in the future, as you did with the NTSC format? Also because I believe your main shaders (I use monitors hmask, slotmask, and Shadow Mask) emulate RGB colors. Thanks so much for your attention.
1 Like
Iām not that deep into the technical details of NTSC or S-Video signals. I usually stop coding when my eyes tell me to/when what I see looks āgood enoughāĀ® . So while my NTSC implementation might look fine to an untrained eye and may bring back some good memories, itās definitely not analytically perfect.
The same goes for S-Video, though in this case my memory and a bit of technical knowledge help me a little more.
The preset named āTV-PAL my oldā is meant to recreate how I remember my old, cheap consumer TV ā¦though that one was connected via composite, not S-Video.
As far as I know, S-Video carries luminance and chrominance through separate cables, so they donāt interfere with each other as they do in CVBS. However, both still operate within limited bandwidth.
That means luminance should appear cleaner and sharper than with composite (though not as sharp as RGB due to bandwidth limits), with no crosstalk ā but the same kind of color bleeding can still be seen because of that limited bandwidth.
Vertical and overral sharpness depends on the CRT screen itself, but assuming you were using a common model, maybe blurring the image, adding a bit of noise and activating the CVBS color bleed feature should be enough (?)

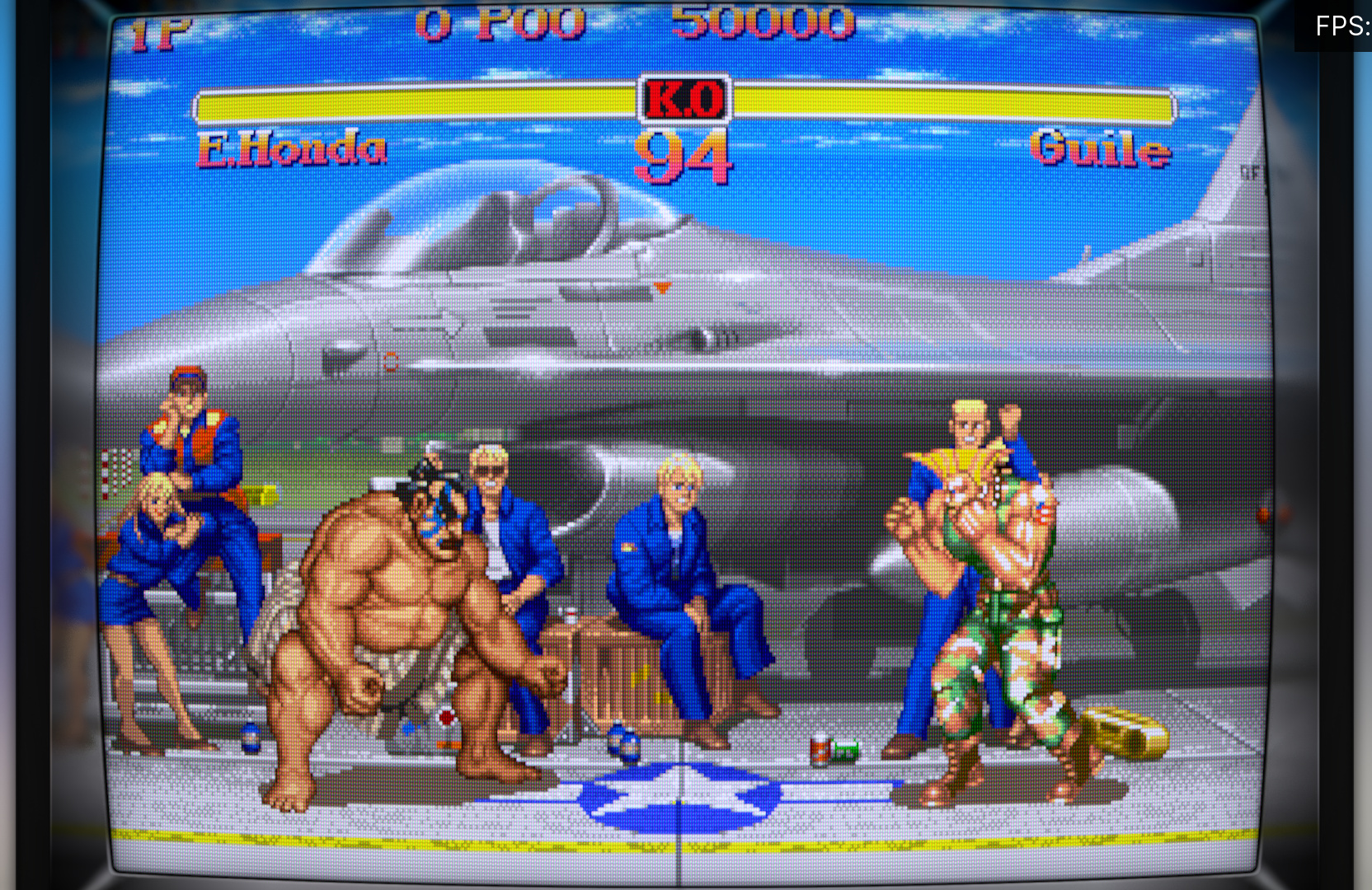

What about this? it is probably on the low quality side (on purpose to show the effect of the parameters), so you may want to tweak it.
It is a slotmask with high scanlines, low saturation, some noise, color bleeding, a bit of blur on x and y and PAL chroma bleeding.
Rest is the base.slangp reference preset.
If you want to tune to your likings, i think the main parameters to be used which relates to Svideo are Colo Corrections: saturation, RF Noise, Glow/Blur: Sharp X/Y, CVBS Bandwidth: Strength and Falloff
Put this in the same folder as Presets-ng/Base.slangp:
#reference "Base.slangp"
IN_GLOW_GAMMA = "2.220000"
IN_GLOW_POWER = "2.999999"
LUMINANCE = "0.000000"
SATURATION = "0.9"
DO_SAT_BLEED = "1.000000"
SAT_BLEED_PAL = "1.000000"
SAT_BLEED_STRENGTH = "0.60000"
SAT_BLEED_FALLOFF = "1.470000"
DO_SHIFT_RGB = "0.000000"
DO_RF_NOISE = "1.000000"
RF_NOISE_STRENGTH = "0.140000"
RF_NOISE_SPARK = "0.080000"
IN_GLOW_H = "-0.850000"
IN_GLOW_WARPSHARP_X = "0.500000"
IN_GLOW_WARPSHARP_Y = "0.500000"
PIXELGRID_MIN_H = "0.650000"
PIXELGRID_MAX_H = "1.000000"
PIXELGRID_GAMMA_H = "3.600001"
PIXELGRID_H_PRST = "5.000000"
PIXELGRID_Y_MASK = "0.400000"
PIXELGRID_Y_MASK_COORDS = "1.000000"
PIXELGRID_Y_MASK_HEIGHT = "0.500000"
PIXELGRID_Y_MASK_OFFSET_DEHIVE = "0.260000"
PIXELGRID_Y_MASK_SHIFT = "-0.010000"
PIXELGRID_Y_MASK_ON_WHITE = "0.999999"
PIXELGRID_Y_SPARK = "0.000000"
3 Likes
From the screen it looks really good - Iāll load it up tonight or tomorrow at the latest and start using it, maybe with some Super Nintendo or Sega Mega Drive games - thank you so much!
2 Likes
There are so many presets, I donāt know which one to choose lol. What is your favourite preset for 8-bit and 16-bit consoles?
2 Likes
Eh, I know. as the shader code advances and gain new features, new presets are added to leverage them, but old ones usually stay there, because some users may got used to them, also, if I delete a preset, the online update wonāt delete it.
My overrides are:
- Megadrive: Presets-ng/TV/Tv-NTSC_Megadrive-AA_sharp-Selective.slangp
- Snes: Presets-ng/Tv-NTSC_Generic-AA_sharp-Selective.slangp
- C64, Amiga, Mastersystem: Presets-4.1/tv-PAL-my-old.slangp
- NES: not playing it, but probably it would be: Presets-4.1/tv-NTSC-2.slangp
- PSX: Depends on the game!
- Handhelds: the ones under Presets_Handhelds-ng/ named as the console itself
Others:
- Arcades: Presets-ng/Monitor-Screen_Hmask-Screen_SlotMask_Taller_Brighter.slangp
- Dreamcast: Presets_HiresGames_Fast/Presets-ng/Monitor-New_slotmask_gm.slangp
- MsDos: Presets-ng/VGA/Monitor-VGA-DoubleScan.slangp
6 Likes
Hello,
I just learned about this shader preset, and Iām very happy about it! Iāve set up quite a few Libretro emulators with Batocera, and everything works great!

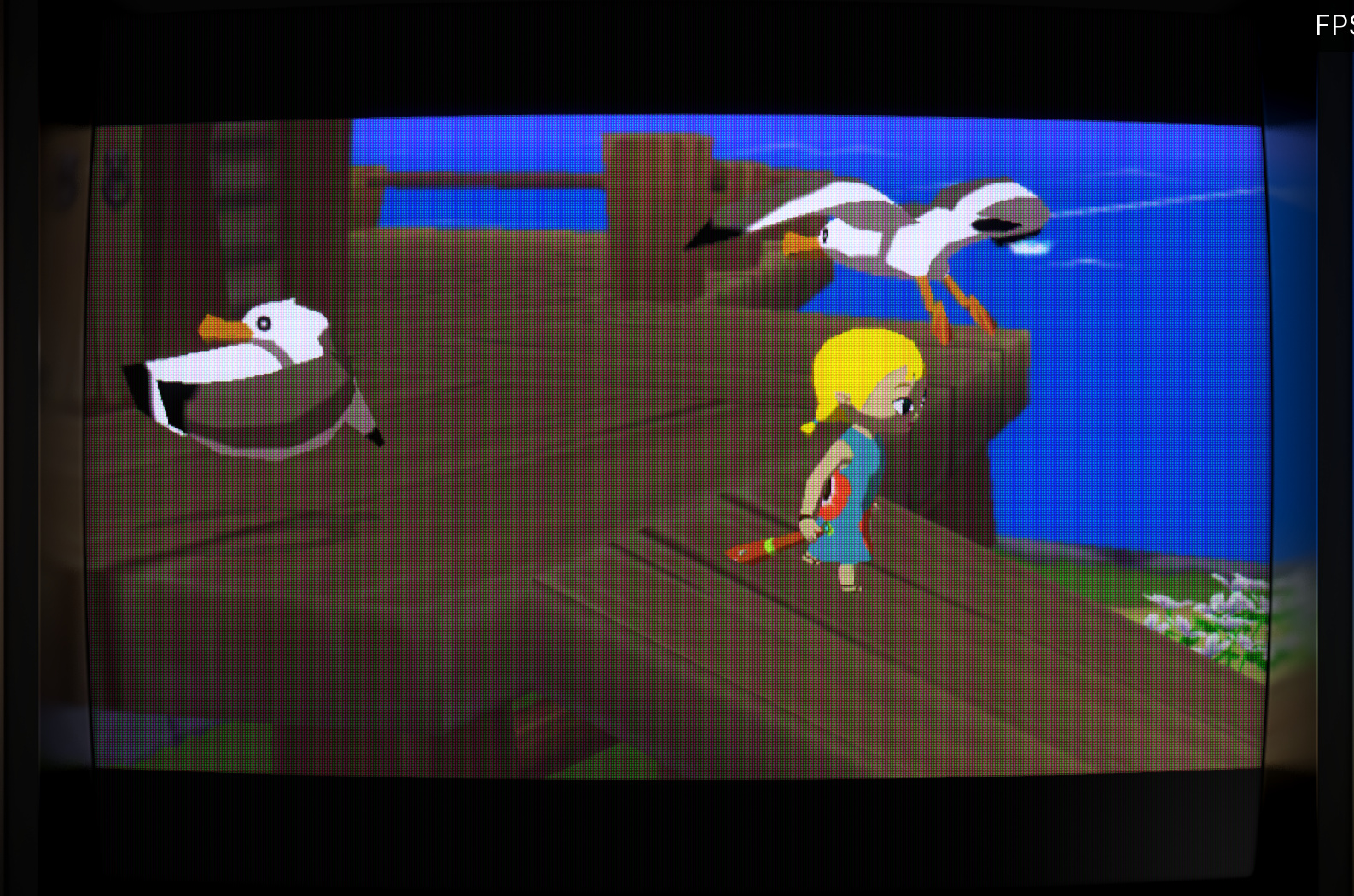

On Gamecube, it works pretty well for most games, but Iām having trouble finding a good compromise for Zelda: Wind Waker. Could someone give me some advice on how to avoid flickering in the image? I donāt know exactly what setting is causing itā¦ What allows me to no longer have this problem is to remove interlacing.
Thanks!
1 Like
Hi there, there are 2 settings named: Scanlines flicker and flicker power.
Have you tried them?
1 Like
Yes, I tried both and my game continue to flicker as hell. I think Wind Waker had an active in-game interlaced option
When I test Flicker power ON and OFF, same timing happen. If Scan lines flicker is OFF, again flickers as hell.
The other setting that may cause flicker from the shader is:
- Hi-res scanline type
What if set to 1 or 2?
If this doesnāt fix the issue, then you can try to load the content without any shader and see if the problem comes from the core itself.
-EDIT-
I just tried ad disabling Flicker cuts the flicker by a good 90%. the rest is achieved through āHi-res scanline typeā set to 1 or 2.
That said, the fact that disabling Flicker does not make any difference to you, makes me think you are not using the latest koko-aio version or maybe a modified version from a Batocera pack (?)
1 Like
If I set scanline type to 2, no flicker at all!
I downloaded the pack via Batocera, yes. How do I install the latest pack?
1 Like
Iām not 100% sure, but I think Batocera ships an old koko-aio version tuned by Duglim, which in turn leverages feature that lock some koko-aio settings to gain performance, and unfortunately thereās no user notification about that; so maybe the flicker parameter is indeed locked and always active.
This was done to allow even hires games to work at 60fps on weak igpu like the one in the n100, but today there are specific/unlocked presets made just for that.
To install an updated version, either use the online update from retroarch or download the development version from the github repo in the first post, but Iām not sure how Batocera handles that, so youād better ask on its official support channels.
1 Like
On RetroArch via Batocera, I donāt have the option to update through the interface; I think thatās intentionalā¦
1 Like
The shaders are on a locked path in Batocera. You can install the updated shader manually in the user drive and create a custom YML pointing to a new preset.
The easiest thing to do is copy an existing YML, use a mass rename tool to point the existing entries to the new path, then update whatever you want after. You then point to your custom named YML in the shader options.
There are a few people on the Batocera Discord that can steer you in the right direction. (Modhack, TVslan, getupor etc.)
2 Likes
Hi @kokoko3k I am currently setting up an M4 iPad Pro for RetroArch, and of course with koko-aio. As its format is (close to) 4:3, bezel artwork only makes sense in landscape mode, but not in portrait mode. My question: Would it be possible to set up koko-aio in a way that it only displays bezel artwork in landscape mode, but if I rotate the iPad to portrait mode, the bezel artwork is deactivated - so that the full monitor space is used? Just thinking out loudlyā¦cheers!
1 Like

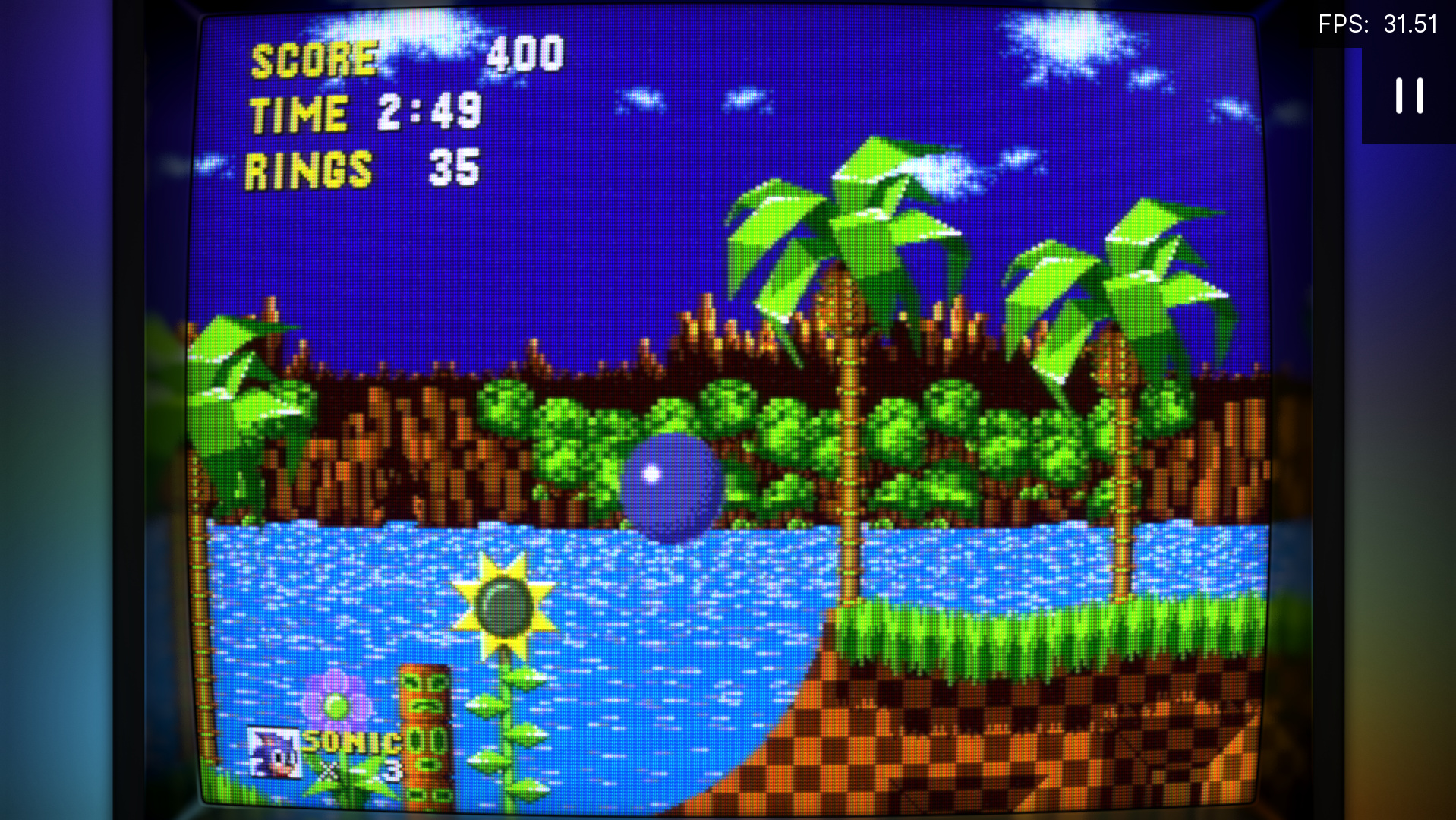

I remember i spent a lot of time coding this, (and with a lot of headache), to play gameboy on my phone in vertical mode
The shader already prioritizes screen content on viewport resize.
As the available space shrinks in either dimension, it first cuts out the backgdound picture, then the monitor frame, and finally it will start to shrink the main content so that it will always be visible.
So my advice is to just try it out.
1 Like
Thanks for the advice, I just sent a message in the Discord!
