Hi m8 what is the best way to rotate a game (Final Fight arcade) using FBNeo core and Koko-aio. I want to use a vertical arcade overlay. Thanks
Uhm, not sure what the question is about.
Koko-aio does not support manual game content rotation, but FBNeo has a āvertical modeā option that will do.
If the overlay is managed by the shader, you may need to rotate it via shader controls under back/foreground image section or leave rotation to auto (0).
1 Like
Probably some of my .slangp settings Iām using are interfering with thisā¦ and Iām getting distorted or shrunken overlay that requires me to zoom to about 2.3. This is definitely a me setup problem lol, when I rotated the game itself in fbneo core settings (vertical on) I get a fair bit of moire patternā¦ maybe because Iām using a 1080p monitor
I think Iāll leave this experiment here for now m8ā¦ thanks for your help
1 Like
Moire could happen in this case, yeah.
You can rotate scanlines via TATE setting and see if it fixes it.
Other options are fake integer scanlines parameter or fake slotmask, which can hide moire as well.
Fake slotmask:
First disable real slotmask emulation, if enabled:
ā¦next enable fake slotmask emulation which, instead of drawing staggered tiny gaps vertically between phosphors, staggers the scanline itself; a value around 0.18 should work:
1 Like
Iāll try that pal thanks, I might try just rotate the overlay in photoshop and save it lol. Itās most likely not the right way to do it but I know itāll work just to try it
But moving forward I think Iāll do a fresh install
I still donāt understand what youāre trying to do, but ok lol
Just use a vertical overlay from the 4K vertical overlay thread in conjunction with yr shader. The vertical overlayās are for both horizontal and vertical games but the screen remains verticalā¦ Iād have to show you what I mean.
I see the screen not rotated, so 4:3.
You just need to set the overlay file path to bg_over in koko-aio, then alogn everything via āglobal zoomā and content geometry override, I guess.
1 Like
Ah looking at the beginning of that thread the overlays are horizontal but later on itās focused more on vertical overlays like this:
And looking at this overlay i think the main places where the light should naturally hit is on the cpo at the bottom and the speaker grill near the top. So iād need to rotate the led positions of the ambi light if thats possible? Iād also need to mask the marquee and maybe the joysticks
Canāt see the image
(imgbb,upgrade to proā¦)
ā¦
One preliminar quick question: will your real monitor/display be phisycally rotated?
2 Likes
Yes m8, Iād have to physically rotate it.
1 Like
Ah, now it is clear!
What Iād do would be to set the operating system itself to rotate the screen; that way the shader would see a window with dimensions 1080x1920 and would adapt itself automatically, so you donāt have to worry about rotation at all, and you can think at it just like a normal tall window, straight.
Ambilight position controls that may interest you are:
Internalness (Led position), which moves the virtual strips far or near the screen and Widen lights(horizontal or vertical games) that stretches the emitted light without needing to touch the power.
There are no controls to shift them up/down or left/right, so if you will light the marquee under the speakers, it will light even the lower one over the joysticks (and sides ofc).
If you want to emulate a night(er) setup, you can take inspiration from the immersive preset.
Always take a look to docs-ng.md before doing things; it may spare you some headaches and time
1 Like
Thanks for the help pal and yes iāll start looking to the docs from now on. Did what you suggested and got it working pretty good. I reckon iāll need a much bigger monitor than the one iāve got though! (24")
1 Like
Not only bigger, but with higher resolution, and maybe a relatively fast GPU to drive more pixels (a recent IGP, expecially AMD may work tho)
1 Like
I know ā¦that might be the end of that project for now then lol
Wow I tried Presets_HiresGames_Fast and I have 60 fps now!! Thanks for the advice!!!
3 Likes

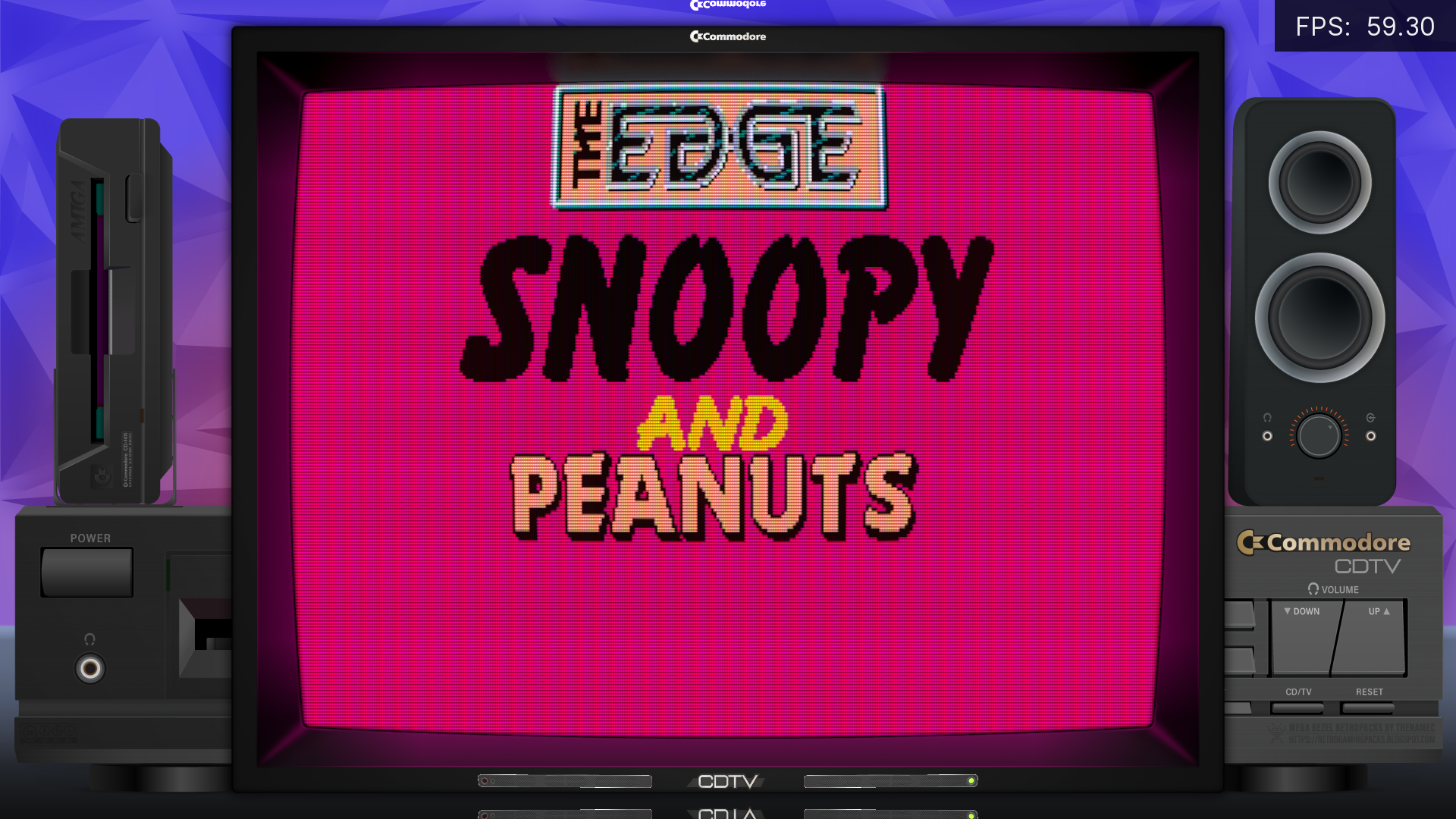

As usual, Iām not sure if iām doing things right: Iām trying to use those beatiful Commodore Bezels made by TheNamec. Iād like to have the background AND some foreground over the bezelās edge, as poorly seen in the picture. I tried using the foreground image as a ābackdropā, but because of some reason, it repeats itself when using zoom<1. Although it doesnāt seem the proper way.
I thought I could use bg_over AND bg_under (at the same time) with the attached pictures, but it doesnās seem to work either.
Is there any way to actually use two images (and backdrop)?
1 Like
