it is 4:4:4 rgb the problem might be the tv, it might have a weird bgr arrangement
2 Likes
Hi @guest.r! I’ve been testing out the ReShade port of advanced on my Steam Deck, currently using a tweaked version of @schM0ggi’s presets. I’m playing FF7 and wanted to know if there was a way to replicate the NTSC-J color gamut the game was designed around via configuring the shader.
1 Like
I guess you now know what your next upgrade should be. How long now have you been complaining about these similar issues on these forums?
I know everyone’s situation is different so not everyone is in a position to just replace any piece of hardware at any point in time but if you do love this hobby and would like to spend more time enjoying then start to do some research as to what displays might be able to fit in your budget, either now or future and see how best you can get to that point.
I have a TV that can’t do all shaders properly too. It sucks. I probably won’t sell it because it’s a 3D TV and those are probably rare these days, right?
If you can sell yours then get something to replace it that will bring you joy instead of frustration. I think that that might be the best solution.
1 Like

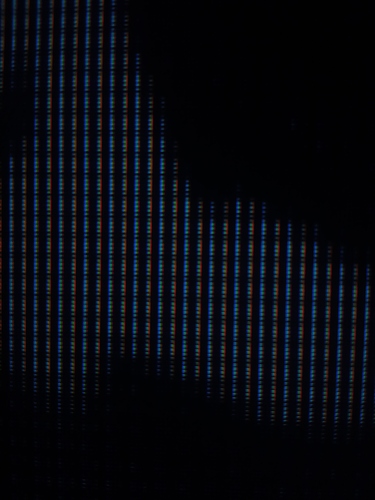

I know, but my economic situation doesn’t let me do that as of now, i had to return my 4k set and stay with this one due to some constraints i had sometime ago, i literally started to think if this magenta rows were a problem over the mask some days ago
1 Like
If you set the parameter Color Temperature % to -100, then it should exactly hit the color temperature of the NTSC-J standard (9300K).
If you want an older US based NTSC standard, then set LUT Colors to 4.0 and leave color temps at default.
Edit: Good alternative is also to select the last profile under CRT Profile: EBU | P22 | SMPTE-C | Philips | Trin.. It’s “calibrated” to have a nice cool colors look, just like NTSC-J.
4 Likes
Thanks, works perfectly. Just one other thing: I’m torn between scanline types 1 and 2. What do you think is better suited for the steam deck?
1 Like
Type 2 has better consistency with thinner scanlines, you might want it for aperture masks. Type 1 is better for slotmask and shadowmask setups.
There are also very nice possibilities with scanline types -1 and 0 if you crank up Smart Sharpen Scanlines. Great for slotmask and shadowmask setups.
5 Likes
New Release Version (2024-02-29-r1):
Notable changes:
- Mask Zoom Sharpen feature improvement.
- Magic Glow Alternate mode (2.0) added. It’s now quite more safe to crank up very wide magic glow.
- Current presets aren’t affected (@sonkun…).
- Edit: small tweak
Download link:
https://mega.nz/file/9pwUkJ5Q#NMEXCQM8FtDcoyTd3AVyreZsHd0BEQRovFcUu6DuoG8
16 Likes
I’m a bit confused by my results and wonder if it’s because of my width and height parameters. The game is outputting at 1280x800 in a 4:3 aspect ratio, and I set the width and height to 640 and 480 respectively. Is that correct? Once again I’m using the Reshade port so idk if the same methods apply.
1 Like
You can run the specific game in mega bezel, for example, where you can read (yellow text) the specific game resolution. If it’s a Retroarch supported retro game, of course.
For best scanline experience, the input resolution should exactly match the game’s “original” resolution.
With 640x480 input resolution, usually interlacing mode is triggered, so no regular scanlines. It can give good results, but still depends on which game you are playing.
You can also troubleshoot the ReShade port issues in this specific thread:
1 Like
So I gave the new alternate magic glow a quick spin, I’m not quite sure what to make of it yet. My question to you is is the main purpose of it us just to be able to crank out more glow? What exactly makes it different from cranking out more glow with regular magic glow?
1 Like
It depends on the specific use case. If you use it as a wide effect (and using other means for mask mitigation), then it’s a nicer effect regarding the old one.
If you use it for mask mitigation, then you might want re-tweak most of the glow settings, since it works differently.
Folks who just quickly switch from regular glow to magic glow might not care too much.
TL;DR: it’s relatively better as a wide effect.
I’m presenting a ntsc preset, if someone wants to give it a try:
TNTC = "4.000000"
cust_fringing = "0.000000"
ntsc_fields = "1.000000"
ntsc_gamma = "1.749999"
ntsc_taps = "20.000000"
ntsc_cscale = "1.999999"
ntsc_falloff = "0.500000"
ntsc_sharp = "-6.000000"
DEBLUR = "3.500000"
GAMMA_INPUT = "2.200000"
gamma_out = "2.150000"
m_glow = "2.000000"
m_glow_cutoff = "0.080000"
m_glow_low = "1.000000"
m_glow_high = "3.000002"
m_glow_mask = "0.450000"
SIGMA_H = "1.500000"
SIGMA_V = "1.400001"
FINE_BLOOM = "3.000000"
SIZEHB = "4.000000"
SIGMA_HB = "0.800000"
SIZEVB = "4.000000"
SIGMA_VB = "0.700000"
glow = "0.400000"
mask_bloom = "-0.150000"
halation = "-0.250000"
hmask1 = "0.150000"
gamma_c = "1.300000"
clips = "0.200000"
gsl = "-1.000000"
scanline1 = "4.500000"
scanline2 = "7.000000"
beam_min = "2.299999"
beam_max = "0.900000"
tds = "1.000000"
scans = "1.500000"
scan_falloff = "0.350000"
scangamma = "2.600000"
IOS = "2.000000"
shadowMask = "12.000000"
maskstr = "1.000000"
maskboost = "1.400000"
mask_zoom = "-3.000000"
mzoom_sh = "0.500000"
mshift = "0.500000"
mask_layout = "1.000000"
mask_gamma = "1.800001"
smoothmask = "1.000000"
5 Likes
Interesting. I’m currently satisfied with the magic glow settings I have at the moment but I’ll head into the lab anyway and play around with this. If I was to use this alternate magic glow I’ll probably try to aim for a similar look but with the added benefits this new version will add. I’ll see how things go.
2 Likes
Here is a nice Magic Glow 2.0 mask mitigation example (standard version):
m_glow = "2.000000"
m_glow_cutoff = "0.040000"
m_glow_low = "5.000001"
m_glow_high = "3.000002"
m_glow_dist = "2.499999"
m_glow_mask = "0.500000"
FINE_GLOW = "3.000000"
SIGMA_H = "1.000000"
SIGMA_V = "0.900000"
glow = "0.849999"
gamma_c = "1.350000"
clips = "0.300000"
scans = "1.000000"
shadowMask = "9.000000"
maskstr = "1.000000"
maskboost = "1.150000"
mask_zoom = "1.000000"
mzoom_sh = "0.400000"
mask_gamma = "1.350001"
slotmask = "1.000000"
slotmask1 = "1.000000"
deconrr = "0.750000"
deconrb = "-0.750000"
deconrry = "0.500000"
deconrby = "-0.500000"
9 Likes
The first thing I noticed with this new alternate magic glow is that even after cranking up other glow settings the glow doesn’t seem to “smother” the mask like before resulting in me being able to see the mask and scanlines a bit clearer.
Here’s my current rgb slotmask preset:
Here’s with new magic glow settings:
I like it. I’m still experimenting with it but I predict I’ll be putting together a new preset pack with this new magic glow.
5 Likes
Is there a way to load the Magic Glow feature into a shader that doesn’t currently use it?
If we can port it over to shaders that don’t use your version.
1 Like
First, thanks for liking magic glow. It’s really a versatile feature tbh.
Otoh it’s also integrated into the guest-advanced shaders in a way that doesn’t allow simple separation and extraction into a standalone version.
But, there are some really nice alternatives, which can be apended after a shader preset is loaded.
Dual filter:
https://github.com/libretro/slang-shaders/tree/master/blurs
Magic bloom:
https://github.com/libretro/slang-shaders/tree/master/reshade
I pointed to directories, which can be found into the shaders_slang folder, so you can give it some tries.
5 Likes
The more I look at it the more I’m definitely liking it more than the regular magic glow. I like that scanlines look more pronounced while still maintaining a high level of glow/brightness. You made your shader a bit more sexy with that feature there, almost feel like it was made just for me lol.
1 Like
I think I lost track of all the updates!
How far behind are the shaders from the online updater?
