New CRT shader - Any interest?

[beans]

@ComfyTsu Thanks! I have to admit, the mask is frustrating me. Subpixel masks look the best (and @hunterk already defined a ton of them!) , but they rely on knowing the resolution and subpixel layout of the screen, and that subpixel arrangement being appropriate for simulating a mask. They don’t work as intended on OLEDs because they have all different subpixel arrangements, sometimes pretty weird ones! Screens seem to be increasingly going OLED. Subpixel masks also don’t work as intended in TATE mode.

The other things I’ve tried so far really struggle if I want an accurate mask, especially at low resolutions. Masks are difficult because the detail is so fine that we are sometimes near (or past) the limit of what the screen can display.

I really wanted something that could be configured easily without having to know specific details about the user’s screen.

[hunterk]

yeah, if you want to get away from subpixel-aware masks, you’re stuck with either unpredictable subpixel behavior as the shader mask gets smaller than the monitor’s physical pixels can display, or just requiring really high resolution so you can flat-out draw the mask (megatron’s mask is like this).

[beans]

@NonWonderDog, I’m glad you’ve found it useful! I still have to look through your repo more thoroughly, but I have some comments and explanations. I apologize in advance for the wall of text here.

Wider resolution range (I’m sure there’s a good reason for scaling to 907 horizontal pixels, but by using half the display resolution instead I can use this shader for Darius or even SVGA.)

Basically, there is a tradeoff here. If you go too low, there can be 2 problems:

1. Not having enough samples to properly represent the bandwidth of the input (i.e. dropping below or too close to the Nyquist frequency). This can cause aliasing artifacts. I’ll skip over this for now, because it requires some math for each different output type. 907 is more than enough for 15kHz TV/monitor content.
2. Not having enough samples to properly estimate the integral for the scanlines. This is the bigger problem most of the time for 15kHz TV/monitor content (where the bandwidth is quite limited) and is why the default value isn’t lower. The smaller the spot/scanline is on the screen, the more samples will be needed. Basically, some number of samples must be in the borders of the spot, and so a higher sample density is required for smaller spots.

On the other hand, if you push the number of samples too high, the performance gets worse. For each pixel, the scanline code basically looks at any nearby samples that are close enough to affect the value of this pixel. If there are more samples overall, it looks at more samples for a proper estimation. This results in more lookups and more computation for each pixel. The number of lines and the spot size affect the performance as well. More lines and smaller spot sizes mean looking at fewer samples as a proportion of the total. So performance doesn’t actually suffer much if we only scale up the sample count with the line count.

The proper value for this parameter would be something like max(1.5 * 2 * Cutoff frequency * active line time, 3.5 * line count). The first value avoids problem 1, and the second value avoids problem 2. The 1.5 and 3.5 factors are kind of pulled out of my hat, but seem reasonable to me. Unfortunately, we can’t do this sort of math in .slangp files, so I set it to a reasonable number for content up to 6MHz and 240-288 lines while aiming for good performance. If we could set it dynamically, it should work for any resolution from CGA to SVGA and beyond while maintaining good performance.

The downside of using half the viewport width is that for low resolution devices (I’m thinking of the Steam deck, handhelds, and mobile phones), the sample count may be too low. For slow, high resolution devices (like a laptop or NUC connected to a 4k TV), the performance may suffer for no visible quality gain.

VGA line-doubling mode for DOS games.

This is a great idea, and I may be able to come up with a VGA preset that does line doubling like this, sets the sample count appropriately, and adjusts the filter for the VGA timings being different from NTSC/PAL.

Constant brightness regardless of scanline width (just a scale factor of 1/(scanline width)^2; I don’t know how physically-justifiable it is).

This may result in some tonality changes to the image. Basically, it may crush the highlights as pixel values get clipped. Currently, the very center of a full brightness scanline will be at full brightness (e.g., 1.0 or rgb(255)) even with smaller scanline widths. So the default is basically the brightest the image can be without changing the shape of a full brightness scanline.

I think if I wanted the image to be brighter, I would try applying some gamma function like pow(rgb, MaxSpotWidth). I’d have to do some more thinking to figure out what exactly would be appropriate. This will still taper off the highlights and change the tonality of the image, but it should at least avoid clipping because it still maps 1.0 to 1.0.

A semi-fixed scanline width mode that uses a reference resolution instead of matching the input resolution, so games that switch resolution don’t also switch monitors. (It scales with the square root of vertical lines, and seems to work fine even if scanlines overlap.)

I think this is an interesting idea and should make systems that can change the line count work properly.

The scanlines overlapping will cause some issues with scanline shape and image tonality. There are two issues, really:

• Currently, only the 2 nearest lines are used for finding a pixel’s value. If the scanlines overlap more, it should really consider the nearest 3 lines. If they overlap even more, it should consider the nearest 4 lines, and so on.
• When scanlines overlap more, the pixel values will increase above 1.0. Some sort of compensation needs to be done to bring the values back into range to avoid clipping.

Both of these are solvable problems if there is enough desire for this sort of configurability. There could be a substantial performance impact to using 3 lines instead of 2, though. It would basically make that part of the shader 50% slower, and that’s already the slow part.

Integration with the NTSC color fringing simulation from crt-guest-advanced-ntsc. A new shader I’ve written to combine a Famicom palette generator with crt-guest-advanced-ntsc for proper artifact colors in NES games (I should probably figure out how to contribute it over there…).

I have been thinking about NTSC simulation. There are some things that Themaister’s shaders (and guest’s, which are based on them) don’t do, if I understand the code correctly (and I may not!).

• The chroma filter is a simple notch filter instead of a comb filter, so the artifacts are often more severe and of a different character than on nicer TVs from the 90’s.
• Those shaders are also sensitive to the input resolution. The FIR filter coefficients are hard-coded based on the input resolution and I think that can be avoided, which would allow more resolutions to be used.
• Some subtleties of certain systems aren’t simulated. For example, the extra pixel that the SNES outputs every other frame, which offsets the chroma phase.

@PlainOldPants has an interesting NTSC shader, although I will admit that I don’t understand the code yet. I think a fairly simple and accurate NTSC shader (with a comb filter but without color correction) could be done in 3 passes.

Presets for various systems, including one that looks really good for PC-98 games

I noticed that you are using the NTSC shader for an S-Video preset. Do you find that to look better than just flipping the composite parameter in crt-beans and adjusting the I and Q bandwidths?

[NonWonderDog]

I’ll respond with my own wall of text, but basically I was just going for quick-and-dirty and artistic effect.

I figured 907 was chosen for performance/some calculation of the lowest you could get away with for a 15 kHz TV, and I didn’t test on anything less than 1080p. Just setting it to 0.5x works great even for triple monitor Darius at 5120x1440 (at least on a 2080 Super), though. It’s too bad it has to be baked into the preset, but it seems worth two presets just for that.

The VGA line-doubling is really only needed because DOSBox doesn’t do it (the PC-88/PC-98 emulators have it built-in). My code for it isn’t very clean, and it could probably be done almost entirely in the vertex shader for basically no performance cost, but it really does need to be dynamic, if just to avoid funny-looking text mode while the game loads.

The original 1/width factor causes wide gamma swings when you adjust the “minimum spot size” parameter. Setting it to 1/width^2 causes no noticeable gamma change whatsoever when you change that parameter, which seems like correct behavior and is more ergonomic even if it isn’t. It definitely crushes the highlights when you reduce the “maximum spot size”, though; there might be a way to make it more selective.

What you’re saying on overlapping scanlines makes sense, and I’m sure that doing it correctly would look different. Doing it quick and dirty already looks pretty good, though. The clipping is also fine. It’s soft-edged, so it just reads as bloom. Adding a mask also gives you more dynamic range to work with; in this screenshot the through-mask brightness is set to scale from 65% to 85% (variable mask strength was my addition to the ubiquitous subpixel mask sim), but the flare is pure white because the scanlines overlap and blow out the image. I think it looks quite nice, even if the mask isn’t terribly convincing in close-up:

(I’m actually not completely sure where in the code it lets the mask blow through like this… basically a happy accident.)

I tried and mostly failed to understand the NTSC shader, but I did confirm the lack of comb filter. I’m not sure that’s a downside, though. For one, online consensus seems to be that the NES (at least) just looks better on TVs without one. Secondly, a comb filter ultimately sacrifices temporal accuracy in favor of spacial accuracy. Since we’re adding the imperfections, that just seems unnecessary when we can just turn down the strength instead. Worst case is you spend a month writing the world’s worst motion-blur shader.

For S-Video, I didn’t actually compare back to back. Just went and looked at it, though, and sure enough setting it to YIQ mode in crt-beans does actually look a bit better (more pleasing gamma), and it’s obviously less arcane to tweak.

[md2mcb]

That’s great. GTU is a classic. I gave your shader a test, it’s shapening up to be good, although the defaults are too glowy and blurry, compared to GTU. Performance is around 20% slower, but not too shabby, considering you plan to add new features. I’ve found, however, an issue: on Dolphin, your shader zooms in the picture. Here:

[NonWonderDog]

I noticed this too, and I couldn’t figure out where to fix it. As far as I can tell, Dolphin presents the image to the shader after scaling it to screen size. The shader is only intended to work with an image at the source resolution, so even if whatever’s going wrong was fixed it still wouldn’t do anything useful.

[NonWonderDog]

All it takes is adding a shader pass that forces 640x480 absolute. I’ve added a preset to my fork (current mainline doesn’t do 480p).

[beans]

@NonWonderDog I’ve had some time to look at your fork, and I originally misunderstood what you were doing with the 1/width^2 factor. Your 1/width^2 is correct, and I had made a mistake projecting the spot function onto 2 dimensions. There is actually another mistake that somewhat compensated for this but clips and crushes the highlights when the maximum spot size is reduced. I’ve fixed both and the result looks better, and usually brighter.

I also wrote a test to make sure the tonality of the image is preserved. I probably should have done this before! I generated full-screen, solid-color images of varying brightness levels, ran them through the simulator, then got the average brightness. If the maximum spot size is 1.0, they should have equal brightness as the input images (compensating for CRT gamma). This is what it looked like before, with the input brightness on the x-axis and the output brightness on the y-axis. Each image is a dot:

This is what it looks like with the fix:

So thank you for pointing out my mistake! I’ll clean up, commit, and push some time soon, as well as generate another archive to download. I’m a little short on time currently.

Oh, and I can’t test the Dolphin core because it crashes on my installation (something about not being linked properly to libbz2—I haven’t really spent any time looking into it).

[beans]

For one, online consensus seems to be that the NES (at least) just looks better on TVs without one. Secondly, a comb filter ultimately sacrifices temporal accuracy in favor of spacial accuracy. Since we’re adding the imperfections, that just seems unnecessary when we can just turn down the strength instead. Worst case is you spend a month writing the world’s worst motion-blur shader.

A comb filter doesn’t necessarily have a temporal, inter-frame component. My understanding is that most comb filters were simple 2-line or 3-line filters, and later 2D adaptive filters. Only the 3D adaptive filters in the very late model TVs used anything outside the current frame (or field or whatever).

There are times when a comb filter won’t work well, though. Lots of old systems (like the Mega Drive/Genesis) didn’t shift the chroma phase between lines at all, which defeats the comb filter. Maybe an argument could be made that there isn’t much point in adding one.

[beans]

I’ve updated the repository with the fixes and test. The glow is also less strong by default. I haven’t split out a basic version yet.

I’ve created a new zip file here (direct link).

Here are some quick screenshots with the default settings.

[beans]

I’ve been experimenting with masks. I have some subpixel masks implemented in the shader (not updated on GitHub yet).

One of the main issues with masks is keeping the brightness high enough. What I settled on doing was pretty simple: let each pixel get as bright as it could with the mask at full strength, and then blend in the original, un-masked image if it needs to get brighter than the mask would allow. This allows masking with no brightness penalty, although brighter sections of the image will have a weaker mask pattern. It also preserves the tonality of the image, so I don’t have to resort to things like messing with the gamma or raising the midtones.

Here are some images with an aperture grille at three different resolutions. I recommend viewing them at their original size or the mask will look messed up.

EDIT: I should mention that these images are for RGB subpixels. BGR is also easy to support. OLED subpixel structures are… complicated.

[kokoko3k]

Very nice looking!

I did something like thay by pushing the input signal gain to 3x to fully exploit rgb mask, and then help it by adding the original color.

However I found that the display itself has to be very well calibrated to support this theory behind, otherwise you get evident discontinuity (seen with a simple bw gradient) when starting to add the “helper” color to the mask.

But I think your implementation differs or maybe you didn’t aimed for full brightness, as I see that the white shirt retains some of the mask (?).

[beans]

@kokoko3k, Thanks! I remember you talking about that on the Discord (and I sent an image of my own experiment).

Here’s what I ended up doing:

vec3 mask(vec3 pixel_value) {
    // I removed some overscan stuff here to make it simpler to read...
    vec3 mask = vec3(1.0);
    float mask_coverage = 1.0;
    if (params.SubpixelMaskPattern == 2.0) {  // <=1080p
        vec3[2] mask_tile = { vec3(1, 0, 1), vec3(0, 1, 0) };
        mask = mask_tile[int(mod(floor(viewport_x_coord * params.OutputSize.x), 2.0))];
        mask_coverage = 2.0;
    } else if (params.SubpixelMaskPattern == 3.0) {  // 1080p/1440p
        vec3[3] mask_tile = { vec3(0, 0, 1), vec3(0, 1, 0), vec3(1, 0, 0) };
        mask = mask_tile[int(mod(floor(viewport_x_coord * params.OutputSize.x), 3.0))];
        mask_coverage = 3.0;
    } else if (params.SubpixelMaskPattern == 4.0) {  // 1440p/4k
        vec3[4] mask_tile = { vec3(1, 0, 0), vec3(1, 1, 0), vec3(0, 1, 1), vec3(0, 0, 1) };
        mask = mask_tile[int(mod(floor(viewport_x_coord * params.OutputSize.x), 4.0))];
        mask_coverage = 2.0;
    } else if (params.SubpixelMaskPattern == 5.0) {  // 4k, lower TVL
        vec3[5] mask_tile = { vec3(1, 0, 0), vec3(1, 0, 1), vec3(0, 0, 1), vec3(0, 1, 0), vec3(0, 1, 0) };
        mask = mask_tile[int(mod(floor(viewport_x_coord * params.OutputSize.x), 5.0))];
        mask_coverage = 15.0 / 6.0;
    }
    // For BGR subpixel arrangement, just transpose red and blue.

    // Piecewise phase-in. The original image starts phasing in only when we've
    // maxed the brightness we can get from our masked image.
    float s = mask_coverage / (mask_coverage - 1.0);
    vec3 weight = clamp(-s * pixel_value + s, 0.0, 1.0);
    return pixel_value * ((1 - weight) + mask_coverage * mask * weight);
}

In practice, I don’t really notice the discontinuity. If the area where the original image starts to phase in is noticeable, I had a backup plan:

// Cubic phase-in. Ramps up the mask to higher strength faster than linear
// but has no discontinuity like piecewise.
float s = mask_coverage / (mask_coverage - 1);
float a = -s + 2.0;
float b = s - 3.0;
vec3 weight = a * pow(pixel_value, 3.0) + b * pow(pixel_value, 2.0) + 1.0;
return pixel_value * ((1 - weight) + mask_coverage * mask * weight);

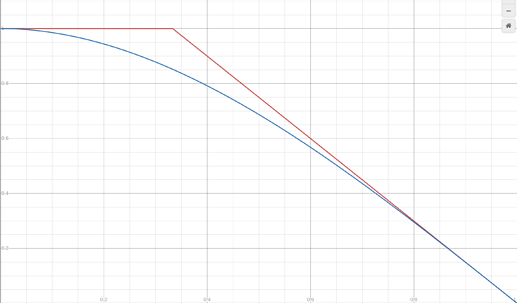

This looks pretty similar but has no discontinuity. Here’s the graph of the mask strength (on the y-axis) and the pixel value (on the x-axis) for mask_coverage = 3. Red is the piecewise phase-in and blue is the cubic.

And here’s a gradient with the piecewise phase-in on the top and the cubic on the bottom. It’s 4k and I recommend viewing at native resolution (when it is rescaled you can definitely notice the discontinuity).

But I think your implementation differs or maybe you didn’t aimed for full brightness, as I see that the white shirt retains some of the mask (?).

There are two reasons the white shirt retains some mask. One is that Genesis Plus GX doesn’t actually output full-scale white values. The other is that this is done per-pixel, and the scanline is brightest in the middle, so that’s the part that gets blown out first. The mask is retained at the edges. I was using a max spot width of 0.9, so the scanlines don’t completely touch. That does reduce the brightness slightly, but it’s the scanlines reducing the brightness, not the mask. At a max spot width of 1.0, they’d merge if the values on those lines were full-scale white and the mask would not be visible. Hopefully that makes sense.

[kokoko3k]

Yup, I remember (now )

By manually altering the gamma of my display, the upper gradient slowly starts to show the trick, while, as expected, the lower one is much more robust.

I’d been curious to see how a simpler RGB mask performs at 1080p to compare to mine.

Btw great achivement, congrats!

[beans]

Here are the same gradients with a BGR, 3-pixel mask at 1080p. I prefer BGR for RGB panels because it leaves more of a gap between each phosphor triad, even if it does switch blue and red. This is generated for true sRGB monitors (with the linear portion in the darker region, not simple 2.2 gamma).

The 1080p Streets of Rage screenshot above is the same 3-pixel mask.

[beans]

I have new shader files here (direct link to zip).

I’d say this is a pretty experimental release. It contains a few things.

Mask support

The shaders now have basic mask support. Currently only aperture grille is supported, and only for monitors with RGB or BGR subpixel arrangements. There is no “mask strength” parameter yet. Masks fade out as the area gets brighter so that they do not reduce the total brightness at all. (@kokoko3k, I ended up using the cubic blending as a “safer” default option.)

New presets: crt-beans-rgb and crt-beans-svideo

The original shader is now used in two preset files: crt-beans-rgb.slangp and crt-beans-svideo.slangp. They are the same set of shaders, but the S-Video preset has the low pass filter tuned to simulate S-Video signal bandwidth. Different consoles may have output signals with different bandwidths, so I just sort of picked some values that seemed like a reasonable default.

New preset: crt-beans-gaussian

There is a new crt-beans-gaussian.slangp preset. This is similar to the previous RGB preset, but uses a gaussian shape for the CRT spot. I would guess that this is more accurate to real CRTs. The image is slightly blurrier than the RGB preset because the gaussian has fatter tails.

The major advantage of this is that the spot width (and thus the scanline width) can be pushed to 1.2. You can basically get fatter, more overlapping lines. This allows simulating smaller, lower quality CRTs. The normal RGB preset doesn’t work properly with widths above 1.0 (that’s just a mathematical consequence of the spot function it uses).

The disadvantage is that the gaussian preset is much slower than the RGB preset. Because the gaussian’s tails are fatter, each area affects more pixels around it, which means a lot more texture samples are necessary. The scanline pass itself takes about 2x the time of the original, and I’d guess the whole shader takes about 1.6x the time of the original (I don’t have the numbers in front of me, currently).

New preset: crt-beans-monitor (no low pass filter)

There is a new crt-beans-monitor.slangp preset. The goal of this preset is to allow inputs other than 240p/480i or 288p/576i (basically, other than 15khz television). Thus the “monitor” name—it can be used for content at vga/480p and beyond.

This is a little complicated to explain. The original shader can’t be used without the low pass filter. It solves the scanline integral numerically, which requires the low pass filter to resample the input. This new preset solves the scanline integral analytically, which, conversely, requires that there is no resampling of the input. The input is interpreted as a piecewise-constant function and the integral is solved in pieces.

When resampling, I need to pick a number of samples to output for each line (a new image width, basically). The number of samples required changes based on the number of lines there are (the input image height). Unfortunately there is no way to do this within the limits of the slangp preset format. This, and another subtle issue with the presentation of the low pass frequencies parameters, led me to remove the low pass filter as a way to accommodate higher input resolutions.

There are two downsides to this. First is that there is no low pass filter, so you lose that capability. The output is a bit sharper horizontally than it probably should be. Second is that it is slightly slower. The analytical solution generally requires fewer texture samples but significantly more math. The worst performance is for very elongated pixel aspect ratios. For example, a 640x240 input will lead to worse performance than a 640x480 input.

Final thoughts

I may be able to upload some sample images tomorrow (the Streets of Rage screenshots above are pretty representative of the RGB preset).

I don’t know if there is really any interest in the gaussian or monitor presets. They might end up being a bit more confusing. They were interesting to make, though!

[Cyber]

@beans

OLED subpixel structures are… complicated.

No need to reinvent the wheel as we already have Mask Layouts which happen to work with W-OLED/RWGB subpixel structures in CRT-Guest-Advanced and Sony Megatron Color Video Monitor.

You can probably use those as a starting point but of course better, novel implementations are welcomed as well.

So far 4K W-OLED users seem to be covered but this doesn’t seem to carry over to 1440p displays for whatever reason.

I’ll share the posts which led to Sony Megatron Color Video Monitor gaining the RWGB Display Subpixel Layout.

Sony Megatron Colour Video Monitor

Just wanted to share a possible breakthrough when it comes to OLED TVs and CRT shader masks. They seem to work best with BGR layout! Take a look at these results:

Sony Megatron Colour Video Monitor

Greetings @MajorPainTheCactus, I think this response might have been intended for @faxesystem. I’ve all but eliminated all of my issues with masks not displaying correctly on my OLED TV using the appropriate mask and subpixel layout settings in CRT-Guest-Advanced. I’m almost sure they will also apply to your shader. I shared the link with my findings so you can follow. Hopefully with this knowledge you can finally update your guidance and start officially supporting OLED TVs just as LCD TVs. B…

Sony Megatron Colour Video Monitor

Well, after looking at @Wilch’s photos, I finally got around to revisiting Sony Megatron Color Video Monitor hoping to see the RGB subpixel spacing looking as even as it looks in CRT-Guest-Advanced’s Mask 12, Size 1 with reversed Layout which results in an RRBBGGX subpixel layout. Sony Megatron appears to use a BBGGRRX layout (or is it XBBGGRR layout) when Mask Layout is flipped, please correct me if I’m wrong both @guest.r and @MajorPainTheCactus. I didn’t take any pictures this time but I sh…

Sony Megatron Colour Video Monitor

It is supposed to be, however, there is a bit of a mystery surrounding @guest.r’s implementation. I’m not sure if it’s supposed to be some sort of secret sauce or not but his implementation seems a bit different when the mask is flipped (layout reversed). Yours is probably XBBGGRR but that still doesn’t produce good triads on LG OLED. @guest.r’s implementation when flipped does not produce XBBGGRR. It’s either RRBBGGX or XRRBBGG. This can be clearly seen in Slot Mask Presets. However in Apertu…

Sony Megatron Colour Video Monitor

Thanks! Ok so they’re WBGR i.e reversed RGBW which now explains why we’re seeing the reverse patterns look better. I’ll update the above patterns and see where we get to but I’m guessing it’ll be XBBGGRR is best then RRGGBB as that’s the opposite layouts of the results above. EDIT: I’ll stick with RTings image of starting with Red i.e RWBG but it shouldnt make any difference to the spacing as it’s just starting in the reversed pattern in a different position.

Sony Megatron Colour Video Monitor

Sony Megatron Color Video Monitor, Aperture Grille - RRBBGGX LG 55OLEDE6P [20220813_202609] [20220813_202930] [20220813_203008] Any questions?

OLED subpixels. How do they work?

Right, so it should fetch a higher resale value if you sell it to buy that new TV! Lol I could be wrong but weren’t older (or at least some) LG OLED panels WOLED with WRGB layout with all white OLEDs in the back layer shining through an RGB filter as described here? If so, then one of those models might be a nice alternative except that they most definitely won’t have 120hz input and BFI. What’s the difference between RGB, RGBW, and WRGB pixels? This explains something @Nesguy has been say…

[kokoko3k]

@Cyber

No need to reinvent the wheel

Otoh, sometimes reinventing the wheel may lead to a rounder wheel

[Cyber]

@kokoko3k

Otoh, sometimes reinventing the wheel may lead to a rounder wheel

I agree, that’s why I included this part:

@Cyber

You can probably use those as a starting point but of course better, novel implementations are welcomed as well.

So far 4K W-OLED users seem to be covered but this doesn’t seem to carry over to 1440p displays for whatever reason.

[beans]

Thanks, I will take a look at those posts. There won’t be any reinventing the wheel here—I don’t have an OLED display so I can’t even test any of these. And I assume nobody has any subpixels masks figured out for QD-OLEDs or small pentile OLEDs. It doesn’t really seem possible.
