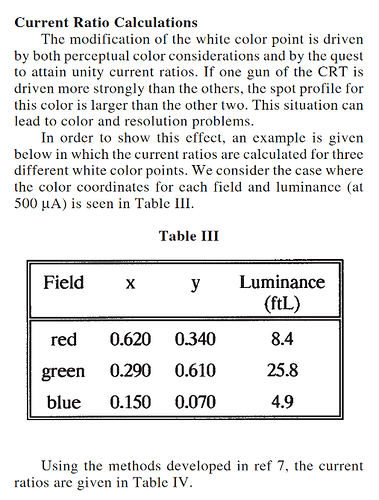

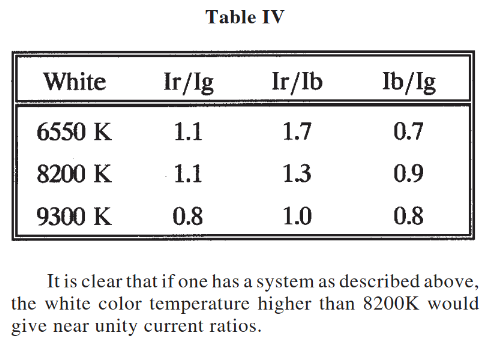

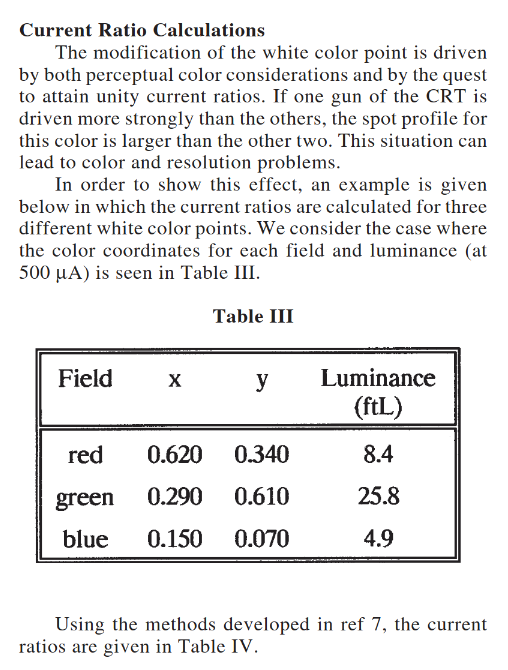

A big part is this information from up here:
That explains this:
That’s kind of the “easy” part. The hard part is understanding how the bleed actually works at a hardware level. My current best guess is that the bleed to the right is just whatever amount of voltage/current went over the maximum limit.
I haven’t read the comments, but I’m inclined to believe that this is caused by even slight amounts of RF noise.
About the images which you’ve shared, those make it hard to tell the difference between chroma lowpass/bandpass and actual bright red/blue bleed. Both affect red and blue more than green. The former is normal and is already being partly emulated by FIR filters (“partly” because I believe a “complete” implementation should be more similar to the inductor/capacitor filters on real hardware which delayed things to the right). As for the red/blue high voltage/current bleed effect, that’s caused by an entirely different kind of electrical component, and it only happens if contrast is set insanely high (often due to wear, aging, or the end user not knowing any better). These images don’t look applicable.
Here are some links I just copied from an older post of mine.
https://www.reddit.com/r/crtgaming/comments/ihes5m/does_this_color_issue_mean_my_crt_is_going_out/ https://web.archive.org/web/20220826091650/https://i.imgur.com/At0tRng.jpg 2 https://www.reddit.com/r/explainlikeimfive/comments/7xk1ll/eli5_why_do_some_crt_tvs_have_color_bleed/
