Royale style crt-guest-advanced preset

RetroArch Additions Shaders
#1

I did try to make crt-guest-advanced act like CRT-Royale with Diffusion Weight = 0 since there are still many people think it’s the best

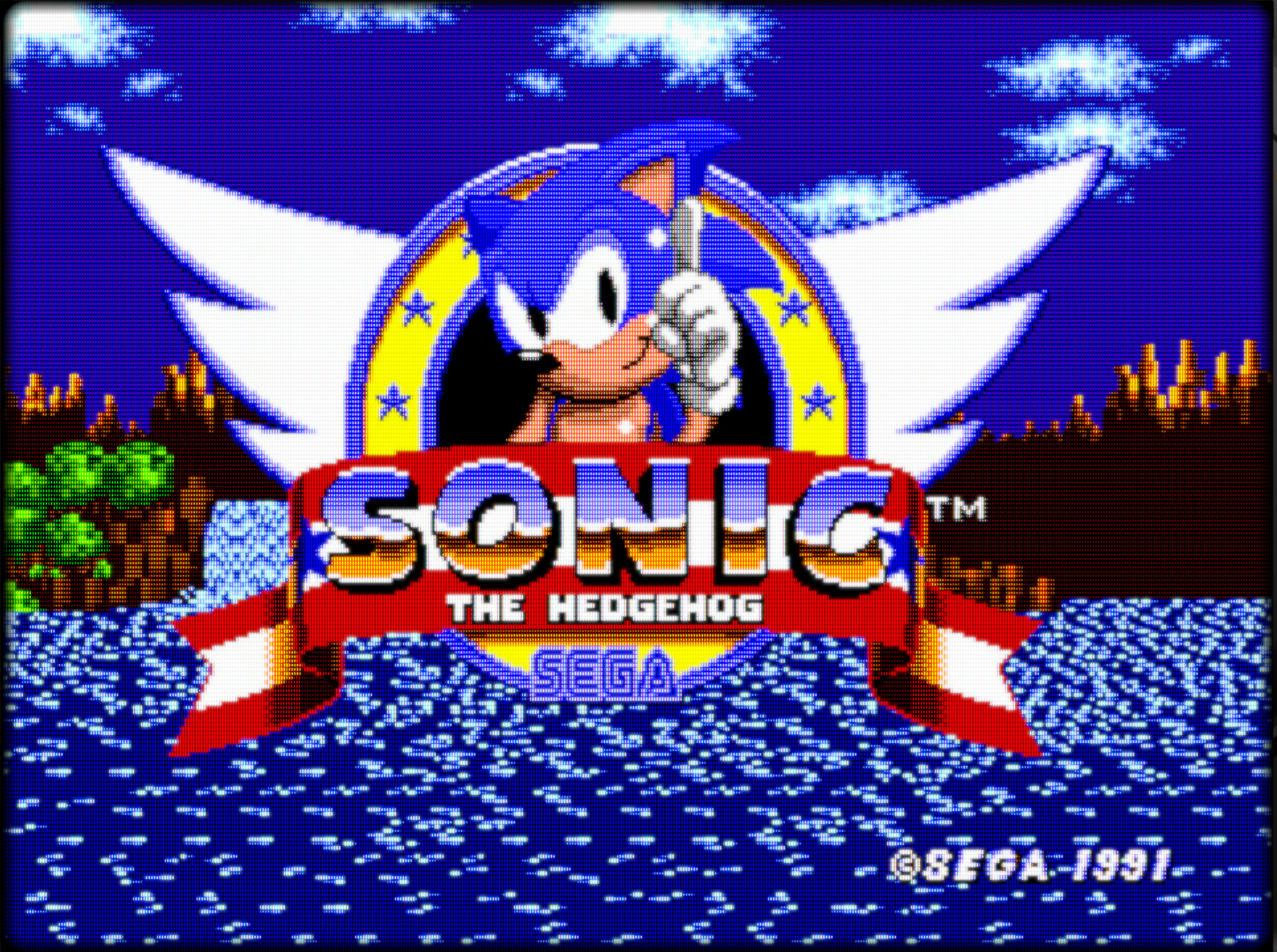

CRT-Royale
CRT-Royale1435×1080 2.21 MB

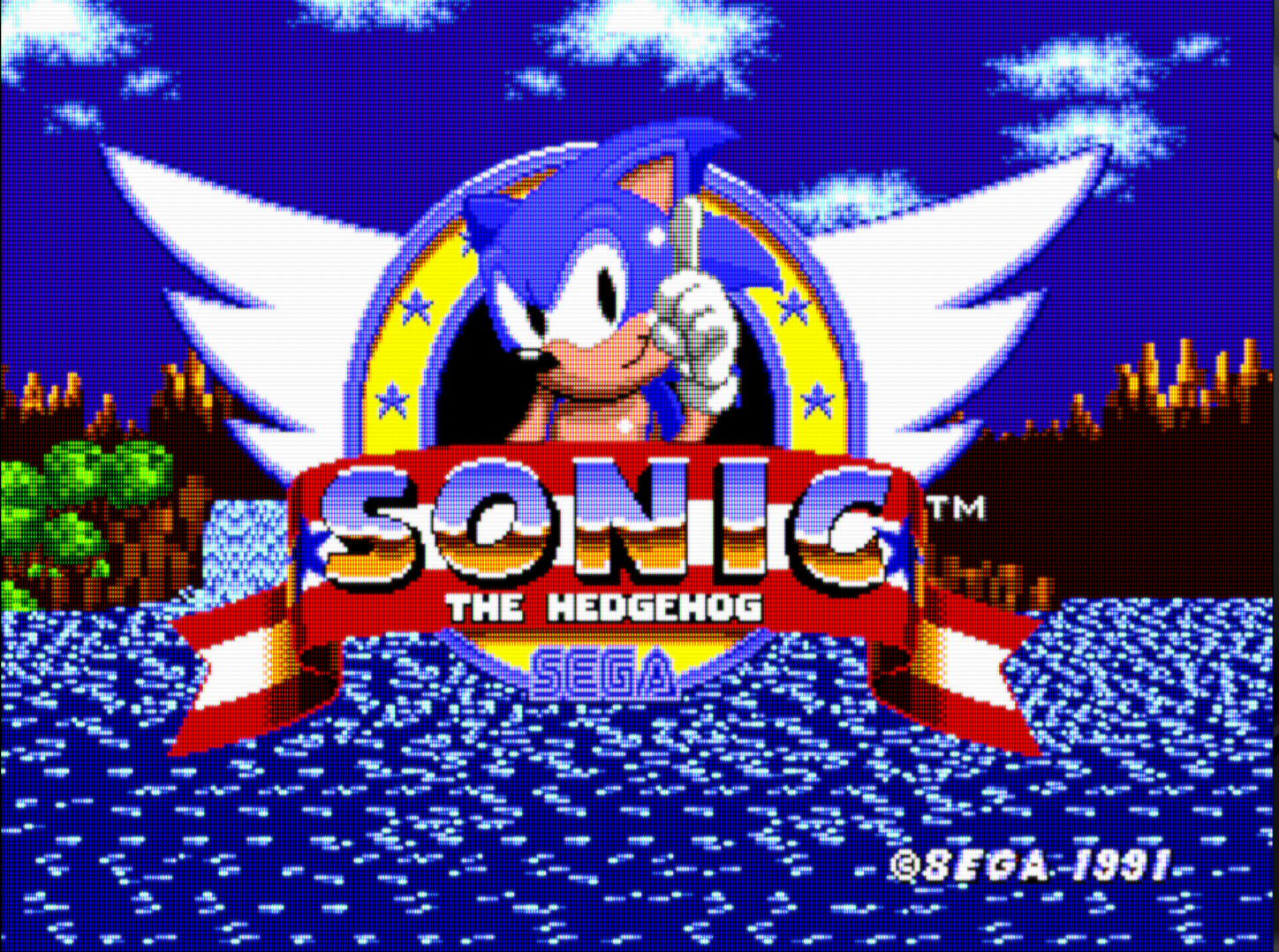

crt-guest-advanced royale like
crt-guest-advanced royale like1445×1080 1.69 MB

shaders = "12"
shader0 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear0 = "false"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear1 = "false"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = "StockPass"
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = "AfterglowPass"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear3 = "false"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "true"
alias3 = "PrePass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/avg-lum.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "true"
alias4 = "AvgLumPass"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/linearize.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "LinearizePass"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear6 = "true"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = ""
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "absolute"
scale_x6 = "800"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = "GlowPass"
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "absolute"
scale_x7 = "800"
scale_type_y7 = "absolute"
scale_y7 = "600"
shader8 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = ""
float_framebuffer8 = "true"
srgb_framebuffer8 = "false"
scale_type_x8 = "absolute"
scale_x8 = "800"
scale_type_y8 = "absolute"
scale_y8 = "600"
shader9 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = "BloomPass"
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
alias10 = ""
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "viewport"
scale_x10 = "1.000000"
scale_type_y10 = "viewport"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/deconvergence.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
alias11 = ""
float_framebuffer11 = "false"
srgb_framebuffer11 = "false"
scale_type_x11 = "viewport"
scale_x11 = "1.000000"
scale_type_y11 = "viewport"
scale_y11 = "1.000000"
m_glow = "2.000000"
m_glow_low = "3.000000"
m_glow_high = "5.500000"
m_glow_mask = "0.000000"
FINE_GLOW = "3.000000"
SIZEH = "2.000000"
SIGMA_H = "5.000000"
SIZEV = "2.000000"
SIGMA_V = "5.000000"
FINE_BLOOM = "5.000000"
SIZEHB = "2.000000"
SIZEVB = "2.000000"
bloom = "-0.250000"
mask_bloom = "-0.500000"
bloom_dist = "0.500000"
bmask1 = "-0.500000"
hmask1 = "-0.000000"
brightboost = "1.200000"
brightboost1 = "1.400000"
gsl = "-1.000000"
scanline1 = "5.000000"
scanline2 = "20.000000"
beam_min = "1.500000"
beam_max = "0.800000"
tds = "1.000000"
beam_size = "1.000000"
scans = "4.000002"
scan_falloff = "0.750000"
spike = "0.000000"
shadowMask = "6.000000"
maskstr = "1.000000"
maskboost = "3.000000"
slotmask = "0.500000"
slotmask1 = "0.500000"
smoothmask = "1.000000"
smask_mit = "0.500000"
pr_scan = "0.500000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_linear = "true"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_linear = "true"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_linear = "true"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_linear = "true"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"

it’s not perfect, any improvement are welcome

I know there are New CRT shader from Guest + CRT Guest Advanced updates and New CRT shader from Guest + CRT Guest Advanced updates but they not perfect either (at least with 1080 screen)

I hope we can get like 99% similar

3 Likes
#2

getting closer?

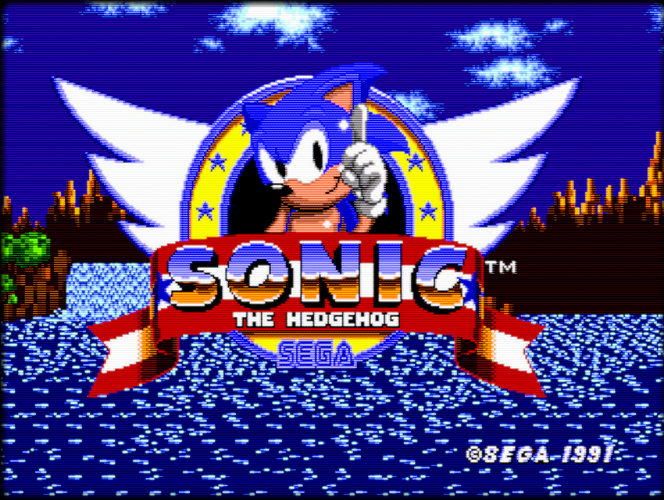

r
r1436×1080 2.2 MB
5g0
5g01446×1080 1.66 MB

shaders = "12"
shader0 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear0 = "false"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear1 = "false"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = "StockPass"
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = "AfterglowPass"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear3 = "false"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "true"
alias3 = "PrePass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/avg-lum.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "true"
alias4 = "AvgLumPass"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/linearize.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "LinearizePass"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear6 = "true"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = ""
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "absolute"
scale_x6 = "800"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = "GlowPass"
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "absolute"
scale_x7 = "800"
scale_type_y7 = "absolute"
scale_y7 = "600"
shader8 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = ""
float_framebuffer8 = "true"
srgb_framebuffer8 = "false"
scale_type_x8 = "absolute"
scale_x8 = "800"
scale_type_y8 = "absolute"
scale_y8 = "600"
shader9 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = "BloomPass"
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
alias10 = ""
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "viewport"
scale_x10 = "1.000000"
scale_type_y10 = "viewport"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/deconvergence.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
alias11 = ""
float_framebuffer11 = "false"
srgb_framebuffer11 = "false"
scale_type_x11 = "viewport"
scale_x11 = "1.000000"
scale_type_y11 = "viewport"
scale_y11 = "1.000000"
m_glow = "2.000000"
m_glow_low = "5.000000"
m_glow_high = "7.000000"
m_glow_mask = "0.000000"
FINE_GLOW = "3.000000"
SIZEH = "2.000000"
SIGMA_H = "5.000000"
SIZEV = "2.000000"
SIGMA_V = "5.000000"
FINE_BLOOM = "5.000000"
glow = "0.030000"
bloom = "-0.250000"
mask_bloom = "-0.500000"
bloom_dist = "0.500000"
bmask1 = "-0.500000"
hmask1 = "-0.000000"
brightboost1 = "1.200000"
gsl = "-1.000000"
scanline1 = "5.000000"
scanline2 = "20.000000"
beam_min = "1.500000"
beam_max = "0.700000"
tds = "1.000000"
beam_size = "0.750000"
scans = "2.000000"
scan_falloff = "0.500000"
shadowMask = "6.000000"
maskstr = "1.000000"
maskboost = "2.000000"
slotmask = "0.500000"
slotmask1 = "0.500000"
smoothmask = "0.500000"
smask_mit = "0.500000"
pr_scan = "0.500000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_linear = "true"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_linear = "true"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_linear = "true"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_linear = "true"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"

edit: even more closer?

r
r1448×1080 2.24 MB
t7
t71448×1078 1.76 MB

this time I did change CRT-Royale gamma both to 2.4 to match crt-guest-advanced for a fair comparison

shaders = "12"
shader0 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear0 = "false"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear1 = "false"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = "StockPass"
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = "AfterglowPass"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear3 = "false"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "true"
alias3 = "PrePass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/avg-lum.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "true"
alias4 = "AvgLumPass"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/linearize.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "LinearizePass"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/gaussian_horizontal.slang"
filter_linear6 = "true"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = ""
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "absolute"
scale_x6 = "800"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = "GlowPass"
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "absolute"
scale_x7 = "800"
scale_type_y7 = "absolute"
scale_y7 = "600"
shader8 = "shaders_slang/crt/shaders/guest/advanced/bloom_horizontal.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = ""
float_framebuffer8 = "true"
srgb_framebuffer8 = "false"
scale_type_x8 = "absolute"
scale_x8 = "800"
scale_type_y8 = "absolute"
scale_y8 = "600"
shader9 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
alias9 = "BloomPass"
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
alias10 = ""
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "viewport"
scale_x10 = "1.000000"
scale_type_y10 = "viewport"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/deconvergence.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
alias11 = ""
float_framebuffer11 = "false"
srgb_framebuffer11 = "false"
scale_type_x11 = "viewport"
scale_x11 = "1.000000"
scale_type_y11 = "viewport"
scale_y11 = "1.000000"
m_glow = "2.000000"
m_glow_low = "5.000000"
m_glow_high = "7.000000"
m_glow_mask = "0.000000"
FINE_GLOW = "3.000000"
SIZEH = "2.000000"
SIGMA_H = "5.000000"
SIZEV = "2.000000"
SIGMA_V = "5.000000"
FINE_BLOOM = "5.000000"
glow = "0.030000"
bloom = "-0.250000"
mask_bloom = "-0.400000"
bloom_dist = "0.500000"
halation = "-0.350000"
bmask1 = "-0.500000"
hmask1 = "0.750000"
gsl = "-1.000000"
scanline1 = "5.000000"
scanline2 = "20.000000"
beam_min = "1.500000"
beam_max = "0.700000"
tds = "1.000000"
beam_size = "0.750000"
scans = "2.000000"
scan_falloff = "0.500000"
shadowMask = "6.000000"
maskstr = "1.000000"
maskboost = "3.000000"
slotmask = "0.500000"
slotmask1 = "0.500000"
smoothmask = "0.500000"
smask_mit = "0.500000"
pr_scan = "0.500000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_linear = "true"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_linear = "true"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_linear = "true"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_linear = "true"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"
2 Likes
#3

I did made new “Jobima CRT Preset Royale like guest.slangp” (Hybrid with my preset Jobima crt guest advanced presets)

d

shaders = "19"
feedback_pass = "0"
shader0 = "shaders_slang/crt/shaders/crt-resswitch-glitch-koko.slang"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear1 = "false"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = ""
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = "StockPass"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear3 = "true"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
alias3 = "AfterglowPass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
alias4 = "PrePass0"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
filter_linear5 = "false"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "NPass1"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "4.000000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
filter_linear6 = "true"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = ""
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "0.500000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = ""
float_framebuffer7 = "false"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "1.000000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt/shaders/guest/advanced/custom-fast-sharpen.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = "NtscPass"
float_framebuffer8 = "false"
srgb_framebuffer8 = "false"
scale_type_x8 = "source"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "true"
alias9 = "PrePass"
float_framebuffer9 = "false"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/avg-lum-ntsc.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "true"
alias10 = "AvgLumPass"
float_framebuffer10 = "false"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "1.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/linearize-ntsc.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
alias11 = "LinearizePass"
float_framebuffer11 = "true"
srgb_framebuffer11 = "false"
scale_type_x11 = "source"
scale_x11 = "1.000000"
scale_type_y11 = "source"
scale_y11 = "1.000000"
shader12 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
filter_linear12 = "true"
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
alias12 = "Pass1"
float_framebuffer12 = "true"
srgb_framebuffer12 = "false"
scale_type_x12 = "viewport"
scale_x12 = "1.000000"
scale_type_y12 = "source"
scale_y12 = "1.000000"
shader13 = "shaders_slang/crt/shaders/guest/hd/gaussian_horizontal.slang"
filter_linear13 = "true"
wrap_mode13 = "clamp_to_border"
mipmap_input13 = "false"
alias13 = ""
float_framebuffer13 = "true"
srgb_framebuffer13 = "false"
scale_type_x13 = "absolute"
scale_x13 = "800"
scale_type_y13 = "source"
scale_y13 = "1.000000"
shader14 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear14 = "true"
wrap_mode14 = "clamp_to_border"
mipmap_input14 = "false"
alias14 = "GlowPass"
float_framebuffer14 = "true"
srgb_framebuffer14 = "false"
scale_type_x14 = "absolute"
scale_x14 = "800"
scale_type_y14 = "absolute"
scale_y14 = "600"
shader15 = "shaders_slang/crt/shaders/guest/hd/bloom_horizontal.slang"
filter_linear15 = "true"
wrap_mode15 = "clamp_to_border"
mipmap_input15 = "false"
alias15 = ""
float_framebuffer15 = "true"
srgb_framebuffer15 = "false"
scale_type_x15 = "absolute"
scale_x15 = "800"
scale_type_y15 = "absolute"
scale_y15 = "600"
shader16 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear16 = "true"
wrap_mode16 = "clamp_to_border"
mipmap_input16 = "false"
alias16 = "BloomPass"
float_framebuffer16 = "true"
srgb_framebuffer16 = "false"
scale_type_x16 = "absolute"
scale_x16 = "800"
scale_type_y16 = "absolute"
scale_y16 = "600"
shader17 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced-ntsc-pass2.slang"
filter_linear17 = "true"
wrap_mode17 = "clamp_to_border"
mipmap_input17 = "false"
alias17 = ""
float_framebuffer17 = "true"
srgb_framebuffer17 = "false"
scale_type_x17 = "viewport"
scale_x17 = "1.000000"
scale_type_y17 = "viewport"
scale_y17 = "1.000000"
shader18 = "shaders_slang/crt/shaders/guest/advanced/deconvergence-ntsc.slang"
filter_linear18 = "true"
wrap_mode18 = "clamp_to_border"
mipmap_input18 = "false"
alias18 = ""
float_framebuffer18 = "false"
srgb_framebuffer18 = "false"
scale_type_x18 = "viewport"
scale_x18 = "1.000000"
scale_type_y18 = "viewport"
scale_y18 = "1.000000"
AS = "0.050000"
cust_artifacting = "0.200000"
cust_fringing = "0.100000"
ntsc_scale = "1.025000"
ntsc_rainbow1 = "2.000000"
ntsc_taps = "8.000000"
ntsc_charp = "5.000000"
ntsc_charp3 = "5.000000"
ntsc_cscale = "0.950000"
ntsc_cscale1 = "0.950000"
ntsc_ring = "1.000000"
ntsc_sharp = "-0.500000"
ntsc_shape = "0.500000"
CSHARPEN = "1.000000"
CCONTR = "0.150000"
CDETAILS = "0.750000"
DEBLUR = "1.250000"
lsmooth = "0.800000"
GAMMA_INPUT = "2.200000"
gamma_out = "2.146000"
S_SHARP = "0.500000"
HARNG = "0.050000"
m_glow = "2.000000"
m_glow_low = "5.000000"
m_glow_high = "7.000000"
m_glow_mask = "0.000000"
FINE_GLOW = "3.000000"
SIZEH = "2.000000"
SIGMA_H = "5.000000"
SIZEV = "2.000000"
SIGMA_V = "5.000000"
FINE_BLOOM = "5.000000"
glow = "0.030000"
bloom = "-0.250000"
mask_bloom = "-0.400000"
bloom_dist = "0.500000"
halation = "-0.350000"
bmask1 = "-0.500000"
hmask1 = "0.750000"
gamma_c2 = "1.025100"
gsl = "-1.000000"
scanline1 = "5.000000"
scanline2 = "20.000000"
beam_min = "1.500000"
beam_max = "0.700000"
tds = "1.000000"
beam_size = "0.750000"
scans = "2.000000"
scan_falloff = "0.500000"
scangamma = "2.450000"
BLOOM = "1.000000"
shadowMask = "6.000000"
maskstr = "1.000000"
maskboost = "3.000000"
mshift = "0.500000"
mask_gamma = "2.450000"
slotmask = "0.500000"
slotmask1 = "0.500000"
smoothmask = "0.500000"
smask_mit = "0.500000"
pr_scan = "0.500000"
maskmid = "0.500000"
edgemask = "0.500000"
dctypex = "0.500000"
dctypey = "0.500000"
deconrr = "1.000000"
deconrb = "-0.750000"
deconrry = "0.500000"
deconrgy = "-0.250000"
addnoised = "0.020000"
post_br = "1.010000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"

here is the 4X one

shaders = "19"
feedback_pass = "0"
shader0 = "shaders_slang/crt/shaders/crt-resswitch-glitch-koko.slang"
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
alias0 = ""
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear1 = "false"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
alias1 = ""
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear2 = "false"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
alias2 = "StockPass"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt/shaders/guest/advanced/afterglow0.slang"
filter_linear3 = "true"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
alias3 = "AfterglowPass"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt/shaders/guest/advanced/pre-shaders-afterglow.slang"
filter_linear4 = "true"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
alias4 = "PrePass0"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "1.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
filter_linear5 = "true"
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
alias5 = "NPass1"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "0.250000"
shader6 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
filter_linear6 = "true"
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
alias6 = ""
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "0.850000"
scale_type_y6 = "source"
scale_y6 = "1.500000"
shader7 = "shaders_slang/crt/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
filter_linear7 = "true"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
alias7 = ""
float_framebuffer7 = "false"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "1.000000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt/shaders/guest/advanced/custom-fast-sharpen.slang"
filter_linear8 = "true"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
alias8 = "NtscPass"
float_framebuffer8 = "false"
srgb_framebuffer8 = "false"
scale_type_x8 = "source"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt/shaders/guest/advanced/stock.slang"
filter_linear9 = "true"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "true"
alias9 = "PrePass"
float_framebuffer9 = "false"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt/shaders/guest/advanced/avg-lum-ntsc.slang"
filter_linear10 = "true"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "true"
alias10 = "AvgLumPass"
float_framebuffer10 = "false"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "1.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt/shaders/guest/advanced/linearize-ntsc.slang"
filter_linear11 = "true"
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
alias11 = "LinearizePass"
float_framebuffer11 = "true"
srgb_framebuffer11 = "false"
scale_type_x11 = "source"
scale_x11 = "1.000000"
scale_type_y11 = "source"
scale_y11 = "1.000000"
shader12 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
filter_linear12 = "true"
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
alias12 = "Pass1"
float_framebuffer12 = "true"
srgb_framebuffer12 = "false"
scale_type_x12 = "viewport"
scale_x12 = "1.000000"
scale_type_y12 = "source"
scale_y12 = "1.000000"
shader13 = "shaders_slang/crt/shaders/guest/hd/gaussian_horizontal.slang"
filter_linear13 = "true"
wrap_mode13 = "clamp_to_border"
mipmap_input13 = "false"
alias13 = ""
float_framebuffer13 = "true"
srgb_framebuffer13 = "false"
scale_type_x13 = "absolute"
scale_x13 = "800"
scale_type_y13 = "source"
scale_y13 = "1.000000"
shader14 = "shaders_slang/crt/shaders/guest/advanced/gaussian_vertical.slang"
filter_linear14 = "true"
wrap_mode14 = "clamp_to_border"
mipmap_input14 = "false"
alias14 = "GlowPass"
float_framebuffer14 = "true"
srgb_framebuffer14 = "false"
scale_type_x14 = "absolute"
scale_x14 = "800"
scale_type_y14 = "absolute"
scale_y14 = "600"
shader15 = "shaders_slang/crt/shaders/guest/hd/bloom_horizontal.slang"
filter_linear15 = "true"
wrap_mode15 = "clamp_to_border"
mipmap_input15 = "false"
alias15 = ""
float_framebuffer15 = "true"
srgb_framebuffer15 = "false"
scale_type_x15 = "absolute"
scale_x15 = "800"
scale_type_y15 = "absolute"
scale_y15 = "600"
shader16 = "shaders_slang/crt/shaders/guest/advanced/bloom_vertical.slang"
filter_linear16 = "true"
wrap_mode16 = "clamp_to_border"
mipmap_input16 = "false"
alias16 = "BloomPass"
float_framebuffer16 = "true"
srgb_framebuffer16 = "false"
scale_type_x16 = "absolute"
scale_x16 = "800"
scale_type_y16 = "absolute"
scale_y16 = "600"
shader17 = "shaders_slang/crt/shaders/guest/advanced/crt-guest-advanced-ntsc-pass2.slang"
filter_linear17 = "true"
wrap_mode17 = "clamp_to_border"
mipmap_input17 = "false"
alias17 = ""
float_framebuffer17 = "true"
srgb_framebuffer17 = "false"
scale_type_x17 = "viewport"
scale_x17 = "1.000000"
scale_type_y17 = "viewport"
scale_y17 = "1.000000"
shader18 = "shaders_slang/crt/shaders/guest/advanced/deconvergence-ntsc.slang"
filter_linear18 = "true"
wrap_mode18 = "clamp_to_border"
mipmap_input18 = "false"
alias18 = ""
float_framebuffer18 = "false"
srgb_framebuffer18 = "false"
scale_type_x18 = "viewport"
scale_x18 = "1.000000"
scale_type_y18 = "viewport"
scale_y18 = "1.000000"
AS = "0.050000"
cust_artifacting = "0.200000"
cust_fringing = "0.100000"
ntsc_scale = "0.275000"
ntsc_rainbow1 = "2.000000"
ntsc_taps = "8.000000"
ntsc_charp = "5.000000"
ntsc_charp3 = "5.000000"
ntsc_cscale = "0.950000"
ntsc_cscale1 = "0.950000"
ntsc_ring = "1.000000"
ntsc_sharp = "-0.500000"
ntsc_shape = "0.500000"
CSHARPEN = "1.000000"
CCONTR = "0.150000"
CDETAILS = "0.750000"
DEBLUR = "1.250000"
lsmooth = "0.800000"
GAMMA_INPUT = "2.200000"
gamma_out = "2.146000"
intres = "4.000000"
S_SHARP = "0.500000"
HARNG = "0.050000"
m_glow = "2.000000"
m_glow_low = "5.000000"
m_glow_high = "7.000000"
m_glow_mask = "0.000000"
FINE_GLOW = "3.000000"
SIZEH = "2.000000"
SIGMA_H = "5.000000"
SIZEV = "2.000000"
SIGMA_V = "5.000000"
FINE_BLOOM = "5.000000"
glow = "0.030000"
bloom = "-0.250000"
mask_bloom = "-0.400000"
bloom_dist = "0.500000"
halation = "-0.350000"
bmask1 = "-0.500000"
hmask1 = "0.750000"
gamma_c2 = "1.025100"
gsl = "-1.000000"
scanline1 = "5.000000"
scanline2 = "20.000000"
beam_min = "1.500000"
beam_max = "0.700000"
tds = "1.000000"
beam_size = "0.750000"
scans = "2.000000"
scan_falloff = "0.500000"
scangamma = "2.450000"
BLOOM = "1.000000"
shadowMask = "6.000000"
maskstr = "1.000000"
maskboost = "3.000000"
mshift = "0.500000"
mask_gamma = "2.450000"
slotmask = "0.500000"
slotmask1 = "0.500000"
smoothmask = "0.500000"
smask_mit = "0.500000"
pr_scan = "0.500000"
maskmid = "0.500000"
edgemask = "0.500000"
dctypex = "0.500000"
dctypey = "0.500000"
deconrr = "1.000000"
deconrb = "-0.750000"
deconrry = "0.500000"
deconrgy = "-0.250000"
addnoised = "0.020000"
post_br = "1.010000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/crt/shaders/guest/advanced/lut/trinitron-lut.png"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT1_mipmap = "false"
SamplerLUT2 = "shaders_slang/crt/shaders/guest/advanced/lut/inv-trinitron-lut.png"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT2_mipmap = "false"
SamplerLUT3 = "shaders_slang/crt/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT3_mipmap = "false"
SamplerLUT4 = "shaders_slang/crt/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_wrap_mode = "clamp_to_border"
SamplerLUT4_mipmap = "false"

Edit: here the reshade settings

[CRT-Guest-NTSC.fx]
addnoised=0.020000
bardir=0.000000
barintensity=0.000000
barspeed=50.000000
beam_max=0.700000
beam_min=1.500000
beam_size=0.750000
blm_1=-0.250000
blm_2=1.000000
bloom_dist=0.500000
bmask=0.000000
brightboost1=1.400000
brightboost2=1.100000
bsize=0.000000
b_mask=-0.500000
CCONTR=0.150000
CDETAILS=0.750000
clp=0.000000
CSHARPEN=1.000000
csize=0.000000
cust_artifacting=0.200000
cust_fringing=0.100000
c_shape=0.250000
dctypex=0.500000
dctypey=0.500000
DEBLUR=1.250000
deconbx=-0.750000
deconby=0.000000
decongx=0.000000
decongy=-0.250000
deconrx=1.000000
deconry=0.500000
decons=1.000000
double_slot=2.000000
downsample_levelx=0.000000
downsample_levely=0.000000
edgemask=0.500000
FINE_BLOOM=5.000000
FINE_GAUSS=3.000000
gamma_c=1.000000
gamma_c2=1.025000
gamma_i=2.200000
gamma_o=2.150000
glow=0.030000
gsl=-1.000000
halation=-0.350000
HARNG=0.050000
hiscan=0.000000
HSHARP=1.200000
HSHARPNESS=1.600000
h_mask=0.750000
interm=4.000000
interr=400.000000
intres=0.000000
IOS=0.000000
iscanb=0.200000
iscans=0.250000
lsmooth=0.800000
maskboost=3.000000
maskmid=0.500000
masksize=1.000000
maskstr=1.000000
mask_bloom=-0.400000
mask_drk=0.500000
mask_gamma=2.450000
mask_layout=0.000000
mask_lgt=1.500000
mask_zoom=0.000000
MAXS=0.180000
mclip=0.000000
mcut=1.100000
mshift=1.000000
m_glow=2.000000
m_glow_cutoff=0.120000
m_glow_dist=1.000000
m_glow_high=7.000000
m_glow_low=5.000000
m_glow_mask=0.000000
noiseresd=2.000000
noisetype=0.000000
no_scanlines=0.000000
ntsc_brt=1.000000
ntsc_charp=5.000000
ntsc_charp3=5.000000
ntsc_cscale1=0.950000
ntsc_cscale2=0.950000
ntsc_fields=1.000000
ntsc_gamma=1.000000
ntsc_phase=1.000000
ntsc_rainbow=2.000000
ntsc_ring=1.000000
ntsc_sat=1.000000
ntsc_scale=1.025000
ntsc_shpe=0.500000
ntsc_shrp=-0.500000
ntsc_taps=8.000000
OS=1.000000
overscanx=0.000000
overscany=0.000000
post_br=1.010000
PreprocessorDefinitions=Resolution_X=720,Resolution_Y=480
pr_scan=0.500000
quality=0.000000
rolling_scan=0.000000
sborder=0.750000
scangamma=2.450000
scanline1=5.000000
scanline2=20.000000
scans=2.000000
scan_falloff=0.500000
shadow_msk=7.000000
SIGMA_H=5.000000
SIGMA_HOR=0.800000
SIGMA_V=5.000000
SIGMA_X=0.750000
SIGMA_Y=0.600000
SIZEH=2.000000
SIZEV=2.000000
SIZEX=3.000000
SIZEY=3.000000
slotmask1=0.500000
slotmask2=0.500000
slotms=1.000000
slotwidth=0.000000
smask_mit=0.500000
smoothmask=0.500000
spike=1.000000
S_SHARPH=0.500000
tds=1.000000
vigdef=1.000000
vigstr=0.000000
warpx=0.000000
warpy=0.000000
zoom_mask=0.000000

[CRT-Guest-PreShader.fx]
AS=0.050000
BP=0.000000
contr=0.000000
CP=0.000000
CS=0.000000
LUTBR=1.000000
LUTLOW=5.000000
PB=0.320000
PG=0.320000
PR=0.320000
PreprocessorDefinitions=Resolution_X=720,Resolution_Y=480
pre_bb=1.000000
sat=0.500000
sega_fix=0.000000
TNTC=0.000000
WP=0.000000
wp_saturation=1.000000

well, now it is really closer to https://x.com/CRTpixels/status/1408451743214616587 (aside from my mix of dot mask, slot mask and aperture grille), anyway I may go for these settings for V7 for my presets

3 Likes
