CyberLab Death To Pixels Shader Preset Packs

[Azurfel]

@Cyber

Also, can you add the “CRT Resolution (TVL)”, “Display’s resolution”

Good catch, those numbers are all for 600 TVL at 4K.

@Cyber

"Gamma” and “Saturation”

Those shouldn’t effect this actually, but 2.4 and default.

@Cyber

By chance do you have data for Shadow (Dot) Mask?

I am of the opinion that 4K is insufficient to give a good result for the Shadow Mask setting, so i haven’t measured that. (This is also why there are no Shadow Mask presets in AzMods.)

I also have no interest in the idea of using shadow/dot masks for anything other than PC88/PC98 really, since it’s needed to properly display the dithering on those platforms. Essentially everything else looks nicer with aperture grille or slot in my opinion.

@Cyber

I’m not sure if I asked you this before but what equipment might be good to acquire if I wanted to perform such measurements on my own?

Any of the X-Rite colorimeters with glass filters. Do not get anything with organic filters. The i1Display Pro or i1Display Pro Plus (or one of the OEM equivalents) would be good options.

Calibrite purchased and rebadged them a few years ago. If you want to get one of those, double check that it can still be used with open source software like HCFR first.

@Cyber

the values on RTINGS might measure the actual peak Luminance of an LG WOLED display but when using Sony Megatron Colour Video Monitor or CRT-Guest-Advanced with 100% Mask Strength, the brightness assisting white subpixel isn’t used, thus limiting real-world/actual/effective Peak Luminance on such displays.

This doesn’t seem to have a significant effect on things from what i have seen. The “HDR: Display’s Peak Luminance” seems to primarily impact tone mapping. Setting it to 1000 may even be more correct? I need to experiment more at some point. Ultimately, so long as the peak isn’t set too low, the paper white setting seems to be what matters anyway.

@Cyber

No pressure but don’t be too shy about adding your azurfel mod to the repository including all of these, it’s current and other recommended improvements.

Yeah, i need to get around to that still. I’ve been busy with other things lately. Hopefully soon.

[soqueroeu]

I’m very interested in continuing to use the Megatron shaders. I just wish they were less dark!

[Azurfel]

@soqueroeu

I just wish they were less dark!

Double check that you have HGIG enabled.

Full on black every other frame BFI also, unavoidably, cuts brightness in half. The 800 nit 120hz WOLED panels can reach a bit brighter than the reference CRT brightness of 100 nits with Megatron, but certainly not the 200 nits that would be required for true CRT reference brightness with full BFI. I make this compromise in a blacked out room, but it is a compromise.

It is possible the newest WOLED panels on the LG C5 and so on might have enough brightness to manage it, or at least come close, with a peak 2% of over 1200 nits, but i haven’t had the opportunity to test this, and the necessary paper white might be so close to the ceiling that the “RGB sub-pixels only” problem that @Cyber mentioned might be more of an issue.

The 100 nits CRT reference brightness is also decidedly lower than what is generally considered normal for SDR displays nowadays, so you may find that current panels just don’t have the brightness to get as bright as you would prefer with Megatron.

[Cyber]

Thanks for the responses to my questions.

@Azurfel

Setting it to 1000 may even be more correct?

In my experience with my OLED E6P going over 630 Peak Luminance started causing noticeable clipping and overall harshness. For what it’s worth, that TV got an HDR Real Scene Peak Brightness score of 637 Nits by RTINGS.

This could be due to setting it higher than the display is actually capable of.

[Cyber]

@soqueroeu

I’m very interested in continuing to use the Megatron shaders. I just wish they were less dark!

The solution to this is to manipulate the scanline Dynamics to have less black space between them but of course, this also compromises the overall look and the contrast of the preset.

You can also use higher TVL settings.

Ultimately your display just needs to have the nits to overcome the mask, scanline gaps and BFI.

Alternatively you can use CRT-Guest-Advanced or any other CRT shader in HDR mode and use mitigations to make up for the lack of native display luminance.

The brighter the display, the less reliance on accuracy compromising mitigations.

Guest-Advanced 4k HDR1000 experiments

It’s a mask that I had just happened to have left in by accident when I was transforming Sony Megatron’s 8K Masks to all RGB variants because I preferred the height of the 8K (Slot) Masks over the 4K ones. When using BFI these “noticeable” brightness differences end up equating to significant brightness differences and as subtle as the difference is in my opinion with BFI on vs off at 60Hz on my TV, I find myself not wanting to play without BFI and any gain in brightness equates to a much more…

[Cyber]

@Azurfel

It is possible the newest WOLED panels on the LG C5 and so on might have enough brightness to manage it, or at least come close, with a peak 2% of over 1200 nits, but i haven’t had the opportunity to test this, and the necessary paper white might be so close to the ceiling that the “RGB sub-pixels only” problem that @Cyber mentioned might be more of an issue.

This sound like the kind of stuff @nesguy and I have been discussing over here.

Guest-Advanced 4k HDR1000 experiments

Yes, use Local Dimming. You paid for it, didn’t you? The problem is, you’re using an IPS display which has horrible native black levels and contrast ratio as well as blooming performance so it absolutely has to rely on local dimming to get anywhere near decent contrast or black levels, however local dimming algorithms vary considerably so there’s the potential to introduce a different set of artifacts due to that. So there are times when my TCL QM8751G gently reminds me that’s it’s only a mini…

The G5 might need a Subpixel swap on the CRT shader side because it’s RGBW instead of RWBG.

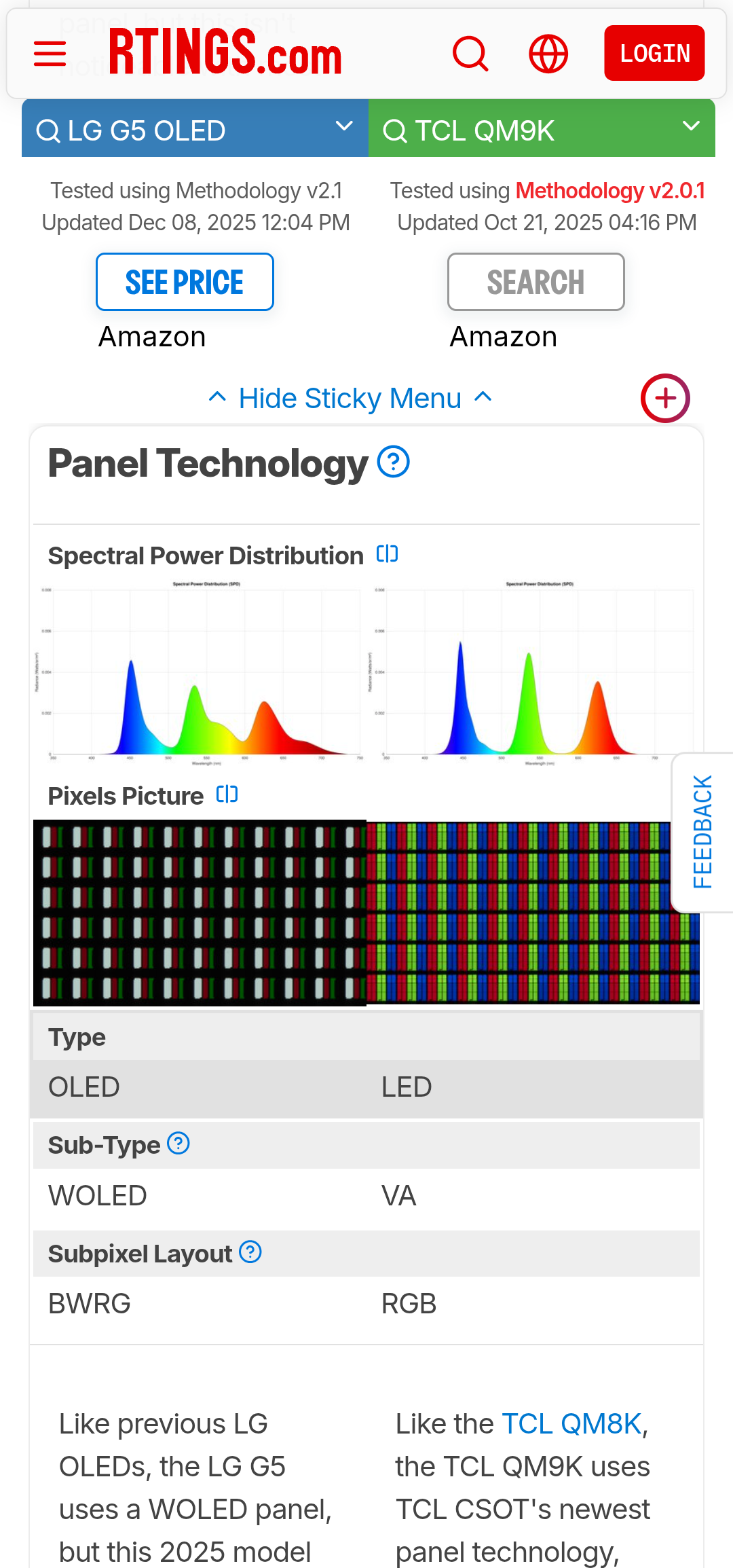

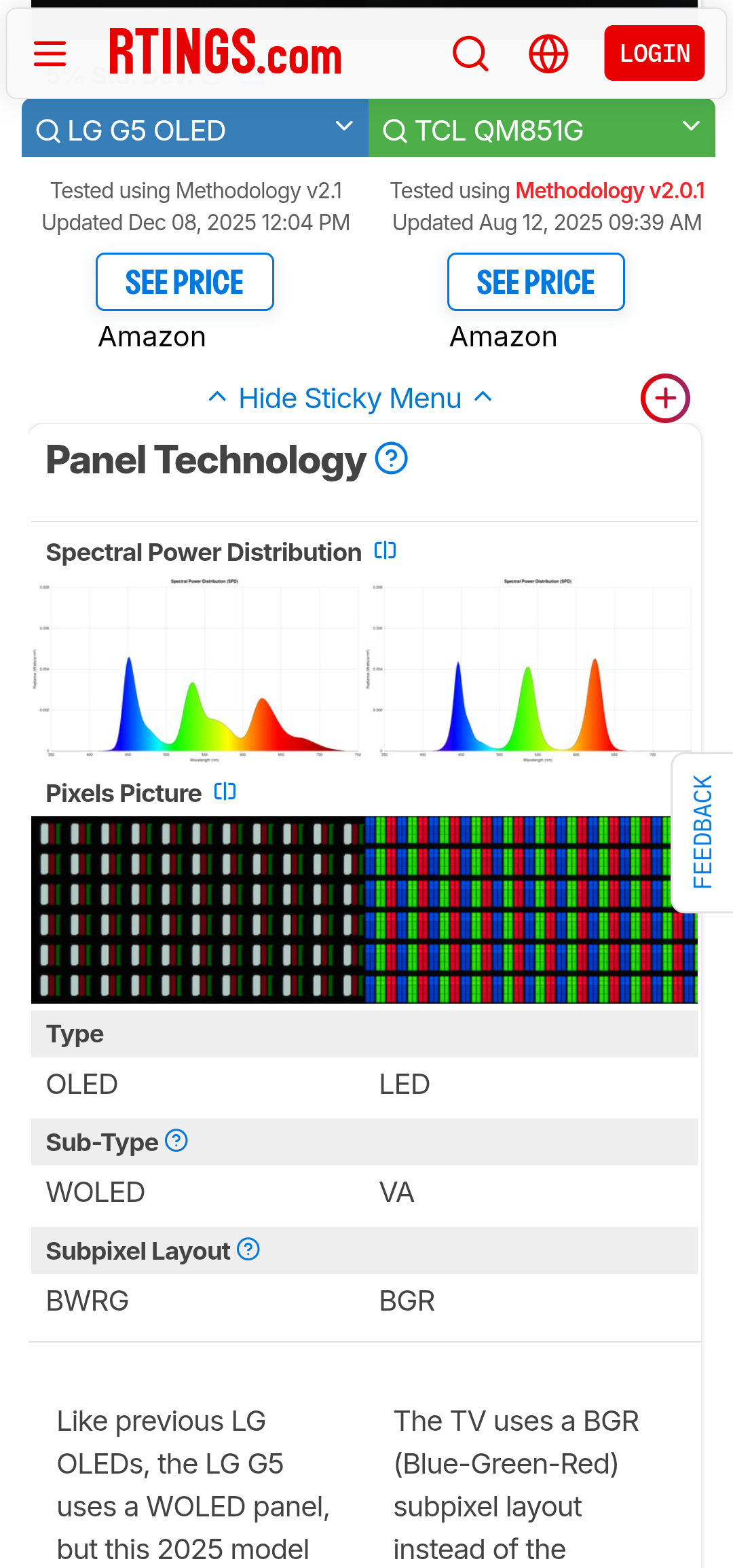

OLED subpixels. How do they work?

I don’t have answers to your questions, I just wanted to point out that, as far as I know, this is the third subpixel layout from LG. The RWBG layout they’ve been using in their TV panels. (And some older monitor panels?) The RGWB layout in some of the new monitor panels. Now this BWRG layout in the G5 panel. They are supposedly working on RGB (no white) layout panels for future monitors (source here, all the way at the bottom). Is this summary missing anything?

I’m hoping to see a tandem² OLED panel with MLA.

Or a tandem³ True RGB with MLA and no white subpixel!

In the meantime, we have some miniLED TVs that can put even the G5 to shame in the areas of CRT emulation where OLED doesn’t do as well in.

Of course on the flip side OLED still shines in the areas that miniLED doesn’t do as well in.

Guest-Advanced 4k HDR1000 experiments

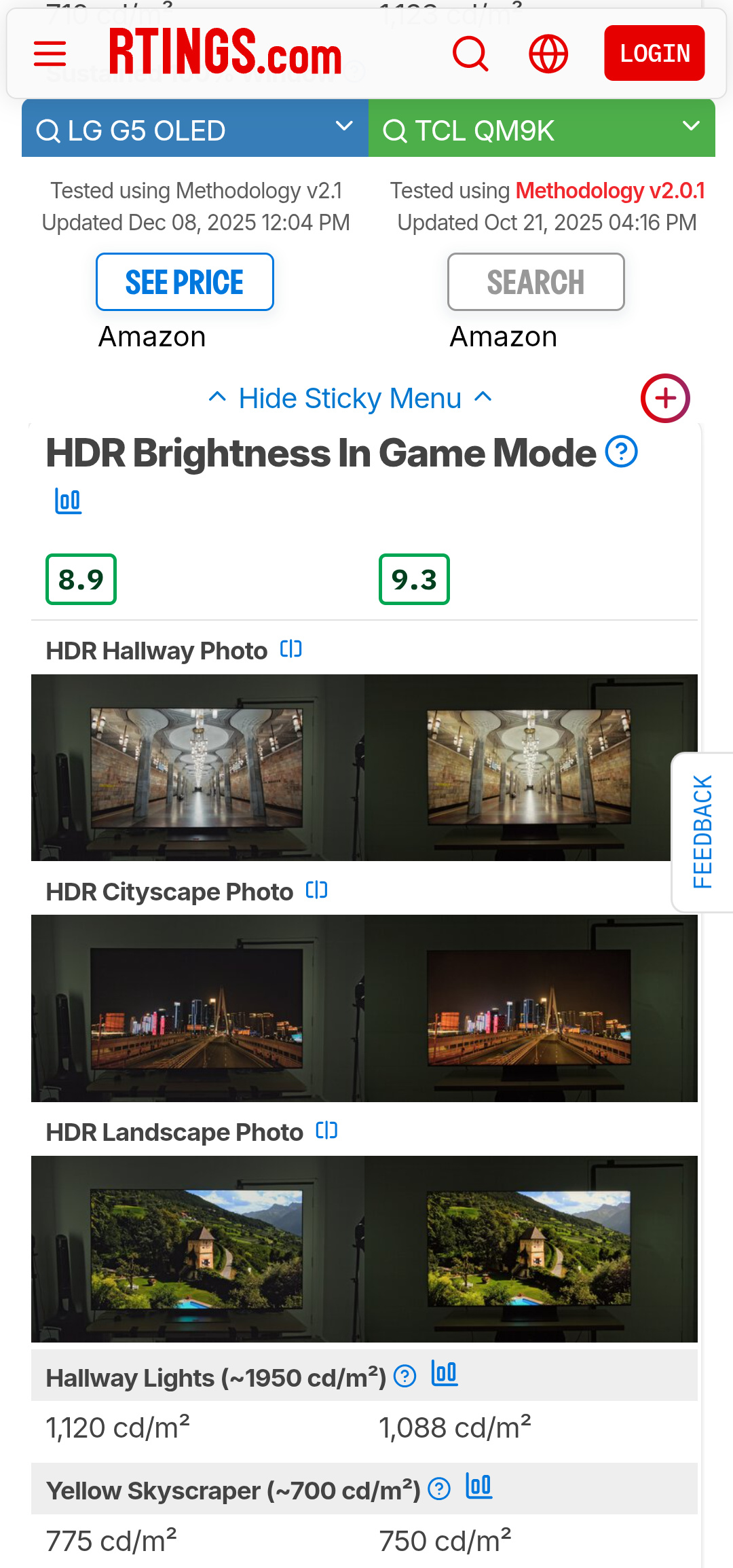

This TV can do that: 953 cd/m² This one’s right behind it: 768 cd/m² This is the one I have: 542 cd/m² Now it’s a large screen so I sometimes prefer a smaller, denser and brighter image using smaller Integer Scale Sizes, for example 8x or 6x. At 50% Window Size Sustained Brightness: 860 cd/m². The QM8K can do Sustained 50% Window 982 cd/m². The QM9K can do Sustained 50% Window 1,293 cd/m². While the QM851G can do Sustained 50% Window 1,792 cd/m² ! Remember these TV’s are huge c…

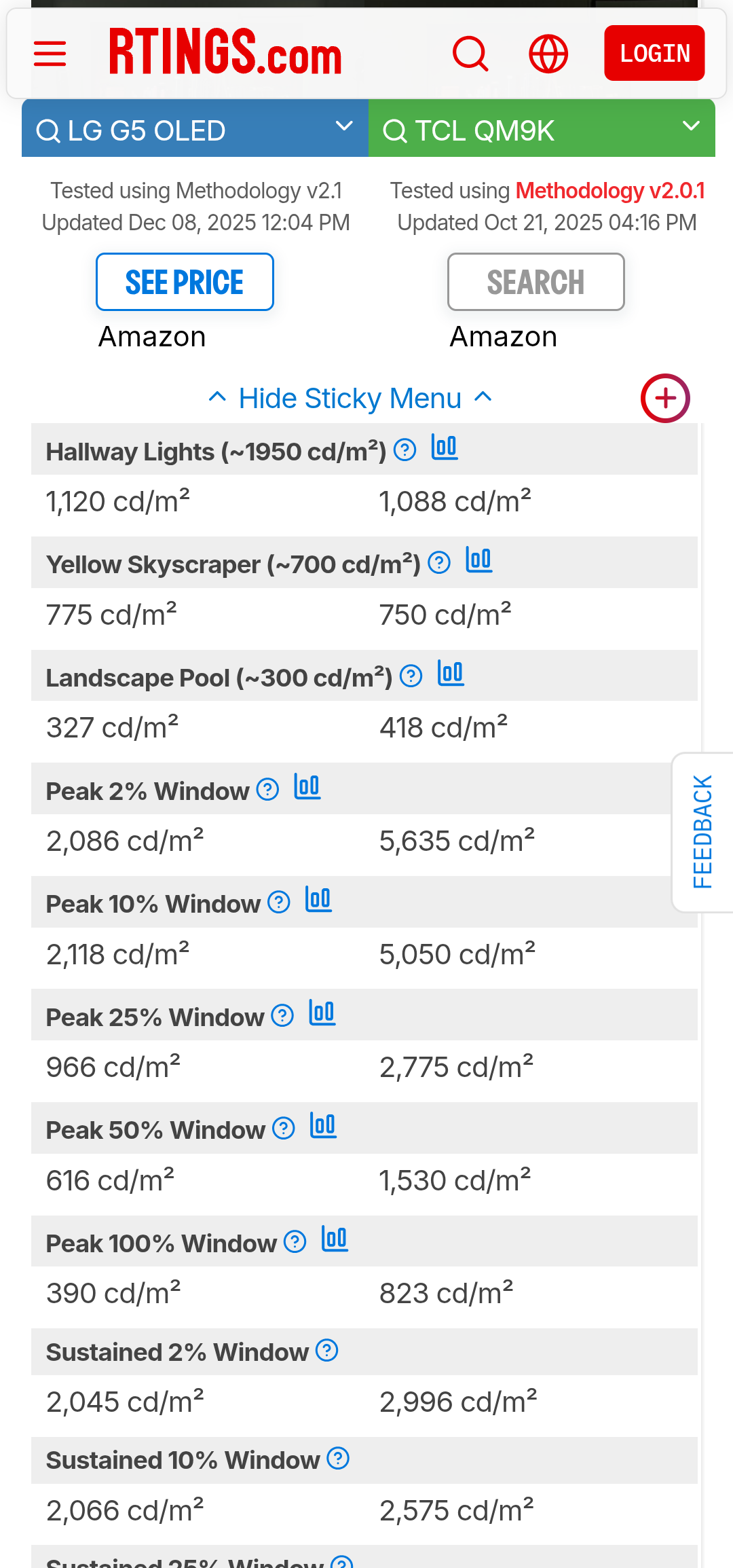

LG G5 OLED vs TCL QM9K: Which TV Is Better?

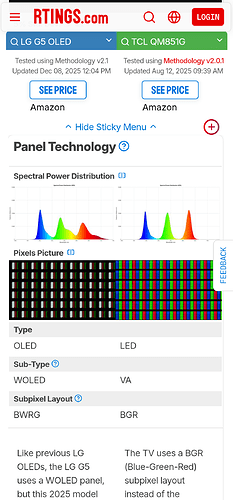

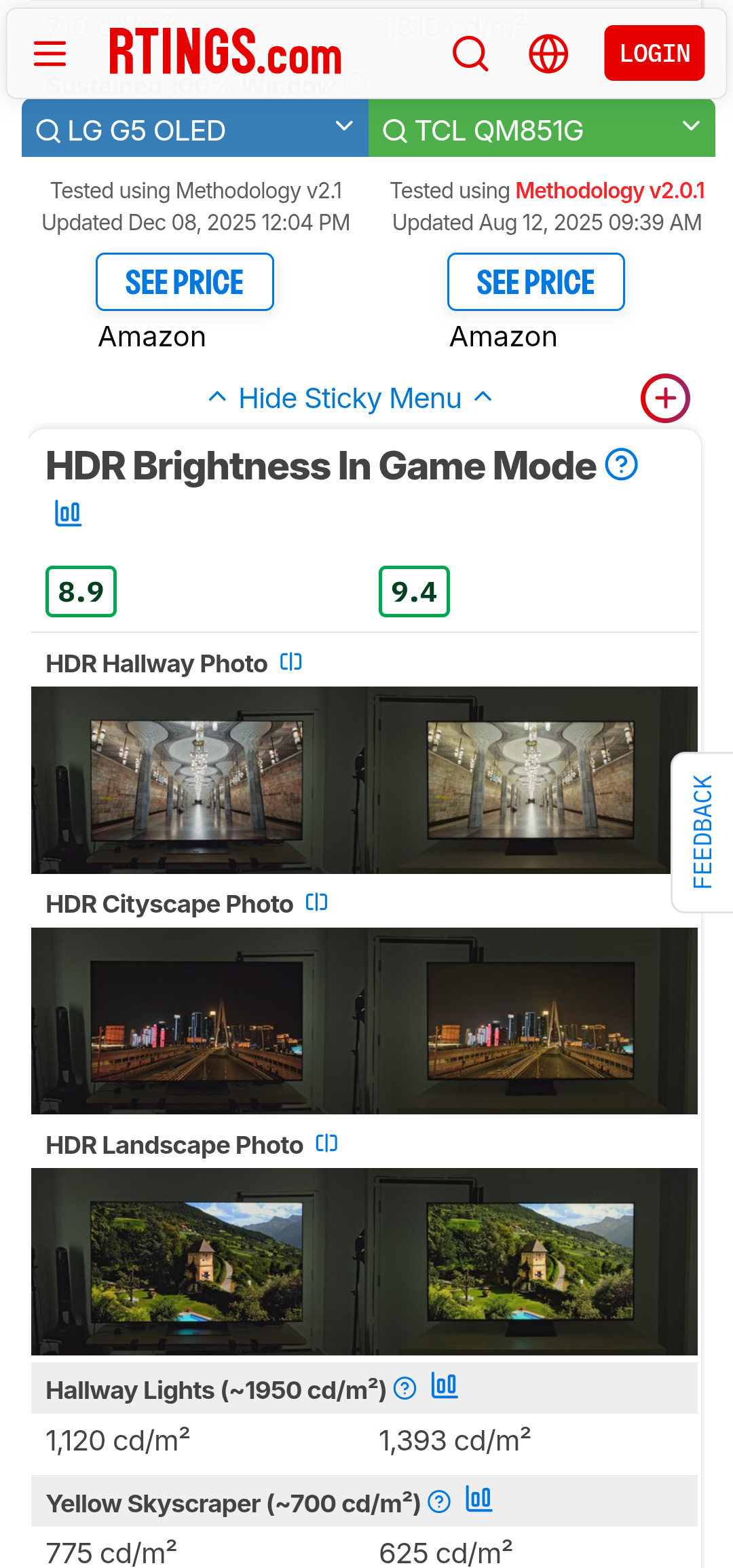

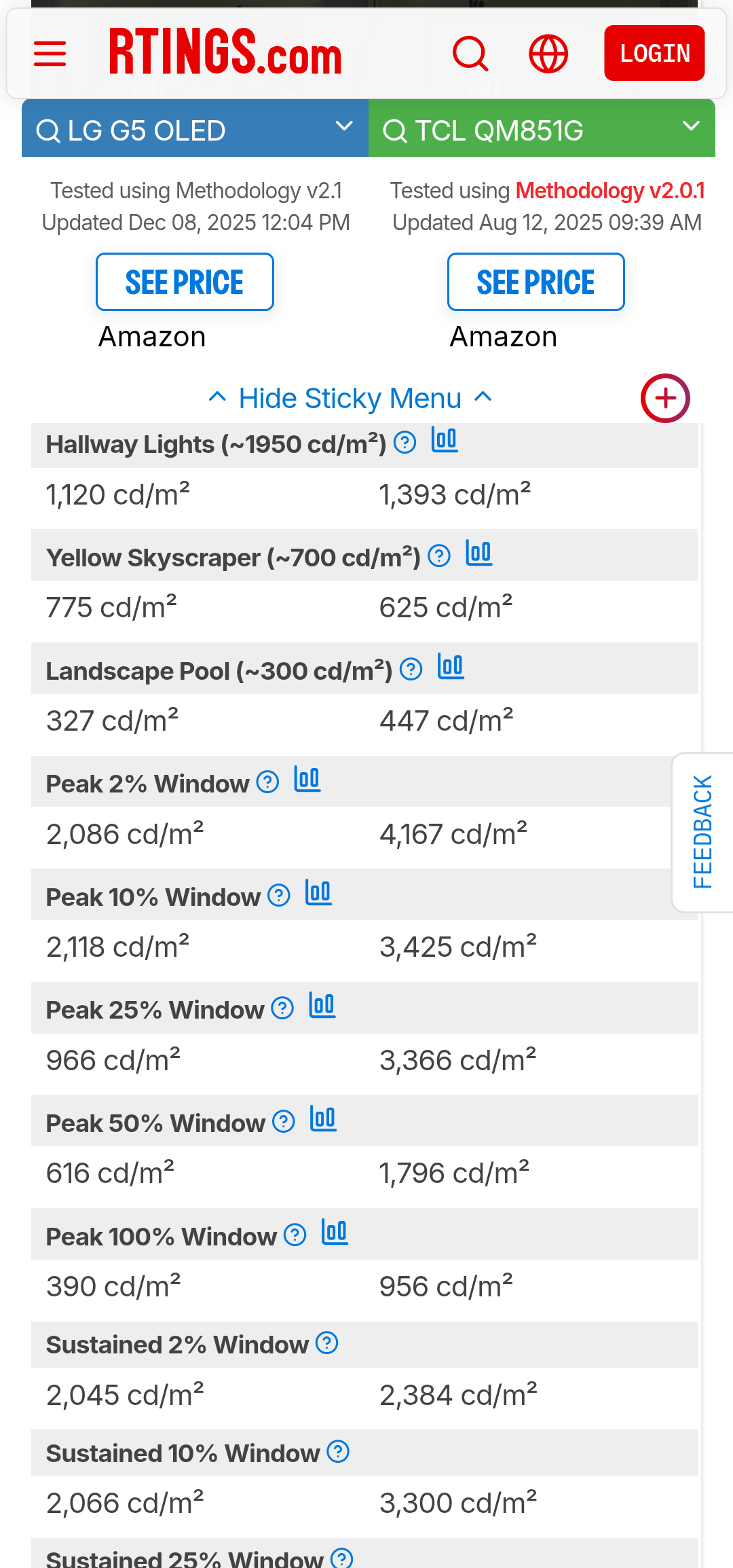

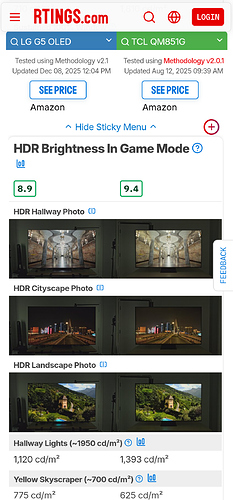

LG G5 OLED vs TCL QM851G: Which TV Is Better?

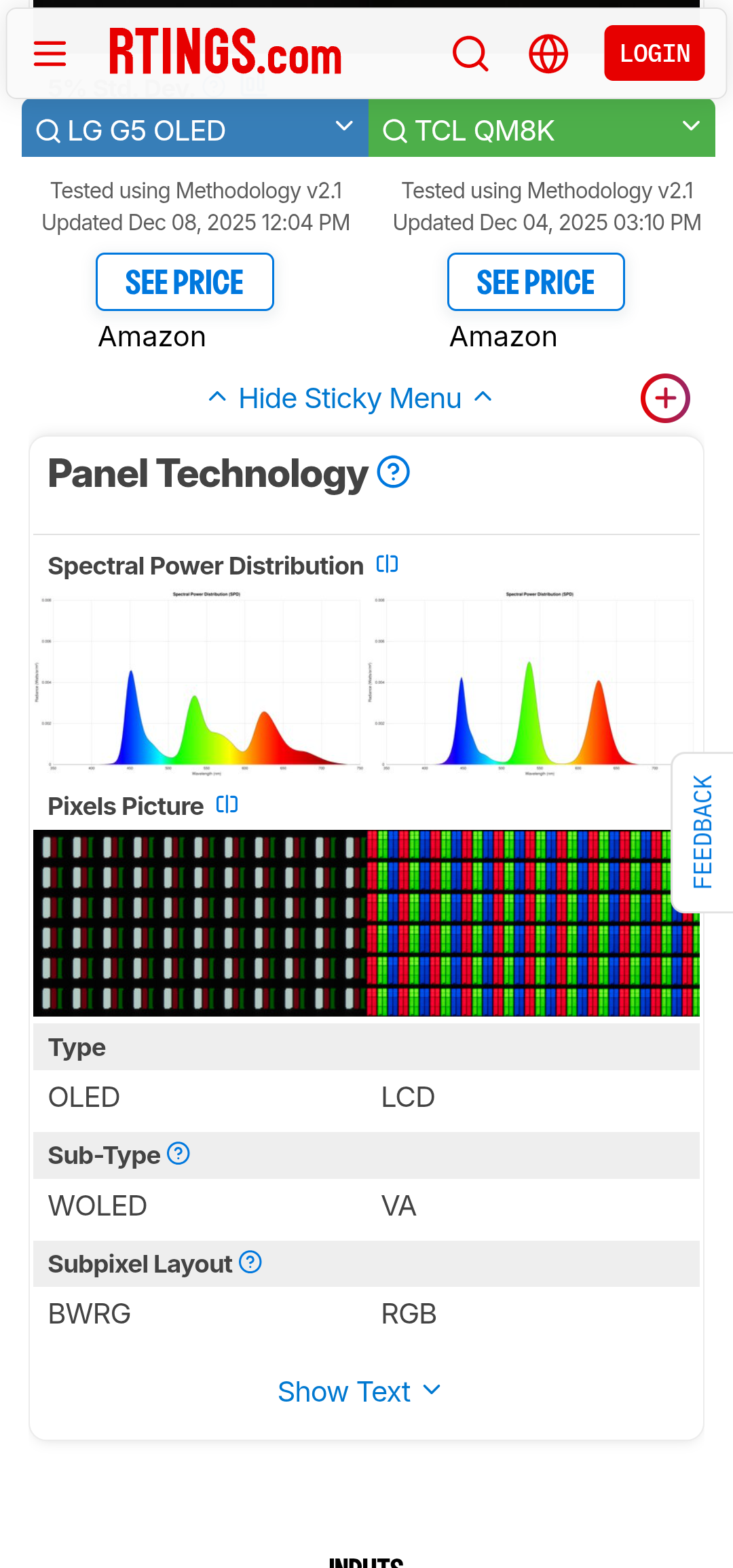

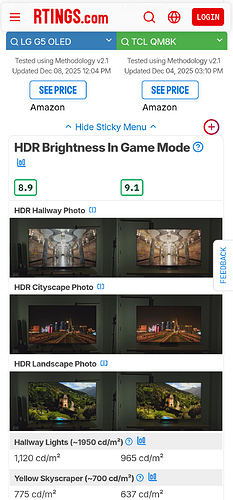

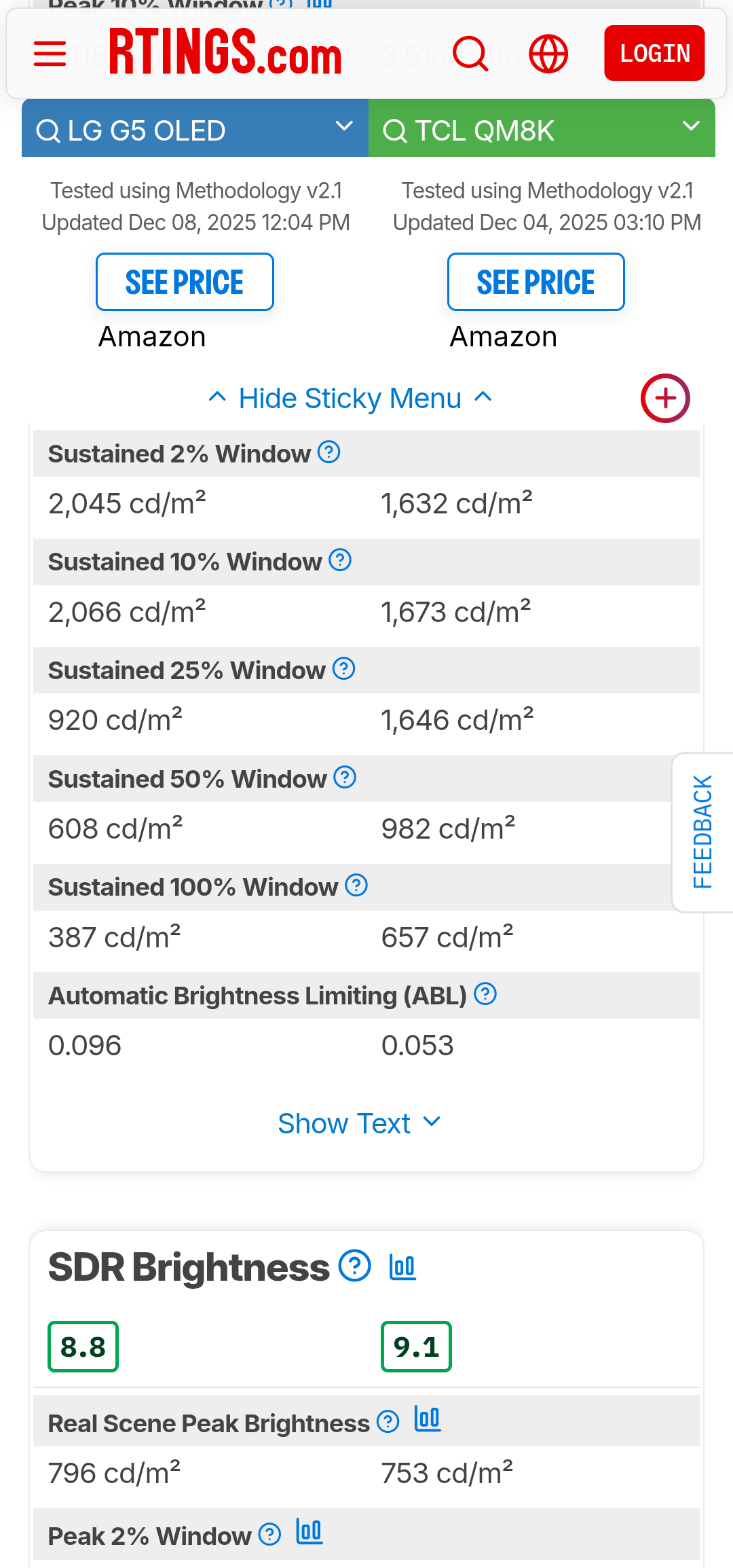

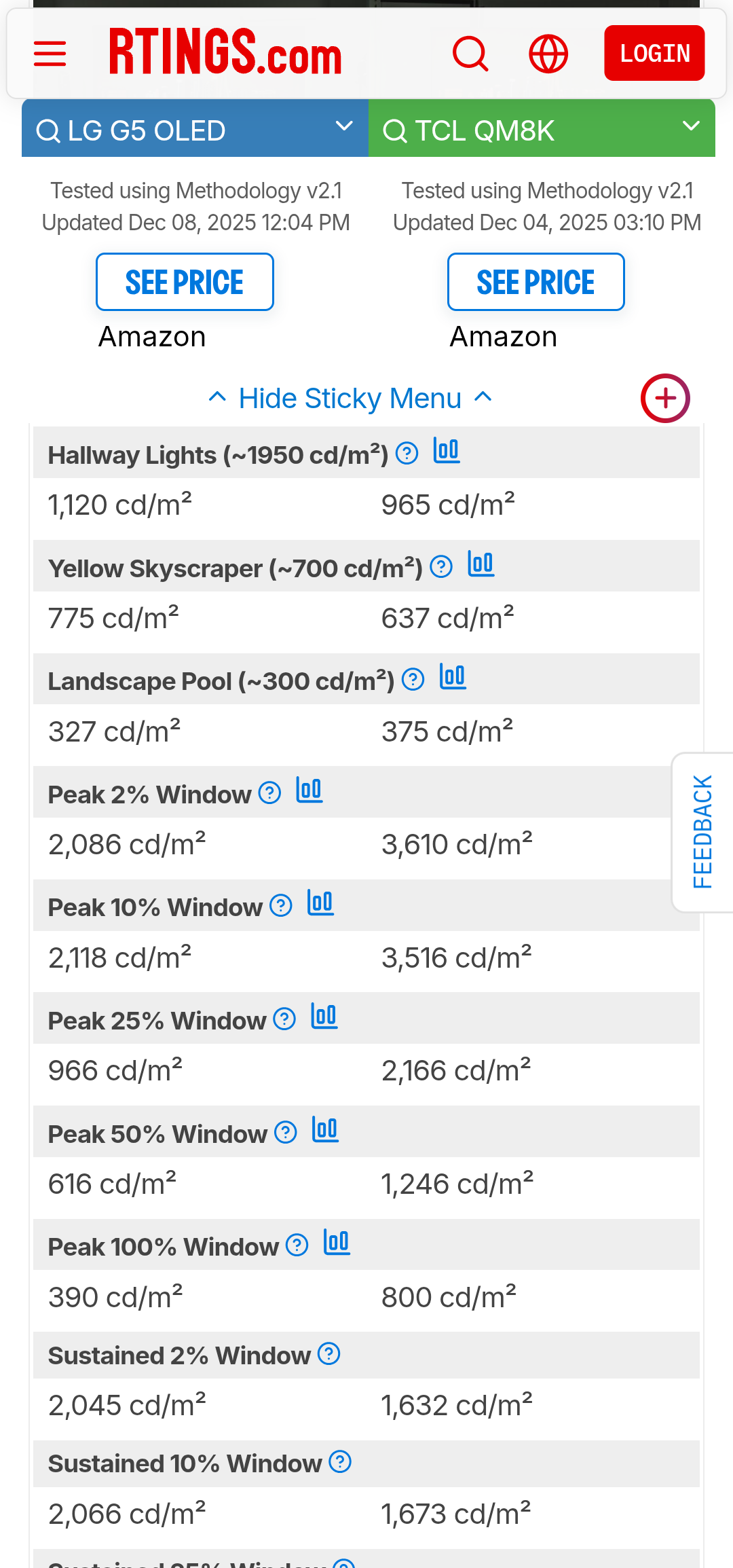

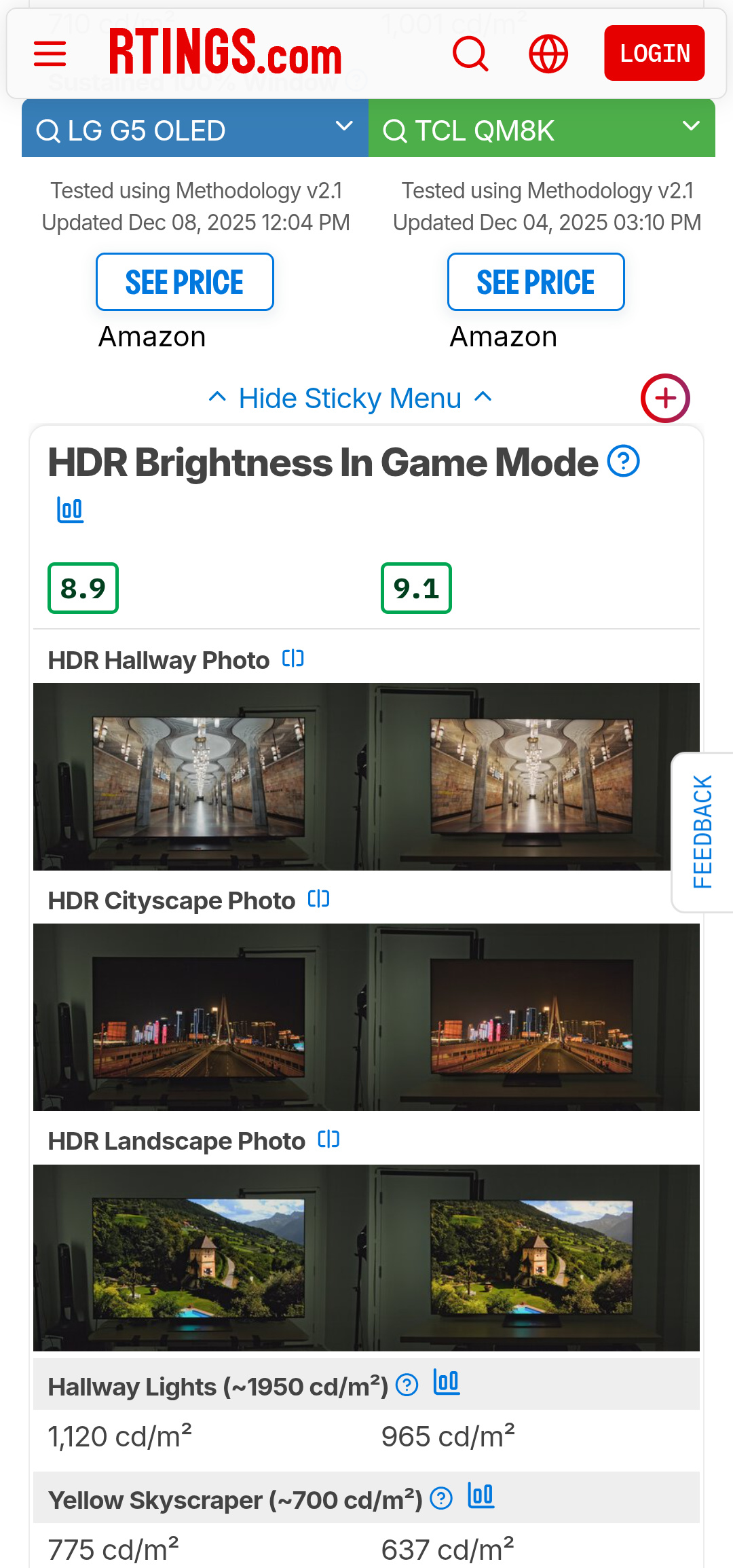

LG G5 OLED vs TCL QM8K: Which TV Is Better?

[Nesguy]

@Azurfel

The 100 nits CRT reference brightness is also decidedly lower than what is generally considered normal for SDR displays nowadays, so you may find that current panels just don’t have the brightness to get as bright as you would prefer with Megatron.

In my experiments, about 250 nits is the sweet spot before things start to look worse, and this doesn’t cause noticeable eye strain in any viewing environment. It’s really hard to go back to 100 nits after becoming accustomed to a brighter image. I always target 200-250 nits, now.

[Azurfel]

@Nesguy

It’s really hard to go back to 100 nits after becoming accustomed to a brighter image. I always target 200-250 nits, now.

203 nits is the baseline HDR reference white in ST.2084 and BT.2100. Might as well aim for that since that is in your range.

But personally, i still think SDR material usually looks best at 100 nits.

[Cyber]

@soqueroeu

I just wish they were less dark!

Try this one with appropriate Peak and Paper White Luminance and Display’s Subpixel Layout Parameter settings for your display. It should be relatively brighter than many if not most of my other Sony Megatron Colour Video Monitor Presets.

CyberLab Megatron miniLED 4K HDR Game BFI Turbo Duo_DC Composite Sharp PVM Edition Epic CAR9x7x or CAR7x6x W4.slangp

shaders = "18"
feedback_pass = "0"
shader0 = "shaders_slang/misc/shaders/img_mod_CyberLab-No_Grain.slang"
alias0 = ""
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
float_framebuffer0 = "true"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/edge-smoothing/xbr/shaders/support/linearize.slang"
alias1 = "XbrSource"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
filter_linear1 = "false"
float_framebuffer1 = "true"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/edge-smoothing/xbr/shaders/xbr-lv2-multipass/xbr-lv2-pass0.slang"
alias2 = ""
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
filter_linear2 = "false"
float_framebuffer2 = "true"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/edge-smoothing/xbr/shaders/xbr-lv2-multipass/xbr-lv2-pass1.slang"
alias3 = ""
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
filter_linear3 = "false"
float_framebuffer3 = "true"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "2.000000"
scale_type_y3 = "source"
scale_y3 = "2.000000"
shader4 = "shaders_slang/edge-smoothing/xbr/shaders/support/b-spline-x.slang"
alias4 = ""
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
filter_linear4 = "false"
float_framebuffer4 = "true"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "0.500000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/edge-smoothing/xbr/shaders/support/b-spline-y.slang"
alias5 = ""
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
filter_linear5 = "false"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "0.500000"
shader6 = "shaders_slang/edge-smoothing/xbr/shaders/support/delinearize.slang"
alias6 = ""
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
filter_linear6 = "false"
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "1.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/stock.slang"
alias7 = "StockPass"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
filter_linear7 = "false"
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "1.000000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/afterglow0.slang"
alias8 = "AfterglowPass"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
filter_linear8 = "true"
float_framebuffer8 = "true"
srgb_framebuffer8 = "false"
scale_type_x8 = "source"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/grade/pre-shaders-afterglow-grade.slang"
alias9 = "PrePass0"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
filter_linear9 = "true"
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
alias10 = "NPass1"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
filter_linear10 = "false"
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "4.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
alias11 = ""
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
filter_linear11 = "true"
float_framebuffer11 = "true"
srgb_framebuffer11 = "false"
scale_type_x11 = "source"
scale_x11 = "0.500000"
scale_type_y11 = "source"
scale_y11 = "1.000000"
shader12 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
alias12 = ""
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
filter_linear12 = "true"
float_framebuffer12 = "true"
srgb_framebuffer12 = "false"
scale_type_x12 = "source"
scale_x12 = "1.000000"
scale_type_y12 = "source"
scale_y12 = "1.000000"
shader13 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/custom-fast-sharpen.slang"
alias13 = "LinearizePass"
wrap_mode13 = "clamp_to_border"
mipmap_input13 = "false"
filter_linear13 = "true"
float_framebuffer13 = "true"
srgb_framebuffer13 = "false"
scale_type_x13 = "source"
scale_x13 = "1.000000"
scale_type_y13 = "source"
scale_y13 = "1.000000"
shader14 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
alias14 = "Pass1"
wrap_mode14 = "clamp_to_border"
mipmap_input14 = "false"
filter_linear14 = "true"
float_framebuffer14 = "true"
srgb_framebuffer14 = "false"
scale_type_x14 = "viewport"
scale_x14 = "1.000000"
scale_type_y14 = "source"
scale_y14 = "1.000000"
shader15 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron-source-pass.slang"
alias15 = "SourceSDR"
wrap_mode15 = "clamp_to_border"
mipmap_input15 = "false"
filter_linear15 = "false"
float_framebuffer15 = "true"
srgb_framebuffer15 = "false"
scale_type_x15 = "source"
scale_x15 = "1.000000"
scale_type_y15 = "source"
scale_y15 = "1.000000"
shader16 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron-hdr-pass.slang"
alias16 = "SourceHDR"
wrap_mode16 = "clamp_to_border"
mipmap_input16 = "false"
filter_linear16 = "false"
float_framebuffer16 = "true"
srgb_framebuffer16 = "false"
scale_type_x16 = "source"
scale_x16 = "1.000000"
scale_type_y16 = "source"
scale_y16 = "1.000000"
shader17 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron.slang"
alias17 = ""
wrap_mode17 = "clamp_to_border"
mipmap_input17 = "false"
filter_linear17 = "false"
float_framebuffer17 = "true"
srgb_framebuffer17 = "false"
ia_TOPMASK = "0.022500"
ia_BOTMASK = "0.032500"
cornersize = "0.001000"
SMALL_DETAILS = "1.000000"
WP4 = "0.800000"
KA = "0.350000"
FD = "1.000000"
AS = "0.040000"
g_crtgamut = "-1.000000"
wp_temperature = "7104.000000"
g_CRT_sl = "0.000000"
g_vstr = "5.000000"
g_vpower = "0.050000"
cust_fringing = "0.000000"
ntsc_phase = "5.000000"
ntsc_scale = "1.125000"
ntsc_charp = "10.000000"
ntsc_charp3 = "10.000000"
ntsc_cscale = "3.300001"
ntsc_cscale1 = "1.700001"
ntsc_sharp = "10.000000"
ntsc_fonts = "1.000000"
RFNOISE = "1.000000"
RFNOISE1 = "0.030000"
NDEBLUR = "2.500000"
DSMART = "1.000000"
HSHARPNESS = "1.580000"
hcrt_max_nits = "630.000000"
hcrt_paper_white_nits = "330.000000"
hcrt_expand_gamut = "1.000000"
hcrt_lcd_resolution = "0.000000"
hcrt_lcd_subpixel = "2.000000"
hcrt_crt_resolution = "2.000000"
hcrt_white_temperature_D65 = "5504.000000"
hcrt_saturation = "0.210000"
hcrt_gamma_in = "1.580001"
hcrt_v_cent = "-1.000000"
hcrt_red_vertical_convergence = "0.020000"
hcrt_green_vertical_convergence = "-0.020000"
hcrt_blue_vertical_convergence = "0.020000"
hcrt_red_scanline_min = "0.300000"
hcrt_red_scanline_max = "0.720000"
hcrt_green_scanline_min = "0.300000"
hcrt_green_scanline_max = "0.720000"
hcrt_blue_scanline_min = "0.300000"
hcrt_blue_scanline_max = "0.720000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT1_mipmap = "false"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT2 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT2_mipmap = "false"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT3 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_mipmap = "false"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT4 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_mipmap = "false"
SamplerLUT4_wrap_mode = "clamp_to_border"

CyberLab Megatron miniLED 4K HDR Game BFI Genesis Composite Sharp PVM Edition Epic CAR9x9x W4.slangp

shaders = "18"
feedback_pass = "0"
shader0 = "shaders_slang/misc/shaders/img_mod_CyberLab-No_Grain.slang"
alias0 = ""
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
float_framebuffer0 = "true"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/edge-smoothing/xbr/shaders/support/linearize.slang"
alias1 = "XbrSource"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
filter_linear1 = "false"
float_framebuffer1 = "true"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/edge-smoothing/xbr/shaders/xbr-lv2-multipass/xbr-lv2-pass0.slang"
alias2 = ""
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
filter_linear2 = "false"
float_framebuffer2 = "true"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/edge-smoothing/xbr/shaders/xbr-lv2-multipass/xbr-lv2-pass1.slang"
alias3 = ""
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
filter_linear3 = "false"
float_framebuffer3 = "true"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "2.000000"
scale_type_y3 = "source"
scale_y3 = "2.000000"
shader4 = "shaders_slang/edge-smoothing/xbr/shaders/support/b-spline-x.slang"
alias4 = ""
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
filter_linear4 = "false"
float_framebuffer4 = "true"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "0.500000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/edge-smoothing/xbr/shaders/support/b-spline-y.slang"
alias5 = ""
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
filter_linear5 = "false"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "0.500000"
shader6 = "shaders_slang/edge-smoothing/xbr/shaders/support/delinearize.slang"
alias6 = ""
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
filter_linear6 = "false"
float_framebuffer6 = "true"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "1.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/stock.slang"
alias7 = "StockPass"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
filter_linear7 = "false"
float_framebuffer7 = "true"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "1.000000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/afterglow0.slang"
alias8 = "AfterglowPass"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
filter_linear8 = "true"
float_framebuffer8 = "true"
srgb_framebuffer8 = "false"
scale_type_x8 = "source"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/grade/pre-shaders-afterglow-grade.slang"
alias9 = "PrePass0"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
filter_linear9 = "true"
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
alias10 = "NPass1"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
filter_linear10 = "false"
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "4.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
alias11 = ""
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
filter_linear11 = "true"
float_framebuffer11 = "true"
srgb_framebuffer11 = "false"
scale_type_x11 = "source"
scale_x11 = "0.500000"
scale_type_y11 = "source"
scale_y11 = "1.000000"
shader12 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
alias12 = ""
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
filter_linear12 = "true"
float_framebuffer12 = "true"
srgb_framebuffer12 = "false"
scale_type_x12 = "source"
scale_x12 = "1.000000"
scale_type_y12 = "source"
scale_y12 = "1.000000"
shader13 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/custom-fast-sharpen.slang"
alias13 = "LinearizePass"
wrap_mode13 = "clamp_to_border"
mipmap_input13 = "false"
filter_linear13 = "true"
float_framebuffer13 = "true"
srgb_framebuffer13 = "false"
scale_type_x13 = "source"
scale_x13 = "1.000000"
scale_type_y13 = "source"
scale_y13 = "1.000000"
shader14 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
alias14 = "Pass1"
wrap_mode14 = "clamp_to_border"
mipmap_input14 = "false"
filter_linear14 = "true"
float_framebuffer14 = "true"
srgb_framebuffer14 = "false"
scale_type_x14 = "viewport"
scale_x14 = "1.000000"
scale_type_y14 = "source"
scale_y14 = "1.000000"
shader15 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron-source-pass.slang"
alias15 = "SourceSDR"
wrap_mode15 = "clamp_to_border"
mipmap_input15 = "false"
filter_linear15 = "false"
float_framebuffer15 = "true"
srgb_framebuffer15 = "false"
scale_type_x15 = "source"
scale_x15 = "1.000000"
scale_type_y15 = "source"
scale_y15 = "1.000000"
shader16 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron-hdr-pass.slang"
alias16 = "SourceHDR"
wrap_mode16 = "clamp_to_border"
mipmap_input16 = "false"
filter_linear16 = "false"
float_framebuffer16 = "true"
srgb_framebuffer16 = "false"
scale_type_x16 = "source"
scale_x16 = "1.000000"
scale_type_y16 = "source"
scale_y16 = "1.000000"
shader17 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron.slang"
alias17 = ""
wrap_mode17 = "clamp_to_border"
mipmap_input17 = "false"
filter_linear17 = "false"
float_framebuffer17 = "true"
srgb_framebuffer17 = "false"
cornersize = "0.001000"
SMALL_DETAILS = "1.000000"
WP4 = "0.800000"
KA = "0.350000"
FD = "1.000000"
AS = "0.040000"
g_crtgamut = "-1.000000"
wp_temperature = "7104.000000"
g_CRT_sl = "0.000000"
g_vstr = "5.000000"
g_vpower = "0.050000"
g_lum_fix = "1.000000"
g_MD_Pal = "1.000000"
cust_fringing = "0.000000"
ntsc_charp = "10.000000"
ntsc_charp3 = "10.000000"
ntsc_cscale = "3.300001"
ntsc_cscale1 = "1.700001"
ntsc_sharp = "10.000000"
ntsc_fonts = "1.000000"
RFNOISE = "1.000000"
RFNOISE1 = "0.030000"
NDEBLUR = "2.500000"
DSMART = "1.000000"
HSHARPNESS = "1.580000"
hcrt_max_nits = "630.000000"
hcrt_paper_white_nits = "330.000000"
hcrt_expand_gamut = "1.000000"
hcrt_lcd_resolution = "0.000000"
hcrt_lcd_subpixel = "2.000000"
hcrt_crt_resolution = "2.000000"
hcrt_white_temperature_D65 = "5504.000000"
hcrt_saturation = "0.210000"
hcrt_gamma_in = "1.580001"
hcrt_v_cent = "-1.000000"
hcrt_red_vertical_convergence = "0.020000"
hcrt_green_vertical_convergence = "-0.020000"
hcrt_blue_vertical_convergence = "0.020000"
hcrt_red_scanline_min = "0.300000"
hcrt_red_scanline_max = "0.720000"
hcrt_green_scanline_min = "0.300000"
hcrt_green_scanline_max = "0.720000"
hcrt_blue_scanline_min = "0.300000"
hcrt_blue_scanline_max = "0.720000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT1_mipmap = "false"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT2 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT2_mipmap = "false"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT3 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_mipmap = "false"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT4 = "shaders_slang/crt-guest-advanced-2025-11-11-release1/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_mipmap = "false"
SamplerLUT4_wrap_mode = "clamp_to_border"

CyberLab Megatron miniLED 4K HDR Game BFI NES S-Video PVM Edition Epic CAR9x8x W4.slangp

shaders = "12"
feedback_pass = "0"
shader0 = "shaders_slang/misc/shaders/img_mod_CyberLab.slang"
alias0 = ""
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/stock.slang"
alias1 = "StockPass"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
filter_linear1 = "false"
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/afterglow0.slang"
alias2 = "AfterglowPass"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
filter_linear2 = "true"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/grade/pre-shaders-afterglow-grade.slang"
alias3 = "PrePass0"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
filter_linear3 = "true"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
alias4 = "NPass1"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
filter_linear4 = "false"
float_framebuffer4 = "true"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "4.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
alias5 = ""
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
filter_linear5 = "true"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "0.500000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
alias6 = ""
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
filter_linear6 = "true"
float_framebuffer6 = "false"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "1.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/custom-fast-sharpen.slang"
alias7 = "LinearizePass"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
filter_linear7 = "true"
float_framebuffer7 = "false"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "1.000000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
alias8 = "Pass1"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
filter_linear8 = "true"
float_framebuffer8 = "false"
srgb_framebuffer8 = "false"
scale_type_x8 = "viewport"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/hdr/shaders/crt-sony-megatron-source-pass.slang"
alias9 = "SourceSDR"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
filter_linear9 = "false"
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/hdr/shaders/crt-sony-megatron-hdr-pass.slang"
alias10 = "SourceHDR"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
filter_linear10 = "false"
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "1.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/hdr/shaders/crt-sony-megatron.slang"
alias11 = ""
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
filter_linear11 = "false"
float_framebuffer11 = "false"
srgb_framebuffer11 = "false"
ia_GRAIN_STR = "1.000000"
ia_TOPMASK = "0.035000"
ia_BOTMASK = "0.032500"
ia_LMASK = "0.030000"
ia_RMASK = "0.015000"
cornersize = "0.001000"
PR = "0.000000"
PG = "0.000000"
PB = "0.000000"
AS = "0.000000"
g_crtgamut = "1.000000"
wp_temperature = "6504.000000"
g_CRT_sl = "0.000000"
g_vstr = "5.000000"
g_vpower = "0.050000"
cust_artifacting = "0.300000"
cust_fringing = "0.200000"
ntsc_scale = "1.225000"
ntsc_gamma = "0.975000"
ntsc_cscale = "1.450002"
ntsc_cscale1 = "1.450001"
ntsc_sharp = "-10.000000"
HSHARPNESS = "1.550000"
S_SHARP = "1.250000"
hcrt_max_nits = "630.000000"
hcrt_paper_white_nits = "630.000000"
hcrt_lcd_resolution = "0.000000"
hcrt_lcd_subpixel = "2.000000"
hcrt_crt_resolution = "2.000000"
hcrt_white_temperature_D65 = "5504.000000"
hcrt_saturation = "0.060000"
hcrt_gamma_in = "1.400001"
hcrt_v_cent = "-1.000000"
hcrt_red_scanline_min = "0.300000"
hcrt_red_scanline_max = "0.720000"
hcrt_green_scanline_min = "0.300000"
hcrt_green_scanline_max = "0.720000"
hcrt_blue_scanline_min = "0.300000"
hcrt_blue_scanline_max = "0.720000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT1_mipmap = "false"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT2 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT2_mipmap = "false"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT3 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_mipmap = "false"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT4 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_mipmap = "false"
SamplerLUT4_wrap_mode = "clamp_to_border"

[soqueroeu]

@Cyber

CyberLab Megatron miniLED 4K HDR Game BFI Turbo Duo_DC Composite Sharp PVM Edition Epic CAR9x7x or CAR7x6x W4.slangp

This really made me happy.

It’s much brighter than before. Thank you for posting the preset, I really wasn’t sure how to adjust the parameters. Thank you so much, @Cyber !!

I just need help fixing this cut-off at the bottom edge. This only happens with the shader active.

[Cyber]

@soqueroeu

I just need help fixing this cut-off at the bottom edge. This only happens with the shader active.

That’s because it’s a preset meant for Turbo-Duo/PC-Engine games. It has built-in crop settings for that console. I don’t mind continuing this line of presets to cover other consoles.

So you can look out for Sega Genesis, NES, SNES, PSX and arcade presets in the near future. I’ll just evolve them from my current best or latest efforts which I tend to use for each console.

In the meantime, if you want to use that preset for Genesis/Megadrive, you’d probably want to set the NTSC Phase Mode to Auto, NTSC Resolution Scale to 1.0 and enable Genesis/Megadrive Luma/Brightness Fixes and the Megadrive Palette in addition to resetting any crop settings to defaults.

Update 19-12-2025:

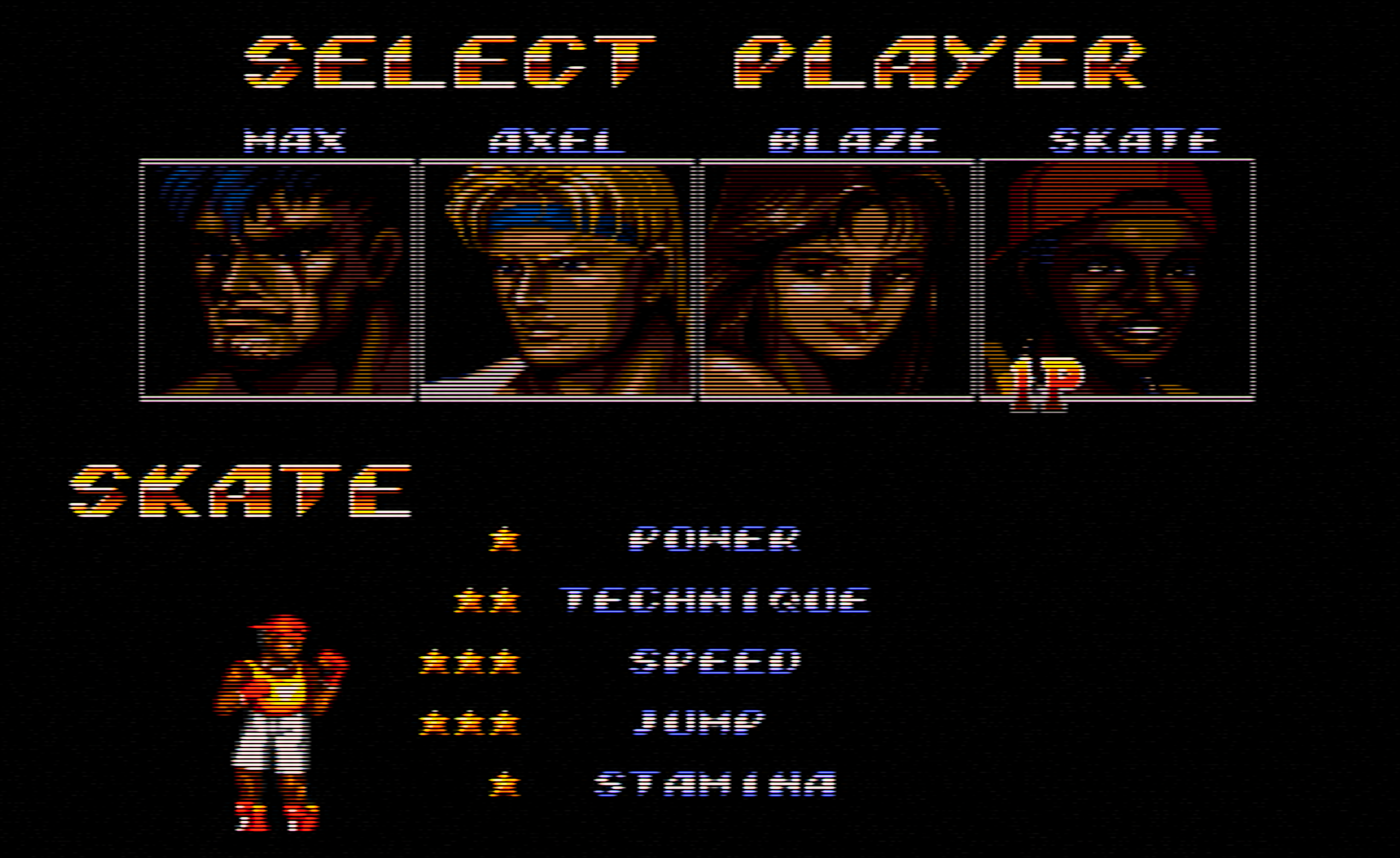

CyberLab Megatron miniLED 4K HDR Game BFI Genesis Composite Sharp PVM Edition Epic CAR9x9x W4.slangp and CyberLab Megatron miniLED 4K HDR Game BFI NES S-Video PVM Edition Epic CAR9x8x W4.slangp added.

CyberLab Death To Pixels Shader Preset Packs

Try this one with appropriate Peak and Paper White Luminance and Display’s Subpixel Layout Parameter settings for your display. It should be relatively brighter than many if not most of my other Sony Megatron Colour Video Monitor Presets. CyberLab Megatron miniLED 4K HDR Game BFI Turbo Duo_DC Composite Sharp PVM Edition Epic CAR9x7x or CAR7x6x W4.slangp shaders = "18" feedback_pass = "0" shader0 = "shaders_slang/misc/shaders/img_mod_CyberLab-No_Grain.slang" alias0 = "" wrap_mode0 = "clamp_to_…

@soqueroeu

CyberLab Megatron miniLED 4K HDR Game BFI NES Composite Sharp PVM Edition Epic CAR9x8x W4.slangp

shaders = "12"
feedback_pass = "0"
shader0 = "shaders_slang/misc/shaders/img_mod_CyberLab.slang"
alias0 = ""
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/stock.slang"
alias1 = "StockPass"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
filter_linear1 = "false"
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/afterglow0.slang"
alias2 = "AfterglowPass"
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
filter_linear2 = "true"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/grade/pre-shaders-afterglow-grade.slang"
alias3 = "PrePass0"
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
filter_linear3 = "true"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "1.000000"
scale_type_y3 = "source"
scale_y3 = "1.000000"
shader4 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
alias4 = "NPass1"
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
filter_linear4 = "false"
float_framebuffer4 = "true"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "4.000000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
alias5 = ""
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
filter_linear5 = "true"
float_framebuffer5 = "true"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "0.500000"
scale_type_y5 = "source"
scale_y5 = "1.000000"
shader6 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
alias6 = ""
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
filter_linear6 = "true"
float_framebuffer6 = "false"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "1.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/custom-fast-sharpen.slang"
alias7 = "LinearizePass"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
filter_linear7 = "true"
float_framebuffer7 = "false"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "1.000000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
alias8 = "Pass1"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
filter_linear8 = "true"
float_framebuffer8 = "false"
srgb_framebuffer8 = "false"
scale_type_x8 = "viewport"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/hdr/shaders/crt-sony-megatron-source-pass.slang"
alias9 = "SourceSDR"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
filter_linear9 = "false"
float_framebuffer9 = "true"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/hdr/shaders/crt-sony-megatron-hdr-pass.slang"
alias10 = "SourceHDR"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
filter_linear10 = "false"
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "1.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/hdr/shaders/crt-sony-megatron.slang"
alias11 = ""
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
filter_linear11 = "false"
float_framebuffer11 = "false"
srgb_framebuffer11 = "false"
ia_GRAIN_STR = "1.000000"
ia_TOPMASK = "0.035000"
ia_BOTMASK = "0.032500"
ia_LMASK = "0.030000"
ia_RMASK = "0.015000"
cornersize = "0.001000"
PR = "0.000000"
PG = "0.000000"
PB = "0.000000"
AS = "0.000000"
g_crtgamut = "1.000000"
wp_temperature = "6504.000000"
g_CRT_sl = "0.000000"
g_vstr = "5.000000"
g_vpower = "0.050000"
cust_artifacting = "0.300000"
cust_fringing = "0.200000"
ntsc_scale = "1.025000"
ntsc_gamma = "0.975000"
ntsc_cscale = "1.450002"
ntsc_cscale1 = "1.450001"
ntsc_sharp = "-10.000000"
HSHARPNESS = "1.550000"
S_SHARP = "1.250000"
hcrt_max_nits = "630.000000"
hcrt_paper_white_nits = "630.000000"
hcrt_lcd_resolution = "0.000000"
hcrt_lcd_subpixel = "2.000000"
hcrt_crt_resolution = "2.000000"
hcrt_white_temperature_D65 = "5504.000000"
hcrt_saturation = "0.060000"
hcrt_gamma_in = "1.400001"
hcrt_v_cent = "-1.000000"
hcrt_red_scanline_min = "0.300000"
hcrt_red_scanline_max = "0.720000"
hcrt_green_scanline_min = "0.300000"
hcrt_green_scanline_max = "0.720000"
hcrt_blue_scanline_min = "0.300000"
hcrt_blue_scanline_max = "0.720000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT1_mipmap = "false"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT2 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT2_mipmap = "false"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT3 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_mipmap = "false"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT4 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_mipmap = "false"
SamplerLUT4_wrap_mode = "clamp_to_border"

[Cyber]

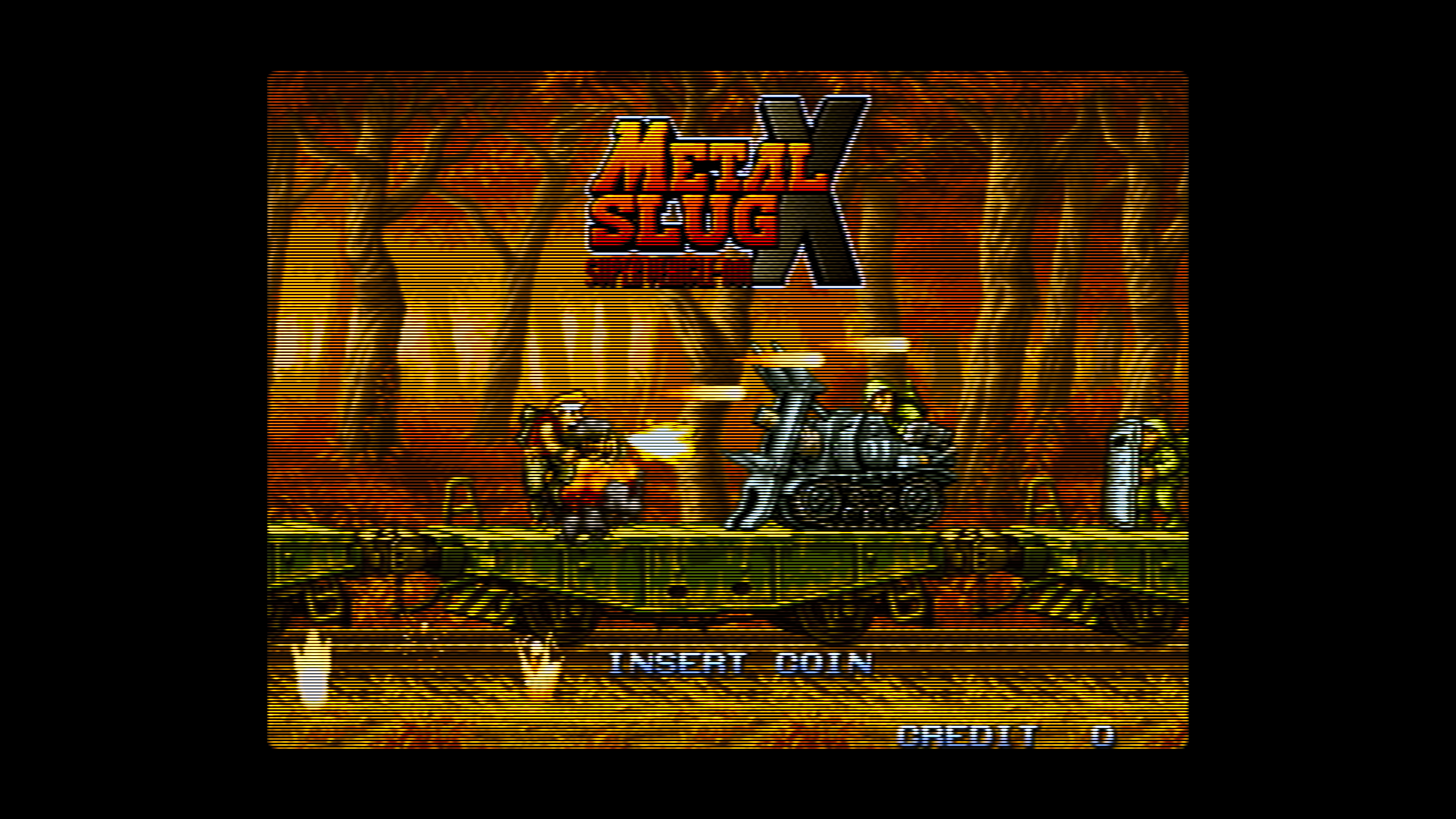

CyberLab Megatron miniLED 4K HDR Game BFI Arcade Pro Monitor Edition Epic CAR9x9x W4.slangp

shaders = "18"
feedback_pass = "0"
shader0 = "shaders_slang/misc/shaders/img_mod_CyberLab.slang"
alias0 = ""
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/edge-smoothing/xbr/shaders/support/linearize.slang"
alias1 = "XbrSource"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
filter_linear1 = "false"
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/edge-smoothing/xbr/shaders/xbr-lv2-multipass/xbr-lv2-pass0.slang"
alias2 = ""
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
filter_linear2 = "false"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/edge-smoothing/xbr/shaders/xbr-lv2-multipass/xbr-lv2-pass1.slang"
alias3 = ""
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
filter_linear3 = "false"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "2.000000"
scale_type_y3 = "source"
scale_y3 = "2.000000"
shader4 = "shaders_slang/edge-smoothing/xbr/shaders/support/b-spline-x.slang"
alias4 = ""
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
filter_linear4 = "false"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "0.500000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/edge-smoothing/xbr/shaders/support/b-spline-y.slang"
alias5 = ""
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
filter_linear5 = "false"
float_framebuffer5 = "false"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "0.500000"
shader6 = "shaders_slang/edge-smoothing/xbr/shaders/support/delinearize.slang"
alias6 = ""
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
filter_linear6 = "false"
float_framebuffer6 = "false"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "1.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/stock.slang"
alias7 = "StockPass"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
filter_linear7 = "false"
float_framebuffer7 = "false"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "1.000000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/afterglow0.slang"
alias8 = "AfterglowPass"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
filter_linear8 = "true"
float_framebuffer8 = "false"
srgb_framebuffer8 = "false"
scale_type_x8 = "source"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/grade/pre-shaders-afterglow-grade.slang"
alias9 = "PrePass0"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
filter_linear9 = "true"
float_framebuffer9 = "false"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
alias10 = "NPass1"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
filter_linear10 = "false"
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "4.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
alias11 = ""
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
filter_linear11 = "true"
float_framebuffer11 = "true"
srgb_framebuffer11 = "false"
scale_type_x11 = "source"
scale_x11 = "0.500000"
scale_type_y11 = "source"
scale_y11 = "1.000000"
shader12 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
alias12 = ""
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
filter_linear12 = "true"
float_framebuffer12 = "false"
srgb_framebuffer12 = "false"
scale_type_x12 = "source"
scale_x12 = "1.000000"
scale_type_y12 = "source"
scale_y12 = "1.000000"
shader13 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/custom-fast-sharpen.slang"
alias13 = "LinearizePass"
wrap_mode13 = "clamp_to_border"
mipmap_input13 = "false"
filter_linear13 = "true"
float_framebuffer13 = "false"
srgb_framebuffer13 = "false"
scale_type_x13 = "source"
scale_x13 = "1.000000"
scale_type_y13 = "source"
scale_y13 = "1.000000"
shader14 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
alias14 = "Pass1"
wrap_mode14 = "clamp_to_border"
mipmap_input14 = "false"
filter_linear14 = "true"
float_framebuffer14 = "false"
srgb_framebuffer14 = "false"
scale_type_x14 = "viewport"
scale_x14 = "1.000000"
scale_type_y14 = "source"
scale_y14 = "1.000000"
shader15 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron-source-pass.slang"
alias15 = "SourceSDR"
wrap_mode15 = "clamp_to_border"
mipmap_input15 = "false"
filter_linear15 = "false"
float_framebuffer15 = "true"
srgb_framebuffer15 = "false"
scale_type_x15 = "source"
scale_x15 = "1.000000"
scale_type_y15 = "source"
scale_y15 = "1.000000"
shader16 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron-hdr-pass.slang"
alias16 = "SourceHDR"
wrap_mode16 = "clamp_to_border"
mipmap_input16 = "false"
filter_linear16 = "false"
float_framebuffer16 = "true"
srgb_framebuffer16 = "false"
scale_type_x16 = "source"
scale_x16 = "1.000000"
scale_type_y16 = "source"
scale_y16 = "1.000000"
shader17 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron.slang"
alias17 = ""
wrap_mode17 = "clamp_to_border"
mipmap_input17 = "false"
filter_linear17 = "false"
float_framebuffer17 = "false"
srgb_framebuffer17 = "false"
ia_GRAIN_STR = "0.027000"
cornersize = "0.011000"
SMALL_DETAILS = "1.000000"
WP4 = "0.800000"
KA = "0.350000"
PR = "0.000000"
PG = "0.000000"
PB = "0.000000"
AS = "0.000000"
g_crtgamut = "1.000000"
g_CRT_sl = "0.000000"
g_vstr = "5.000000"
g_vpower = "0.050000"
cust_artifacting = "0.200000"
cust_fringing = "0.200000"
ntsc_cscale = "3.299998"
ntsc_cscale1 = "1.400002"
ntsc_sharp = "-10.000000"
hcrt_max_nits = "630.000000"
hcrt_paper_white_nits = "630.000000"
hcrt_expand_gamut = "1.000000"
hcrt_lcd_resolution = "0.000000"
hcrt_lcd_subpixel = "2.000000"
hcrt_crt_screen_type = "2.000000"
hcrt_crt_resolution = "2.000000"
hcrt_saturation = "0.100000"
hcrt_gamma_in = "1.790000"
hcrt_v_cent = "-1.000000"
hcrt_red_vertical_convergence = "-0.020000"
hcrt_green_vertical_convergence = "-0.010000"
hcrt_blue_vertical_convergence = "0.010000"
hcrt_red_scanline_min = "0.300000"
hcrt_red_scanline_max = "0.760000"
hcrt_green_scanline_min = "0.300000"
hcrt_green_scanline_max = "0.760000"
hcrt_blue_scanline_min = "0.300000"
hcrt_blue_scanline_max = "0.760000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT1_mipmap = "false"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT2 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT2_mipmap = "false"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT3 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_mipmap = "false"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT4 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_mipmap = "false"
SamplerLUT4_wrap_mode = "clamp_to_border"

CyberLab Megatron miniLED 4K HDR Game BFI Arcade Sharp Pro Monitor Edition Epic CAR9x9x W4.slangp

shaders = "18"
feedback_pass = "0"
shader0 = "shaders_slang/misc/shaders/img_mod_CyberLab.slang"
alias0 = ""
wrap_mode0 = "clamp_to_border"
mipmap_input0 = "false"
float_framebuffer0 = "false"
srgb_framebuffer0 = "false"
scale_type_x0 = "source"
scale_x0 = "1.000000"
scale_type_y0 = "source"
scale_y0 = "1.000000"
shader1 = "shaders_slang/edge-smoothing/xbr/shaders/support/linearize.slang"
alias1 = "XbrSource"
wrap_mode1 = "clamp_to_border"
mipmap_input1 = "false"
filter_linear1 = "false"
float_framebuffer1 = "false"
srgb_framebuffer1 = "false"
scale_type_x1 = "source"
scale_x1 = "1.000000"
scale_type_y1 = "source"
scale_y1 = "1.000000"
shader2 = "shaders_slang/edge-smoothing/xbr/shaders/xbr-lv2-multipass/xbr-lv2-pass0.slang"
alias2 = ""
wrap_mode2 = "clamp_to_border"
mipmap_input2 = "false"
filter_linear2 = "false"
float_framebuffer2 = "false"
srgb_framebuffer2 = "false"
scale_type_x2 = "source"
scale_x2 = "1.000000"
scale_type_y2 = "source"
scale_y2 = "1.000000"
shader3 = "shaders_slang/edge-smoothing/xbr/shaders/xbr-lv2-multipass/xbr-lv2-pass1.slang"
alias3 = ""
wrap_mode3 = "clamp_to_border"
mipmap_input3 = "false"
filter_linear3 = "false"
float_framebuffer3 = "false"
srgb_framebuffer3 = "false"
scale_type_x3 = "source"
scale_x3 = "2.000000"
scale_type_y3 = "source"
scale_y3 = "2.000000"
shader4 = "shaders_slang/edge-smoothing/xbr/shaders/support/b-spline-x.slang"
alias4 = ""
wrap_mode4 = "clamp_to_border"
mipmap_input4 = "false"
filter_linear4 = "false"
float_framebuffer4 = "false"
srgb_framebuffer4 = "false"
scale_type_x4 = "source"
scale_x4 = "0.500000"
scale_type_y4 = "source"
scale_y4 = "1.000000"
shader5 = "shaders_slang/edge-smoothing/xbr/shaders/support/b-spline-y.slang"
alias5 = ""
wrap_mode5 = "clamp_to_border"
mipmap_input5 = "false"
filter_linear5 = "false"
float_framebuffer5 = "false"
srgb_framebuffer5 = "false"
scale_type_x5 = "source"
scale_x5 = "1.000000"
scale_type_y5 = "source"
scale_y5 = "0.500000"
shader6 = "shaders_slang/edge-smoothing/xbr/shaders/support/delinearize.slang"
alias6 = ""
wrap_mode6 = "clamp_to_border"
mipmap_input6 = "false"
filter_linear6 = "false"
float_framebuffer6 = "false"
srgb_framebuffer6 = "false"
scale_type_x6 = "source"
scale_x6 = "1.000000"
scale_type_y6 = "source"
scale_y6 = "1.000000"
shader7 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/stock.slang"
alias7 = "StockPass"
wrap_mode7 = "clamp_to_border"
mipmap_input7 = "false"
filter_linear7 = "false"
float_framebuffer7 = "false"
srgb_framebuffer7 = "false"
scale_type_x7 = "source"
scale_x7 = "1.000000"
scale_type_y7 = "source"
scale_y7 = "1.000000"
shader8 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/afterglow0.slang"
alias8 = "AfterglowPass"
wrap_mode8 = "clamp_to_border"
mipmap_input8 = "false"
filter_linear8 = "true"
float_framebuffer8 = "false"
srgb_framebuffer8 = "false"
scale_type_x8 = "source"
scale_x8 = "1.000000"
scale_type_y8 = "source"
scale_y8 = "1.000000"
shader9 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/grade/pre-shaders-afterglow-grade.slang"
alias9 = "PrePass0"
wrap_mode9 = "clamp_to_border"
mipmap_input9 = "false"
filter_linear9 = "true"
float_framebuffer9 = "false"
srgb_framebuffer9 = "false"
scale_type_x9 = "source"
scale_x9 = "1.000000"
scale_type_y9 = "source"
scale_y9 = "1.000000"
shader10 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass1.slang"
alias10 = "NPass1"
wrap_mode10 = "clamp_to_border"
mipmap_input10 = "false"
filter_linear10 = "false"
float_framebuffer10 = "true"
srgb_framebuffer10 = "false"
scale_type_x10 = "source"
scale_x10 = "4.000000"
scale_type_y10 = "source"
scale_y10 = "1.000000"
shader11 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass2.slang"
alias11 = ""
wrap_mode11 = "clamp_to_border"
mipmap_input11 = "false"
filter_linear11 = "true"
float_framebuffer11 = "true"
srgb_framebuffer11 = "false"
scale_type_x11 = "source"
scale_x11 = "0.500000"
scale_type_y11 = "source"
scale_y11 = "1.000000"
shader12 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/ntsc/ntsc-pass3.slang"
alias12 = ""
wrap_mode12 = "clamp_to_border"
mipmap_input12 = "false"
filter_linear12 = "true"
float_framebuffer12 = "false"
srgb_framebuffer12 = "false"
scale_type_x12 = "source"
scale_x12 = "1.000000"
scale_type_y12 = "source"
scale_y12 = "1.000000"
shader13 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/custom-fast-sharpen.slang"
alias13 = "LinearizePass"
wrap_mode13 = "clamp_to_border"
mipmap_input13 = "false"
filter_linear13 = "true"
float_framebuffer13 = "false"
srgb_framebuffer13 = "false"
scale_type_x13 = "source"
scale_x13 = "1.000000"
scale_type_y13 = "source"
scale_y13 = "1.000000"
shader14 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/crt-guest-advanced-ntsc-pass1.slang"
alias14 = "Pass1"
wrap_mode14 = "clamp_to_border"
mipmap_input14 = "false"
filter_linear14 = "true"
float_framebuffer14 = "false"
srgb_framebuffer14 = "false"
scale_type_x14 = "viewport"
scale_x14 = "1.000000"
scale_type_y14 = "source"
scale_y14 = "1.000000"
shader15 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron-source-pass.slang"
alias15 = "SourceSDR"
wrap_mode15 = "clamp_to_border"
mipmap_input15 = "false"
filter_linear15 = "false"
float_framebuffer15 = "true"
srgb_framebuffer15 = "false"
scale_type_x15 = "source"
scale_x15 = "1.000000"
scale_type_y15 = "source"
scale_y15 = "1.000000"
shader16 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron-hdr-pass.slang"
alias16 = "SourceHDR"
wrap_mode16 = "clamp_to_border"
mipmap_input16 = "false"
filter_linear16 = "false"
float_framebuffer16 = "true"
srgb_framebuffer16 = "false"
scale_type_x16 = "source"
scale_x16 = "1.000000"
scale_type_y16 = "source"
scale_y16 = "1.000000"
shader17 = "shaders_slang/hdr_crt-sony-megatron-5.7_CBL_mod/shaders/crt-sony-megatron.slang"
alias17 = ""
wrap_mode17 = "clamp_to_border"
mipmap_input17 = "false"
filter_linear17 = "false"
float_framebuffer17 = "false"
srgb_framebuffer17 = "false"
ia_GRAIN_STR = "0.027000"
cornersize = "0.011000"
SMALL_DETAILS = "1.000000"
WP4 = "0.800000"
KA = "0.350000"
PR = "0.000000"
PG = "0.000000"
PB = "0.000000"
AS = "0.000000"
g_crtgamut = "1.000000"
g_CRT_sl = "0.000000"
g_vstr = "5.000000"
g_vpower = "0.050000"
cust_artifacting = "0.200000"
cust_fringing = "0.200000"
ntsc_scale = "1.225000"
ntsc_cscale = "3.299998"
ntsc_cscale1 = "1.400002"
ntsc_sharp = "-10.000000"
hcrt_max_nits = "630.000000"
hcrt_paper_white_nits = "630.000000"
hcrt_expand_gamut = "1.000000"
hcrt_lcd_resolution = "0.000000"
hcrt_lcd_subpixel = "2.000000"
hcrt_crt_screen_type = "2.000000"
hcrt_crt_resolution = "2.000000"
hcrt_saturation = "0.100000"
hcrt_gamma_in = "1.790000"
hcrt_v_cent = "-1.000000"
hcrt_red_vertical_convergence = "-0.020000"
hcrt_green_vertical_convergence = "-0.010000"
hcrt_blue_vertical_convergence = "0.010000"
hcrt_red_scanline_min = "0.300000"
hcrt_red_scanline_max = "0.760000"
hcrt_green_scanline_min = "0.300000"
hcrt_green_scanline_max = "0.760000"
hcrt_blue_scanline_min = "0.300000"
hcrt_blue_scanline_max = "0.760000"
textures = "SamplerLUT1;SamplerLUT2;SamplerLUT3;SamplerLUT4"
SamplerLUT1 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT1_mipmap = "false"
SamplerLUT1_wrap_mode = "clamp_to_border"
SamplerLUT2 = "shaders_slang/reshade/shaders/LUT/16.png"
SamplerLUT2_mipmap = "false"
SamplerLUT2_wrap_mode = "clamp_to_border"
SamplerLUT3 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/lut/nec-lut.png"
SamplerLUT3_mipmap = "false"
SamplerLUT3_wrap_mode = "clamp_to_border"
SamplerLUT4 = "shaders_slang/crt-guest-advanced-2024-02-29-release1/shaders/guest/advanced/lut/ntsc-lut.png"
SamplerLUT4_mipmap = "false"
SamplerLUT4_wrap_mode = "clamp_to_border"

[PU786]

LG Display eliminates colour fringing with new RGB stripe OLED panel

This should basically be what you’ve been waiting for? : ) 4k, 240hz, RGB subpixel layout no white dompixel and not even “at least quadrilateral layout” or “damn triangular layout”, should just be win/win/win right?

VGA mode (the setting from Guest’s CRT Shader) should look amazing on a such a fine pixel density too at 27 or 32 inches. From what I’ve been told 4K needs to be a minimum 32 inches, but I also have no hands on experience looking at 480p shaders to check.

[Cyber]

@PU786

This should basically be what you’ve been waiting for? : ) 4k, 240hz, RGB subpixel layout no white dompixel and not even “at least quadrilateral layout” or “damn triangular layout”, should just be win/win/win right?

Yeah, I saw this short about it a few days ago:

https://vm.tiktok.com/ZMD2X9H2f/

It was definitely on the roadmap.

OLED subpixels. How do they work?

I don’t have answers to your questions, I just wanted to point out that, as far as I know, this is the third subpixel layout from LG. The RWBG layout they’ve been using in their TV panels. (And some older monitor panels?) The RGWB layout in some of the new monitor panels. Now this BWRG layout in the G5 panel. They are supposedly working on RGB (no white) layout panels for future monitors (source here, all the way at the bottom). Is this summary missing anything?

This part seems interesting from the article you shared:

The panel also has an increased aperture ratio, which means that more of the pixel area emits light than before in order to enhance brightness – necessary due to the elimination of the white sub-pixels.

This part doesn’t auger well though:

LG Display said the Tandem WOLED sub-brand refers to displays that have the extra white light source in their pixel structure to enhance brightness, and will cover its larger panel lineup for televisions and monitors. Meanwhile, Tandem OLED displays lack the white subpixel and primarily cover medium and smaller panels used in tablets, laptops, smartphones and car infotainment systems.

However, the new RGB stripe OLED panel is clearly aimed at monitors

I wonder how bright these things are actually going to be. MLA would also be a welcome addition.

I’ve moved on from OLED for CRT Emulation primarily because I know how much better a brighter display can do the job and miniLED also does an excellent job on the blacks like the borders as well and there’s no burn-in risk.

I also moved on from gaming on monitors almost 2 decades ago. My current dream displays for CRT shader emulation are the TCL QM851G, TCL QM9K and TCL QM8K and these are TVs that one can actually buy today. They all trounce the LG G5 - the brightest OLED display today in peak and especially in sustained brightness, which believe it or not is one of the most important pillars of CRT Emulation, if not the most important.

[Cyber]

CyberLab Megatron miniLED 4K HDR Game BFI SNES Composite Sharp PVM Edition Epic W4.slangp

[Cyber]

Here are some nice CRT pics:

https://www.reddit.com/r/crtgaming/s/z0hvcyvAsp

https://www.reddit.com/r/crtgaming/s/SV8HJwRFnM

[Cyber]

[Cyber]

For those who say, they don’t know which preset to choose or they’re so many, this is why I say, read the thread.

CyberLab Megatron miniLED 4K HDR Game BFI SNES Composite PVM Edition Epic W5.slangp

[Cyber]

CyberLab Megatron V2 Presets incoming…

[Cyber]

No More Blur | G-Sync Pulsar

G-Sync Pulsar Tested - A Massive Leap in LCD Clarity

Nvidia G-Sync Pulsar: The Biggest Leap in Gaming Display Technology For Years
