Tis why I feel comfortable making the posts I’ve been making here yes. I really do appreciate it because this place is very chill and feedback friendly.
I do a lot more reading here than posting.
3 Likes
Yes, but I was speaking of 60hz.
If it works good on 120hz (maximum, supported “temporal resolution”, (in theory, since I cannot even afford more due to gpu power)), then I’ll leave it there; question is if it is really worth it, since the simpler path should be the choice for anything from 120hz up imho.
Again, we’re hijacking this thread, sorry @guest.r
2 Likes
Is there a single setting to raise the brightness? I’m using mask 6, BGR mask layout, and NTSC Artifacting/Fringing set to 0 when not required for dithering. Brightness is fine when using mask 0, but it’s rather dark with mask 6. Please let me know if there are better recommended settings. (1080p OLED, crt-guest-advanced-ntsc)
1 Like
There are more parameters, which increase brightness. Just look under [ BRIGHTNESS SETTINGS ] for:
- Gamma correct
- Complementary Gamma correct
- Bright Boost Dark Pixels
- Bright Boost Bright Pixels
There are even more brightness settings at the beginning:
- Brightness Adjustment
- Gamma Correct Adjustment
These two also influence scanline dynamics, because brightness is adjusted before scanline calculations.
At the end of parameter section there is
- Post Brightness
Which adjusts brightness at the end of the shader effects.
There are other means to influence brightness, like mask strength controls etc. so this shouldn’t be a challenge too hard.
3 Likes
Much appreciated clarification, and thanks for the hard work on CRT Guest Advanced and its variants! ∠(‘-‘ )
2 Likes
New Release Version (2026-07-21-r1):
Notable changes:
- Parameter for 3D Curvature effect added
- Small Afterglow tail tweak
Download Link:
https://mega.nz/file/QsZhHK6B#PftyITPsS9R7FqtBLMQuVz3O-QonyfMaMZIljOSrQWc
13 Likes
New Release Version (2026-07-23-r1):
Notable changes:
- 3D Curvature effect slight tweak
- PAL shaders pal pass 1 removed, since it was there only for the (hypothetical) temporal delay line effect. Now all texture bindings in remaining passes are
Sourcebased, which makes separate usage much simpler. - PAL Delay Line extra parameter option added (replaces removed temporal delay line effect).
- All 6 mask layouts are included now through a new parameter:
GBR, RGB, BRG | GRB, RBG, BGR. - Slot mask setup honors a simple fact that known slot mask CRT TVs used the exact RGB sequence. So the shader slot mask sequence always starts with ‘R’ regardless of mask layout sequence or shift.
Download Link:
https://mega.nz/file/k9ZwlQLS#MOC9RbHMJMBLEXP0-qd1TrgwPj-3MvAnSWjX9wFRV2w
11 Likes

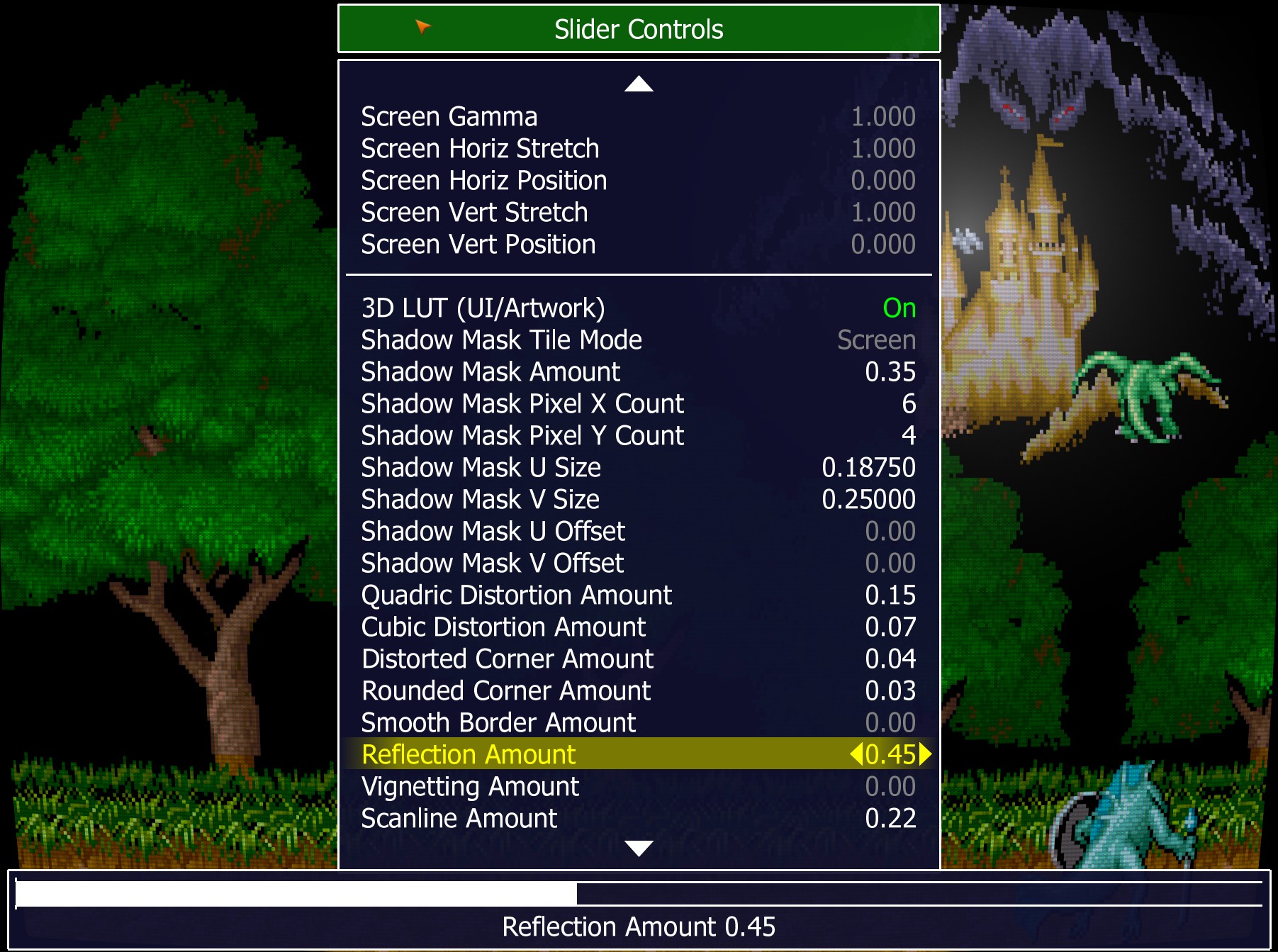

Hey Guest, in a future version, will it be possible to add a reflection effect to the screen to improve the curvature simulation and the feeling of being in front of a CRT screen, like MAME does with HLSL?
2 Likes
In the meantime you can use Mega Bezel or uBorder.
4 Likes
Hi everyone! Does anyone have any recommendations for settings to achieve a convincing PVM look? I know I could just use CyberLab’s presets, and I actually do when possible. However, I’m currently using ShaderGlass with a few standalone emulators that don’t support RetroArch shaders, so I’m looking for settings that can get me as close as possible to a good PVM appearance, preferably with the highest TVL possible for a 55-inch 4K TV (OLED C5). Any suggestions would be greatly appreciated!
2 Likes
ShaderGlass supports RetroArch Shaders. There’s also the WindowCast Core which you can use to capture any window and run it through RetroArch’s shader pipeline.
There’s also good ole Reshade.
1 Like

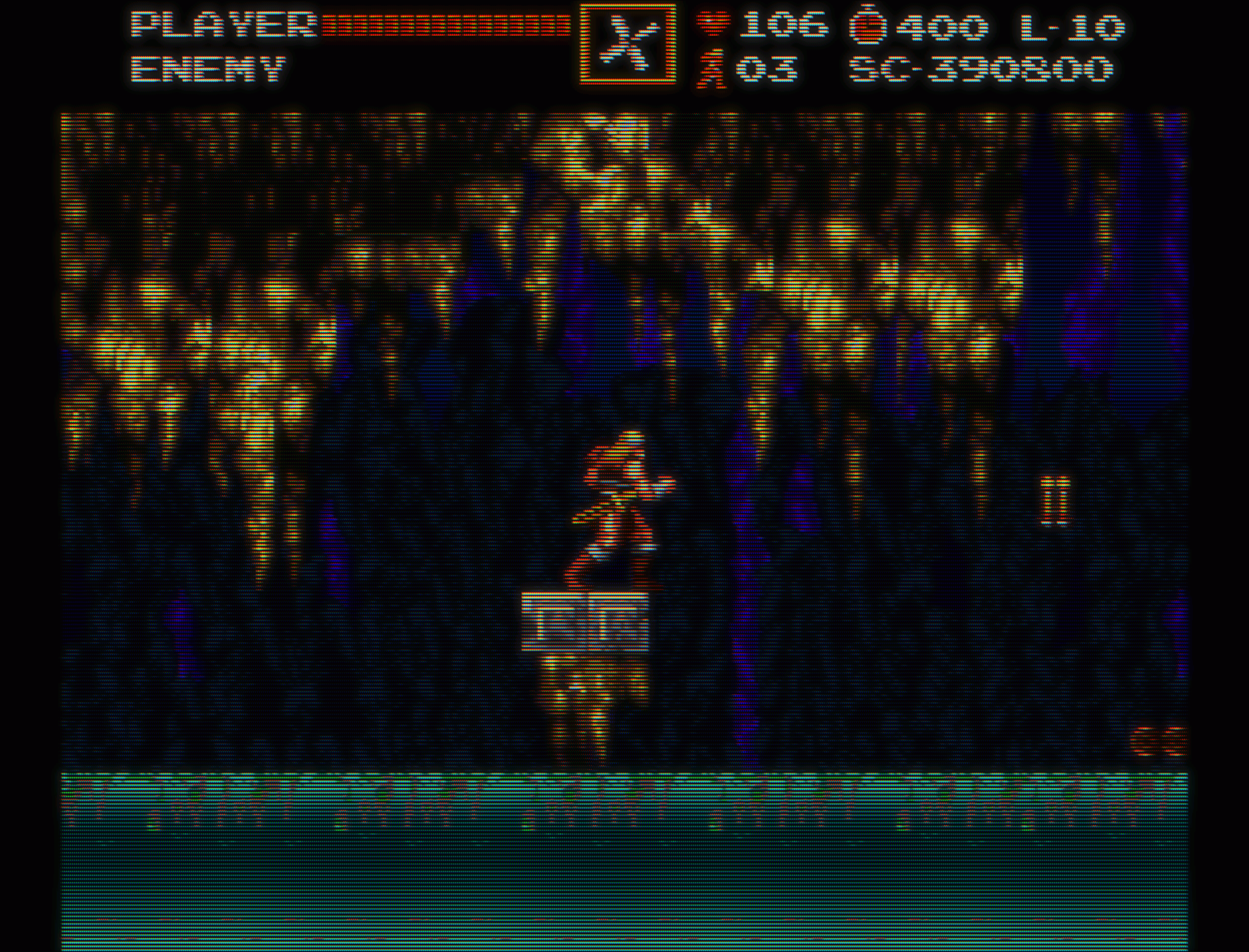

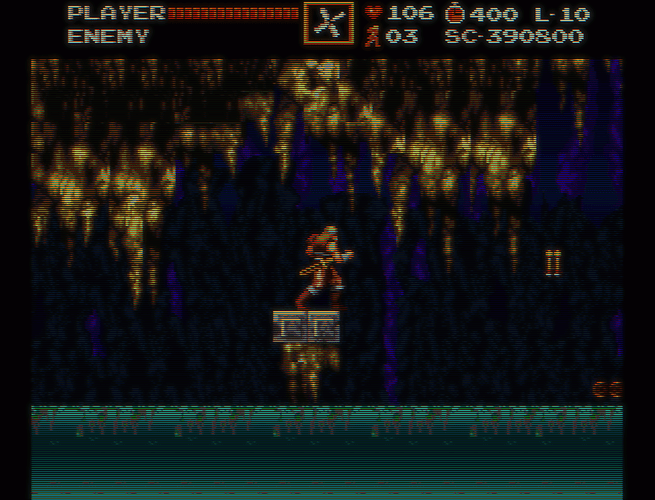

Sony PVM look should be quite doable, especially on a 4k display. I’m posting a 1440p screenie, TVL on 2160p should be quite higher.
Here are the parameters for crt-guest-advanced.slangp:
bloom = "0.700000"
bloom_dist = "1.000000"
bmask1 = "-0.200000"
gamma_c2 = "1.300000"
clips = "0.250000"
gsl = "2.000000"
scanline1 = "3.000000"
scanline2 = "14.000000"
beam_min = "2.500000"
beam_max = "1.500000"
scans = "2.000000"
h_sharp = "4.000001"
s_sharp = "1.000000"
smart_ei = "0.250000"
shadowMask = "6.000000"
maskstr = "1.000000"
maskboost = "1.250000"
mask_gamma = "1.700001"
mclip = "0.300000"
pr_scan = "1.000000"
edgemask = "0.400000"
deconrr = "0.750000"
deconrb = "-0.500000"
deconrry = "1.000000"
deconrby = "-0.500000"
decons = "1.500000"
The setup is a bit conservative, but it’s a base for anything more personalized.
4 Likes
Yeah, I noticed that ShaderGlass supports RetroArch shaders. Unfortunately, I haven’t been able to get satisfying HDR results with it, so I decided to stick with Guest Advanced instead.
Now I’m just trying to figure out how to configure Guest Advanced to achieve a high-TVL PVM look. With Megatron, it was so easy to just set it to something like 800–1000 TVL and it looked great.
If anyone has recommendations for Guest Advanced settings that get close to that kind of high-end PVM appearance, I’d really appreciate it.
1 Like
I’m playing Shadow Hearts, and I absolutely loved the result. It looks gorgeous. Thanks for the setup!
Out of curiosity, what would you consider a non-conservative setup?
1 Like
Thanks for trying the setup. A less conservative setup could go by reducing mask strength (to provide an even more high TVL feel) or using more dense masks (like 0, 5 or 9).
It could also add more scanline saturation, combined with stronger (de)convergence. The look could also be shifted a bit towards the BVM area.
I had to resort to web screenshots for a PVM look, there were different models and screen sizes involved, so the parameter combo looks more like a middle ground.
I hope I’m not taking too much of your time with all these questions. Since you mentioned that “the look could also be shifted a bit towards the BVM area,” I was wondering if you have any suggestions for a setup that’s specifically aimed at achieving a convincing BVM look. I’d be really interested to hear what settings you would use.
This is mostly out of curiosity, but more broadly, what do you think current CRT shaders are still missing to make them truly convincing? Are there any characteristics of real CRTs that you feel today’s shaders still don’t capture accurately?
1 Like
they still missing some, see Crt effects list and its replies
anyway, current CRT shaders are indeed getting better and better by the time
2 Likes
Here are parameters for a semi-conservative BVM look and crt-guest-advanced.slangp:
FINE_BLOOM = "3.000000"
glow = "0.000000"
mask_bloom = "0.500000"
gamma_c2 = "1.300000"
clips = "0.200000"
gsl = "1.000000"
scanline1 = "2.500000"
scanline2 = "36.000000"
beam_min = "2.250000"
beam_max = "1.600000"
scans = "1.000000"
scan_falloff = "0.500000"
h_sharp = "7.999998"
s_sharp = "1.200000"
smart_ei = "0.150000"
shadowMask = "9.000000"
maskstr = "0.700000"
mcut = "0.700000"
maskboost = "1.300000"
mzoom_sh = "0.250000"
mask_gamma = "1.000000"
mclip = "0.400000"
deconrr = "0.500000"
deconrb = "0.500000"
deconrry = "0.500000"
deconrby = "-0.500000"
decons = "1.500000"
Anyway, BVM presets usually need a 4k display to manifest properly, mostly scanlines can develop much better there.
