Welcome to RetroGames4K’s thread. Here I will post every screenshot, gameplays and custom settings from Mega Bezel and other Retroarch’s shaders. My main objective is to post screenshots from my custom settings and hope you enjoy it.

Here are my custom settings. This setting is based on my 14" CRT Sanyo CE14AT08-C These images are real photos taken from my Sanyo CRT for comparison purposes:

These custom shaders are specially designed for 4K, it’s tested on a LCD LG RGB IPS 4K monitor. I don’t know how this setting is going to look on 1080p or if it’s going to work. I will update more settings on the time. I recommend to use Retroarch version 1.15 and Mega Bezel V1.14.0_2023-04-15.

Extract the rar file and put the settings inside the shaders folder.

Added 1080p Settings 24-06-2023.

:rotating_light:Notice!:rotating_light:These 1080p settings are for an RGB monitor like mine, so it’s already set to Mask layout 1. In case you have a BGR monitor, you have to set Mask layout to 0:

IMG_20230702_164315
IMG_20230702_1643152126×573 135 KB

Mask layout 1 for RGB monitors:

Mask layout 0 for BGR monitors:

:rotating_light: Updated 4K Super Nintendo Settings 2023-08-14 :rotating_light:

:rotating_light: Added Mega Drive, Neo Geo, Saturn, PS1 224p on a single file 2023-08-14. :rotating_light:

Here is the pack: The password to unzip is: www.youtube.com/RetroGames4K

Download link:

5 Likes
Mega Bezel Reflection Shader! - Feedback and Updates
Shader Challenge: composite video on a PVM
Need help. Why are most CRT Shaders so blurry or dark or yellowish?
My PC just died
Calling all CRT owners: photos please!
Please show off what crt shaders can do!
Mega Bezel Reflection Shader! - Feedback and Updates
Sonkun’s crt-guest-advanced-hd presets thread
A Scalefx preset to handle transparency
Mega Bezel Reflection Shader! - Feedback and Updates
Mega Bezel Reflection Shader! - Feedback and Updates
Please show off what crt shaders can do!
I need simple help
#2

Here are my first screenshots from Mega Bezel…

Chiky Chiky Boys

Twin bee
Twin bee1807×1599 150 KB
Vic Viper
Vic Viper2889×1126 451 KB
IMG_20230118_141704
IMG_20230118_141704459×753 501 KB
IMG_20230118_141421
IMG_20230118_141421448×781 541 KB
IMG_20230118_032832
IMG_20230118_032832449×778 445 KB

5 Likes
#3

Congratulations on your new thread!

These are some of the best and cleanest CRT Shader presets I’ve seen! Keep up the good work! You’ve definitely got the eye for it!

1 Like
#4

Thank you :grinning:. I will post the best ones. The thing that was missing and it’s been hard for me has been the brightness and gamma, but now I think I’ve got it. All thanks for this community, with the help of all of you, this is been possible… :grin:

1 Like
#5

Do consider sharing your preset settings with the community as well at some point. It’s your choice though. Just thinking that they look pretty definitive and others can benefit as well by just plugging in the values or loading their favorite RetroGames4K presets.

2 Likes
#6

Rastan at it’s full potential :crazy_face:

3 Likes
#7

I will post it soon. Want to make sure everything is alright. Also I will make a 32 bit preset por Ps1 and Sega Saturn presets. Soon, if everything is ok I will share them. :grinning:

1 Like
#8

Here are some more screenshots. I’ve optimized brightness, I think is perfect now. At last!:sweat_smile: IMG_20230120_045241 IMG_20230120_045142

4 Likes
#9

2 Likes
#10

Screenshot and gameplay of the game Neo Turf Masters from Neo Geo

Ultra Smooth RGB Mode…

2 Likes
#11

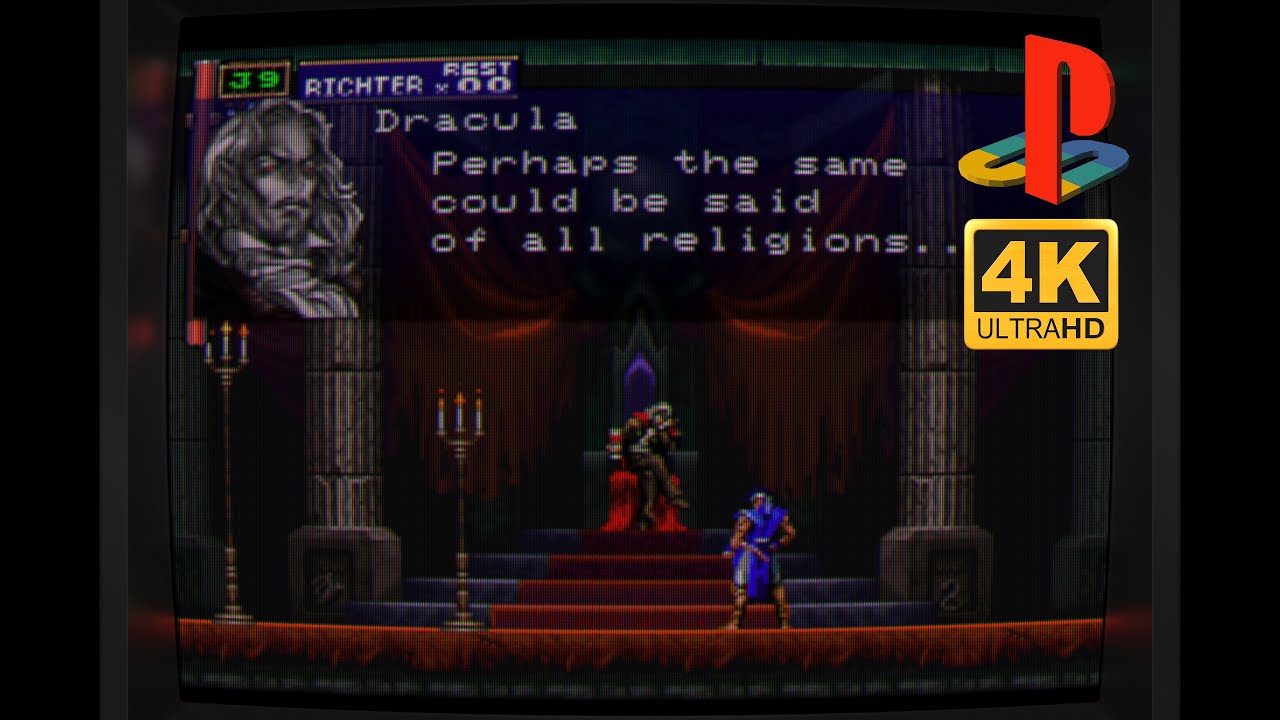

Realistic PS1 custom setting…
